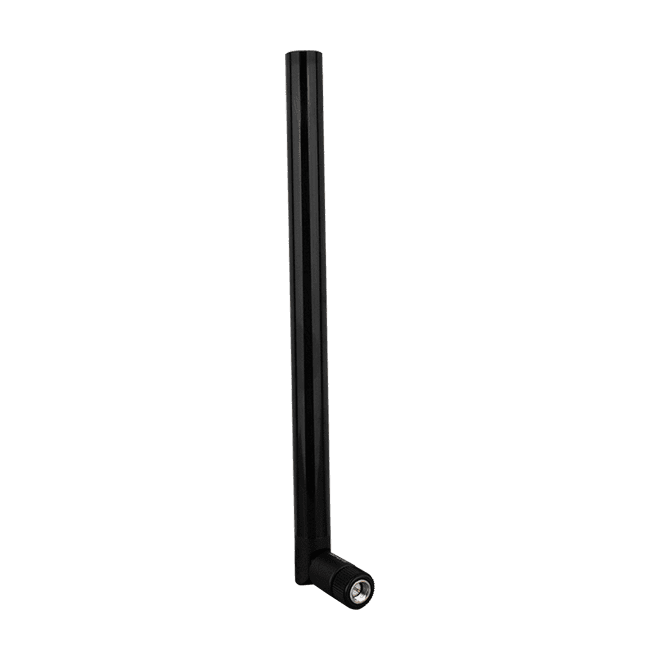

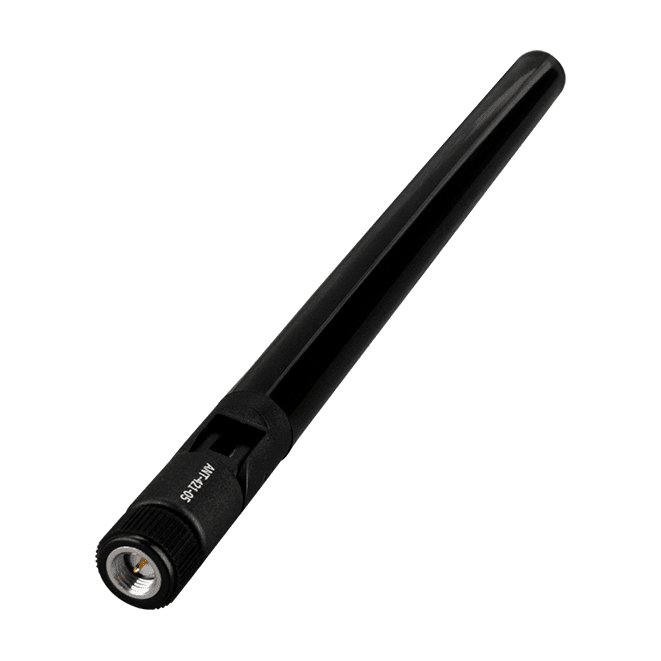

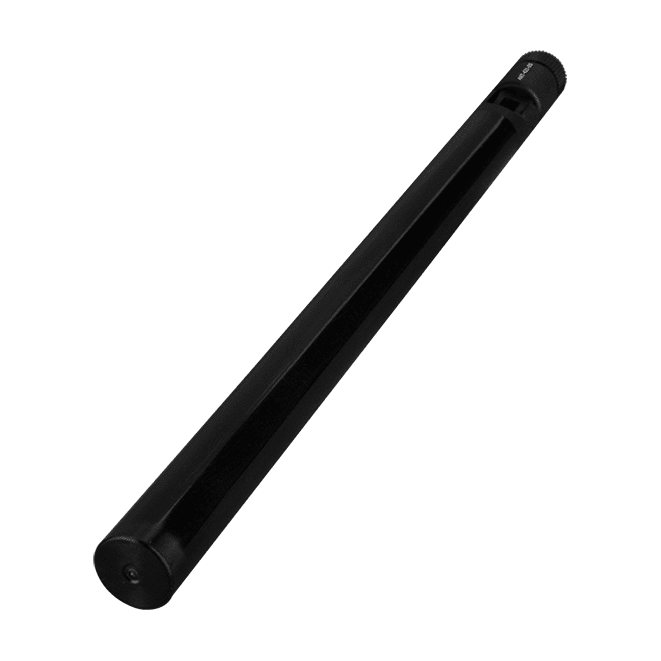

ANT-421-05 4G LTE Omni-Directional Antenna, 5 dBi, SMA Male Plug
ANT-421-05 is a 5 dBi omni-directional dipole antenna with an SMA male plug connector, covering 2G, 3G and 4G LTE bands from 698 to 2690 MHz.
- 5 dBi omni-directional dipole antenna with SMA male (plug) connector
- Covers 2G GSM/GPRS (850/900/1800/1900 MHz), 3G WCDMA (850/1900/2100 MHz) and 4G LTE (800/850/900/1800/2100/2600 MHz) bands
- Frequency bands from 698~960 MHz, 1710~2110 MHz and 2310~2690 MHz
- Gain of 1.5 dBi at 698~960 MHz, 4.0 dBi at 1710~2110 MHz, 5.0 dBi at 2110~2500 MHz and 3.5 dBi at 2500~2690 MHz
- Compact design measuring 207 mm x 13 mm, weighing 32.5 ± 2 g
- Operating temperature -30 °C ~ +80 °C
321,31 kr per st.
| 1–9 st. | 321,31 kr | |
|---|---|---|
| 10–30 st. | 310,23 kr | −3 % |
| 31+ st. | 310,23 kr | −3 % |
Produktinformation "ANT-421-05 4G LTE Omni-Directional Antenna, 5 dBi, SMA Male Plug"
The ANT-421-05 is an omni-directional dipole antenna for cellular communication, with an SMA male (plug) connector. It is rated at 5 dBi and covers the 2G GSM/GPRS, 3G WCDMA and 4G LTE bands across the 698~960 MHz, 1710~2110 MHz and 2310~2690 MHz ranges.
Gain varies across the band. The source data lists 1.5 dBi at 698~960 MHz, 4.0 dBi at 1710~2110 MHz, 5.0 dBi at 2110~2500 MHz and 3.5 dBi at 2500~2690 MHz, so engineers should check the gain figure for the frequencies their deployment uses.
At 207 mm x 13 mm and 32.5 ± 2 g, the antenna is compact and light. It is specified for an operating temperature of -30 °C ~ +80 °C and a storage temperature of -30 °C ~ +85 °C. The product is RoHS and WEEE certified.
Applications
- Cellular communication using 2G GSM/GPRS, 3G WCDMA and 4G LTE networks
| Product type: | Antenna |
|---|---|
| Interface: | SMA Male (Plug) |
| Operating temperature: | -30 ~ +80 °C |
Specifikationer
| Mechanical | |
|---|---|
| Dimensions (mm) | 207 mm x 13 mm |
| Weight | 32.5 ± 2 g |
| Environment | |
| Operating Temperature | -30 °C ~ +80 °C |
| Storage Temperature | -30 °C ~ +85 °C |
| Antenna | |
| Type | Dipole |
| Connector | SMA Male (Plug) |
| Gain (dBi) | 1.5 dBi @ 698~960 MHz 4.0 dBi @ 1710~2110 MHz 5.0 dBi @ 2110~2500 MHz 3.5 dBi @ 2500~2690 MHz |
| Band | 698~960MHz 1710~2110MHz 2310~2690MHz |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
