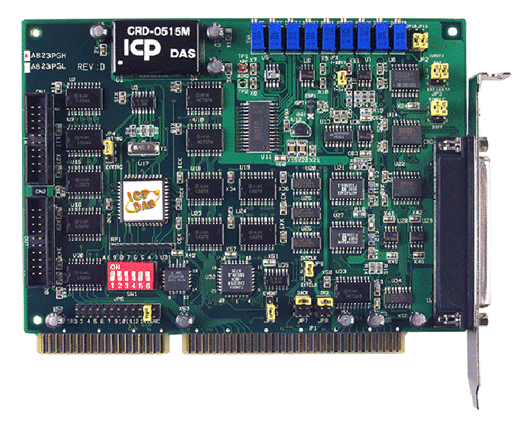

A-823PGH/S ISA Bus 125 kS/s 16-ch 12-bit Multifunction DAQ Board
12-bit ISA bus multifunction DAQ board with 16 single-ended or 8 differential analog inputs, two 12-bit analog outputs, 16 digital inputs and 16 digital outputs, sampling up to 125 kS/s.
- 16 single-ended or 8 differential 12-bit analogue input channels
- Maximum sampling rate of 125 kS/s
- Two 12-bit analogue output channels with selectable voltage ranges
- Software-programmable gain of 0.5 to 1000 on the PGH variant
- 16 digital inputs and 16 digital outputs
- Software, pacer, external and event trigger modes
4 697,71 kr per st.
| 1–9 st. | 4 697,71 kr | |
|---|---|---|
| 10–30 st. | 4 564,75 kr | −3 % |
| 31+ st. | 4 465,04 kr | −5 % |
Produktinformation "A-823PGH/S ISA Bus 125 kS/s 16-ch 12-bit Multifunction DAQ Board"
A-823PGH/S is a PC/AT compatible ISA bus data acquisition board that combines analogue input, analogue output and digital I/O on a single card. It suits engineers who need to capture fast analogue signals and control or monitor digital lines from one slot.
The analogue inputs can be configured as 16 single-ended or 8 differential channels, with 12-bit resolution and a maximum sampling rate of 125 kS/s. The PGH variant offers software-programmable gains of 0.5, 1, 5, 10, 50, 100, 500 and 1000. Two 12-bit analogue output channels support several voltage ranges, including unipolar and bipolar settings with an external reference option.
Acquisition can be started by software, pacer, external or event triggers, and data can be moved by polling, interrupt or DMA. The board also provides 16 DI and 16 DO channels, with a 37-pin D-Sub connector for field wiring.
Applications
- Signal analysis
- Industrial automation
- Laboratory automation
- Sensor interface
- FFT and frequency analysis
- Transient analysis
- Production test
- Process control
| Product type: | DAQ board |
|---|---|
| Interface: | ISA Bus |
| Digital inputs: | 16 |
| Digital outputs: | 16 |
| Analog inputs: | 16 |
| Analog outputs: | 2 |
| Ports: | 37-pin D-Sub |
