A-823PGH ISA Bus 16-ch 12-bit Multifunction DAQ Board, 125 kS/s
ISA bus multifunction DAQ board for PC/AT systems, with 16 single-ended or 8 differential 12-bit analogue inputs at up to 125 kS/s, two 12-bit analogue outputs and 16 DI/16 DO.
- 12-bit A/D converter with 16 single-ended or 8 differential input channels
- Sampling rate up to 125 k/s
- Software programmable gain of 0.5 to 1000 on the A-823PGH (high gain version)
- Two 12-bit AO channels with 0 ~ 5 V, 0 ~ 10 V, 0 ~ Ext Ref, +/- 5 V, +/- 10 V and +/- Ext Ref ranges
- Software, pacer, external and event A/D trigger modes
- Polling, interrupt and DMA data transfer modes
4 132,65 kr per st.
| 1–9 st. | 4 132,65 kr | |
|---|---|---|
| 10–30 st. | 4 010,78 kr | −3 % |
| 31+ st. | 3 933,22 kr | −5 % |
Produktinformation "A-823PGH ISA Bus 16-ch 12-bit Multifunction DAQ Board, 125 kS/s"

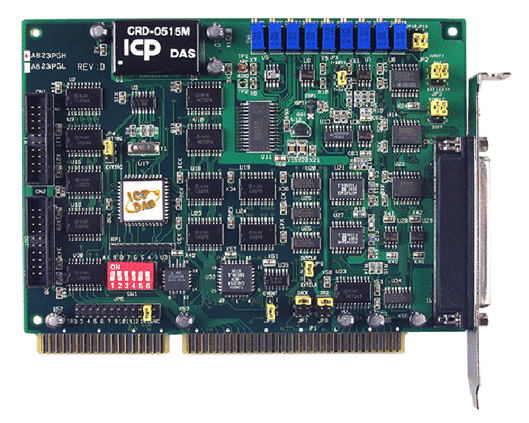

A-823PGH CR is a 12-bit multifunction analogue and digital I/O board for PC/AT compatible computers with an ISA bus. It combines a 16-channel analogue input section, two analogue output channels, and 16 digital inputs and 16 digital outputs on a single card, which suits engineers who need mixed signal acquisition and control in one slot.
The analogue inputs can be configured as 16 single-ended or 8 differential channels, and the A-823PGH variant offers a high programmable gain set from 0.5 to 1000. Acquisition supports software, pacer, external and event triggering, with data transfer by polling, interrupt or DMA. DMA level (1 or 3) and interrupt line (between 3 and 15) are set by jumper.
The board ships with one CA-4002 D-Sub connector and uses a 37-pin D-Sub connector on the card. It is listed with CE, UKCA, RoHS and WEEE certification.
Applications
- Signal analysis
- Industrial automation
- Laboratory automation
- Sensor interface
- FFT & frequency analysis
- Transient analysis
- Production test
- Process control
| Product type: | DAQ board |
|---|---|
| Interface: | ISA Bus |
| Digital inputs: | 16 |
| Digital outputs: | 16 |
| Analog inputs: | 16 |
| Analog outputs: | 2 |
