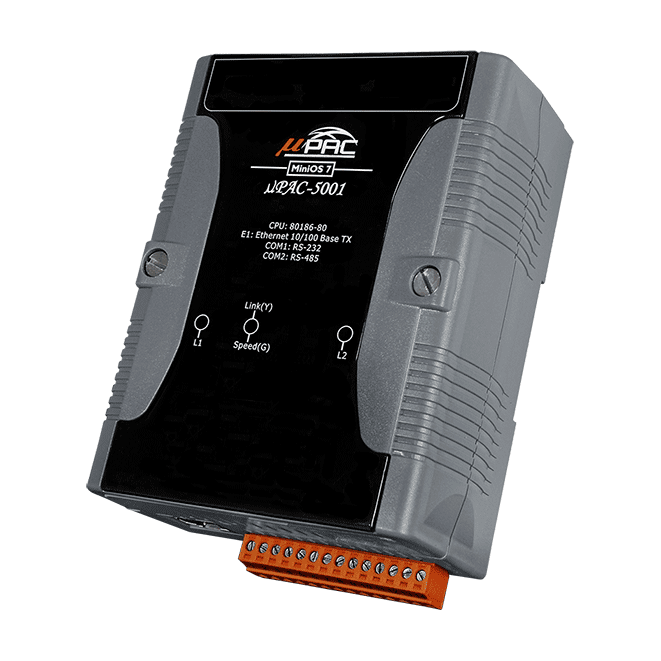

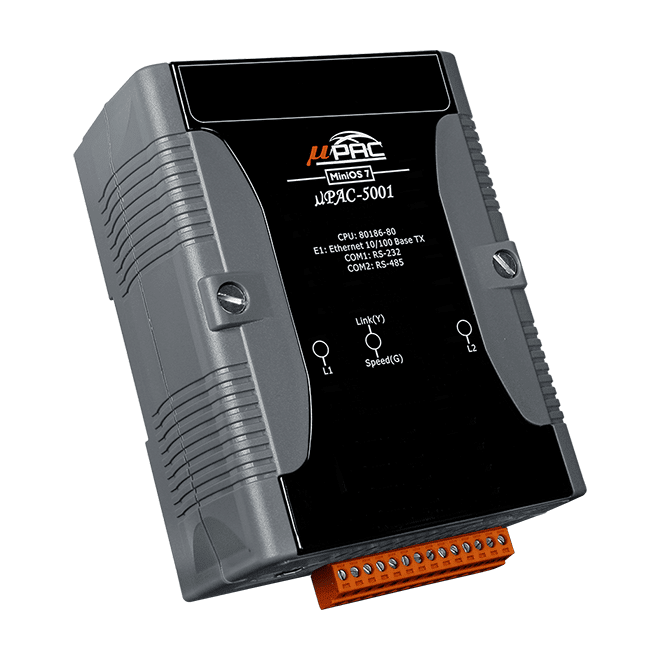

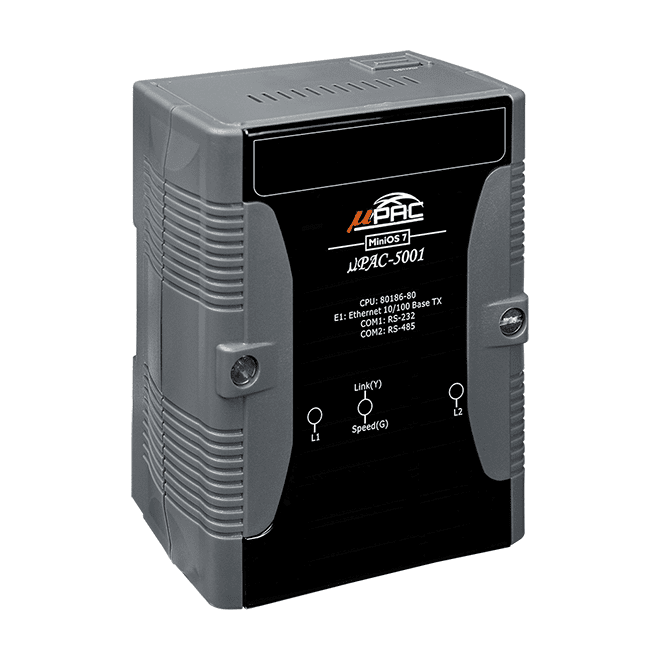

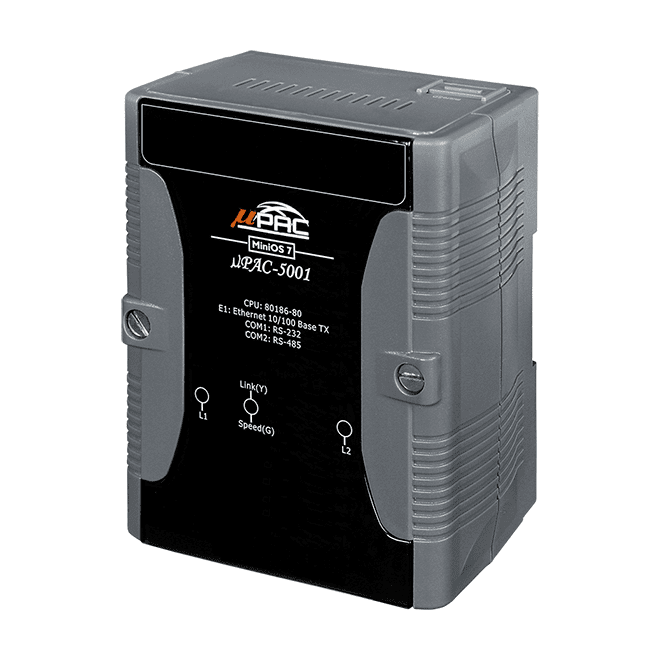

uPAC-5001 Ethernet PAC with MiniOS7 and RS-232/RS-485 Ports
Programmable automation controller with an 80 MHz 80186-80 CPU, MiniOS7 software, Ethernet and RS-232/RS-485 ports, and an I/O expansion bus for DIN-rail installation.
- 80186-80 CPU running at 80 MHz with MiniOS7 operating system
- Programmable in C using the supplied software development tool kits and Modbus libraries
- One 10/100 Base-TX Ethernet port, one RS-232 port and one RS-485 port
- Modbus communication with SCADA software, serial speeds up to 115200 bps
- 512 KB flash, 512 KB SRAM, 16 KB EEPROM and microSD storage expansion up to 32 GB
- I/O expansion bus interface for XW-board expansion modules
3 866,75 kr per st.
| 1–9 st. | 3 866,75 kr | |
|---|---|---|
| 10–30 st. | 3 755,95 kr | −3 % |
| 31+ st. | 3 678,39 kr | −5 % |
Produktinformation "uPAC-5001 Ethernet PAC with MiniOS7 and RS-232/RS-485 Ports"
The uPAC-5001 CR is a programmable automation controller for bridging serial field devices onto Ethernet. It runs the MiniOS7 operating system and is programmed in C using the supplied software development tool kits, including Modbus libraries, so serial devices can be given Ethernet and Internet connectivity without custom communication stacks.
Connectivity covers one 10/100 Base-TX Ethernet port, one RS-232 port and one RS-485 port, with serial speeds up to 115200 bps. Data can be exposed to SCADA packages over the standard Modbus protocol. Storage comprises 512 KB of flash, 16 KB of EEPROM and microSD expansion of up to 32 GB.
For local hardware expansion, the controller provides an I/O expansion bus for XW-board modules. Reliability features include redundant power inputs accepting +12 ~ 48 VDC, a built-in watchdog timer, a real-time clock and two programmable status LEDs. The unit is rated for -25 ~ +75 °C operation and mounts on a DIN rail.
Applications
- Adding Ethernet and Internet connectivity to existing serial devices
- Modbus data exchange with SCADA systems such as Indusoft, ISaGRAF, DasyLab, Trace Mode, Citect and iFix
- Local control with expandable I/O in DIN-rail industrial enclosures
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | Modbus |
| Ports: | 1 x RJ-45, 1 x RS-232, 1 x RS-485 |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifikationer
| Software | |
|---|---|
| OS | MiniOS7 |
| Development | C Language |
| CPU Module | |
| CPU | 80186, 80 MHz |
| 64-bit Hardware Serial Number | Yes |
| EEPROM | 16 KB |
| Flash | 512 KB |
| NVRAM | 31 Bytes |
| SRAM | 512 KB |
| Storage Expansion | Yes, support up 32 GB microSD card |
| Real Time Clock | Provide seconds, minutes, hours, day of week, month, year |
| Watchdog Timer | Yes |
| LED Indicators | |
| Status | 2 x Programmable |
| I/O Expansion | |
| I/O Type | XW-board |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100 Base-TX |
| COM Ports | |
| Ports | 1 x RS-232, 1 x RS-485 |
| Baud Rate | 115200 bps Max. |
| Power | |
| Input Range | +12 ~ 48 VDC |
| Redundant Power Inputs | Yes |
| Consumption | 2.0 W |
| Mechanical | |
| Dimensions (mm) | 91 x 123 x 52 (W x H x D) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
