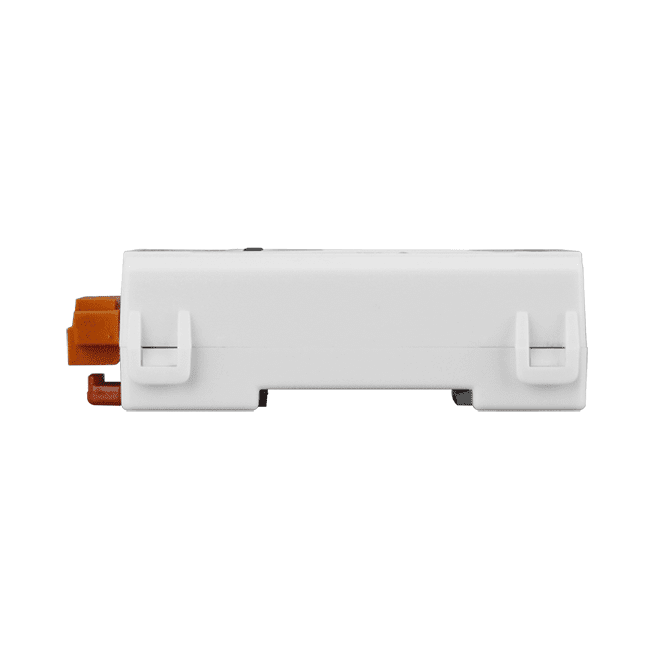

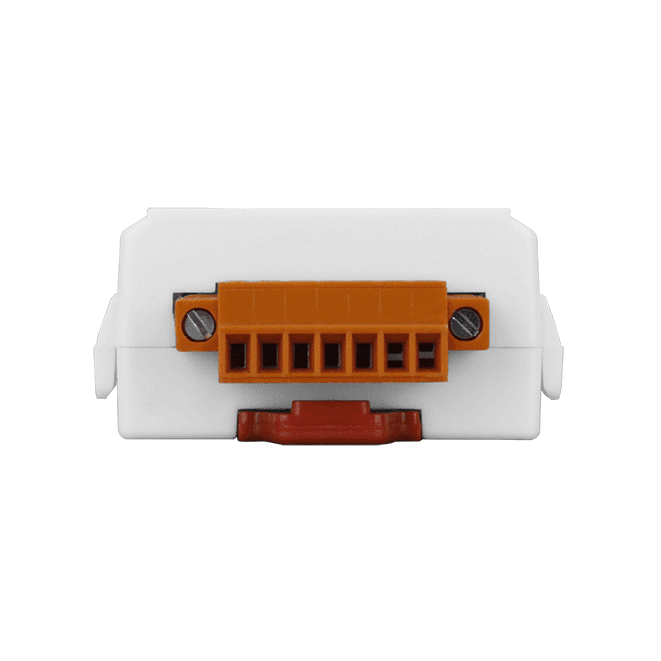

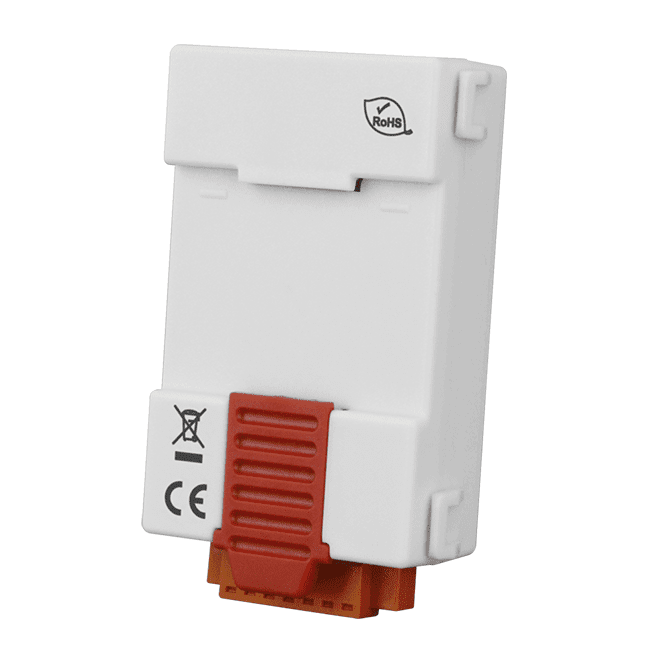

tSG-3781L 1-Channel 4 ~ 20 mA to PWM Signal Conditioner
Single-channel 4 ~ 20 mA current input to PWM output signal conditioner with a 600 ~ 800 Hz adjustable frequency and an LCD showing duty cycle and frequency.
- Converts a 1-channel 4 ~ 20 mA current input to a 1-channel PWM output
- PWM duty cycle of 1 to 100%, linearly proportional to the 4 ~ 20 mA input
- PWM frequency adjustable from 600 to 800 Hz via push buttons
- Monochrome LCD shows PWM duty cycle and frequency
- Input accuracy of ±0.1% of full range with 1 kHz bandwidth
- EFT ±4 kV on power line and ESD ±4 kV contact on each terminal
1 185,51 kr per st.
| 1–9 st. | 1 185,51 kr | |
|---|---|---|
| 10–30 st. | 1 152,27 kr | −3 % |
| 31+ st. | 1 130,11 kr | −5 % |
Produktinformation "tSG-3781L 1-Channel 4 ~ 20 mA to PWM Signal Conditioner"
The tSG-3781L CR is a single-channel DC current input signal conditioner that converts a 4 ~ 20 mA input into a PWM output. The PWM duty cycle covers 0% to 100% and follows the 4 ~ 20 mA input in a linear relationship, making it a practical interface between a current loop signal and a PWM-controlled device.
Output frequency is set between 600 Hz and 800 Hz using the push buttons located on the left side of the module. A monochrome LCD displays the duty cycle and frequency of the PWM output, so settings can be checked on site without additional tools.
- Typical applications include building heating and ventilation systems, and servo-assisted diaphragm valve control.
- DIN-rail or wall mounting with a 10 ~ +30 VDC supply input.
Applications
- Heating systems in buildings
- Ventilation systems
- Controlling servo-assisted diaphragm valves
| Product type: | Signal conditioner |
|---|---|
| Interface: | 4 ~ 20 mA input / PWM output |
| Analog inputs: | 1 |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
Specifikationer
| Display | |
|---|---|
| Type | Monochrome Graphics LCD (26x26 mm Viewing Area) |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for each Terminal |
| LED Indicators | |
| Status | 1 x Power and Communication |
| Analog Input | |
| Channels | 1 |
| Range | +4 ~ +20 mA |
| Accuracy | ±0.1% of full range |
| Bandwidth | 1 kHz |
| Input Impedance | 141 Ω |
| PWM | |
| Channels | 1 |
| Type | PWM |
| Sink/Source (NPN/PNP) | Source |
| Frequency | 600 ~ 800 Hz |
| Duty Cycle | 1 to 100% |
| Mode | Continuous |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ +30 VDC |
| Consumption | 0.2 W (Typ.) 22.0 W Max. (Note2) |
| Mechanical | |
| Dimensions (mm) | 53 x 27 x 87 (W x L x H) |
| Installation | DIN-Rail or Wall Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
