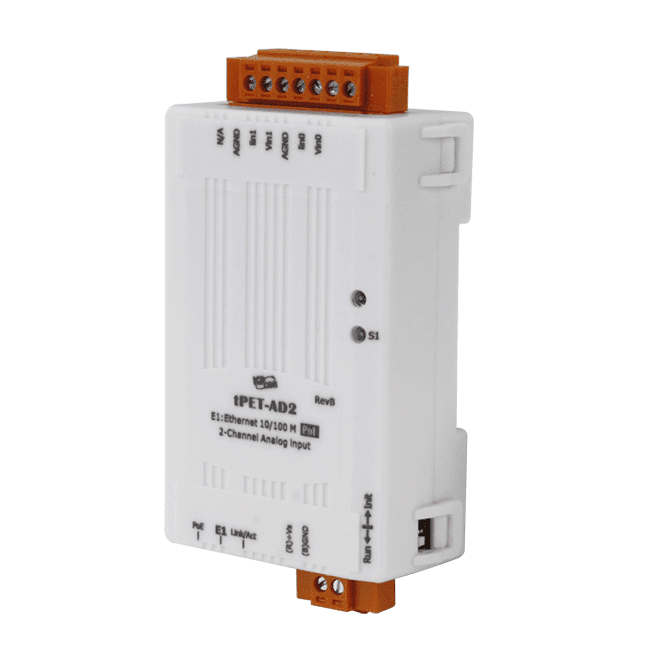

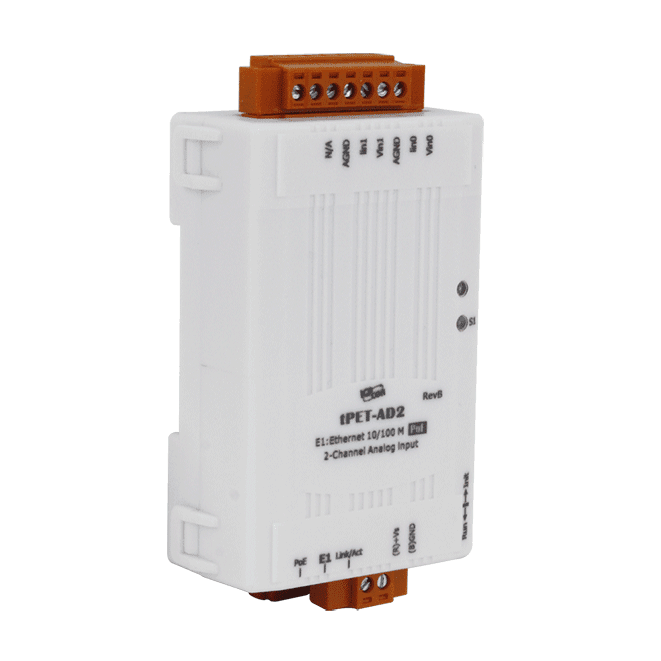

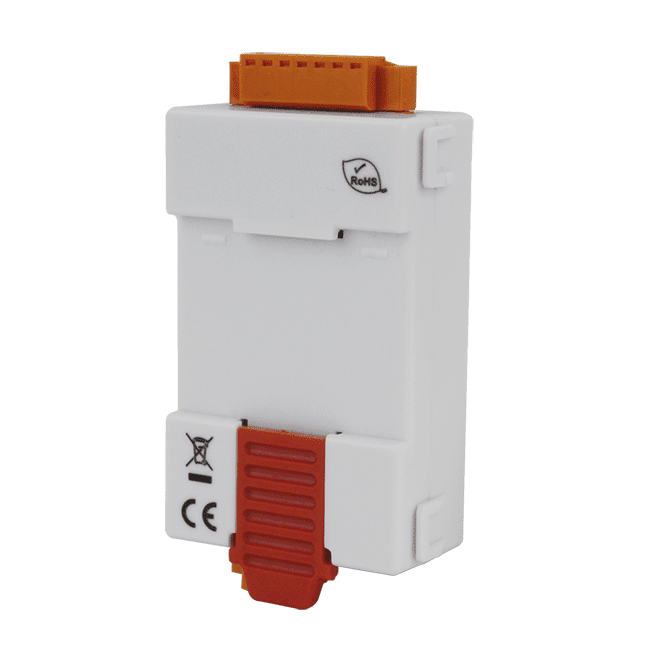

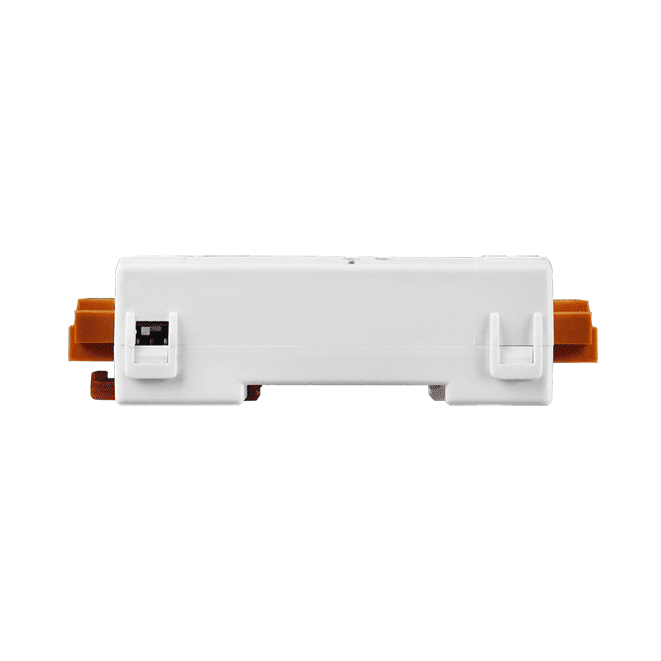

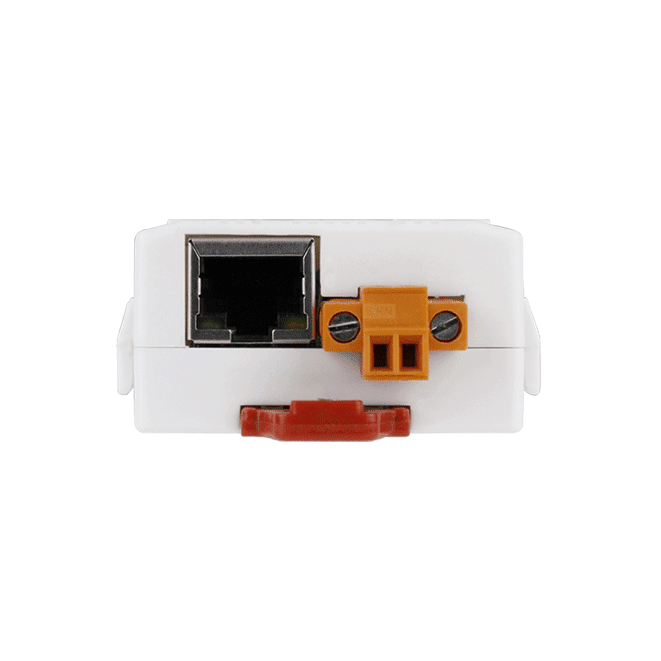

tPET-AD2 PoE Ethernet Module, 2-ch Isolated Analog Input
Tiny PoE Ethernet analog input module with two single-ended voltage and current inputs, 16-bit resolution and 3000 VDC I/O isolation, supporting Modbus TCP and MQTT.
- Two single-ended analog inputs accepting voltage (0 ~ 500 mV to 0 ~ 10 V) and current (0 ~ +20 mA, +4 ~ +20 mA) signals
- 16-bit resolution with individual channel configuration
- Selectable Normal Mode (10 Hz total) or Fast Mode (200 Hz total) sampling
- 120 VDC overvoltage protection and 3000 VDC I/O isolation
- IEEE 802.3af PoE, Class 1, or +12 to +48 VDC terminal block power
- Built-in web server with password and IP filter access control
1 661,93 kr per st.
| 1–9 st. | 1 661,93 kr | |
|---|---|---|
| 10–30 st. | 1 606,53 kr | −3 % |
| 31+ st. | 1 573,29 kr | −5 % |
Produktinformation "tPET-AD2 PoE Ethernet Module, 2-ch Isolated Analog Input"
Compact PoE analog input for networked measurement. The tPET-AD2 takes two single-ended analog inputs and reports them over Ethernet, so it can be powered from the network cable or from a +12 to +48 VDC terminal block and placed close to the sensors it reads.
Each input can be configured individually for voltage ranges from 0 ~ 500 mV up to 0 ~ 10 V, or current ranges of 0 ~ +20 mA and +4 ~ +20 mA, with open wire detection available for the 4 to 20 mA range. The module offers a choice of Normal Mode (10 Hz total) or Fast Mode (200 Hz total) sampling, and provides 120 VDC overvoltage protection and 3000 VDC intra-module isolation.
Configuration is handled through the built-in web server, and the module supports Modbus TCP/UDP, MQTT and SNMP V2c, along with dual-watchdog operation and firmware updates over Ethernet. It is housed for DIN-rail mounting and rated for operation from -25 ~ +75 °C.
Applications
- Industrial Automation
- Industrial Machinery
- Building Automation
- Food and Beverage Systems
- Semiconductor fabrication
- Control Systems
| Product type: | Ethernet I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | Modbus TCP, Modbus UDP, MQTT, SNMP v2c |
| Analog inputs: | 2 |
| Ports: | 1 |
| PoE: | Yes |
| Isolation: | 3000 VDC |
| Power input: | +12 to +48 VDC, PoE IEEE 802.3af |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifikationer
| Software | |
|---|---|
| Built-in Web Server | Yes |
| CPU Module | |
| CPU | 32-bit MCU |
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
| 2-way Isolation | I/O: 3000 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
| Status | Run, Ethernet, PoE |
| Analog Input | |
| Channels | 2 Single-ended |
| Type | Voltage, Current |
| Range | Voltage: 0 ~ 500 mV, 0 ~ 1 V, 0 ~ 2.5 V, 0 ~ 5 V, 0 ~ 10 V Current: 0 ~ +20 mA, +4 ~ +20 mA |
| Resolution | 16-bit |
| Accuracy | Normal Mode: ±0.1% of FSR Fast Mode: ±0.5% of FSR |
| Sampling Rate | Normal Mode: 10 Hz (total channels) Fast Mode: 200 Hz (total channels) |
| Input Impedance | Voltage: 10 MΩ Current: 137 Ω |
| Overvoltage Protection | 120 VDC |
| Overcurrent Protection | 50 mA at 110 VDC |
| Individual Channel Configuration | Yes |
| Open Wire Detection | For 4 to 20 mA only |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100 Base-Tx |
| PoE | Yes |
| Access Control | Password and IP Filter |
| Protocol | Modbus TCP, Modbus UDP, MQTT, and SNMP V2c |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 1.2 W |
| Powered from PoE | IEEE 802.3af, Class 1 |
| Powered from Terminal Block | +12 to +48 VDC |
| Mechanical | |
| Dimensions (mm) | 52 x 96 x 27 (W x L x H) |
| Installation | DIN-Rail mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 to 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
