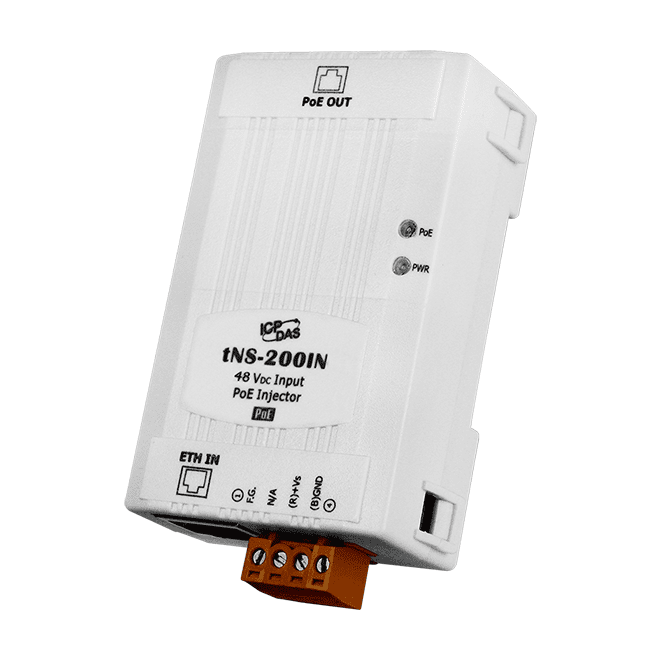

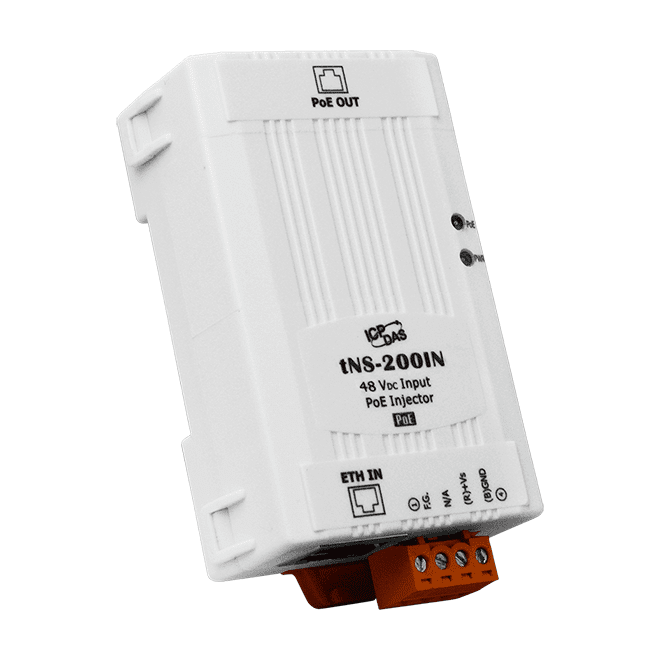

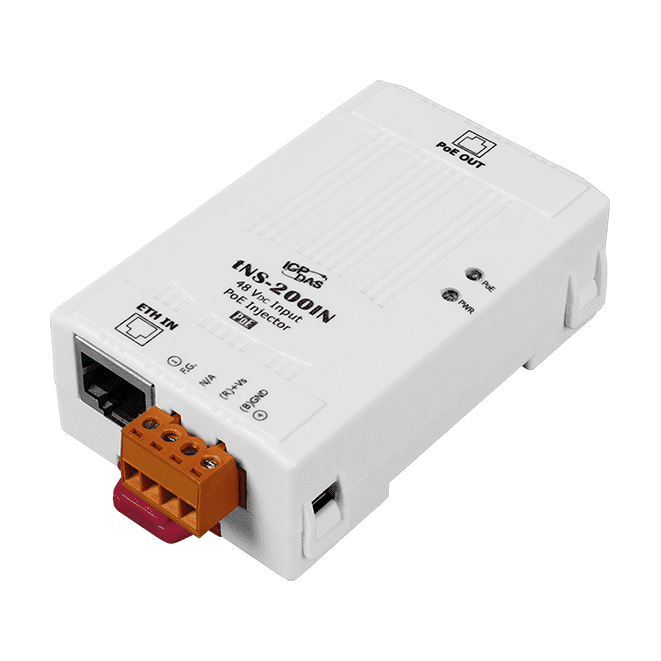

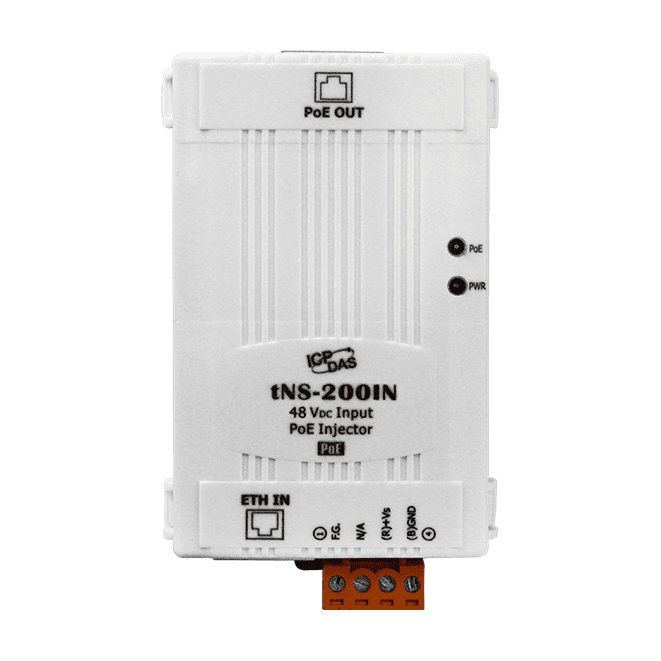

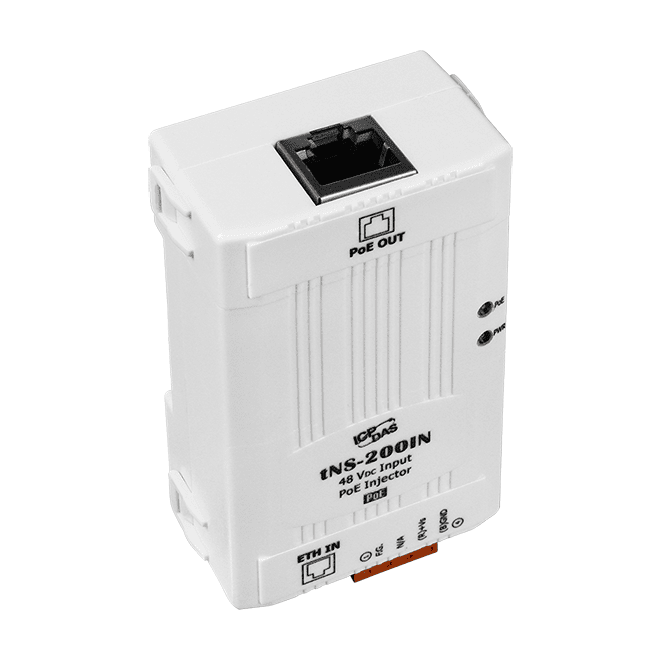

tNS-200IN PoE Injector, 1-Port 15.4 W, 10/100Base-TX, DIN-Rail
Single-port PoE injector that adds up to 15.4 W of IEEE 802.3af power to a standard Ethernet cable, fed from a +46 ~ +53 VDC supply. Ordering code tNS-200IN CR.
- Up to 15.4 W of PoE power, 100% IEEE 802.3af compliant
- Powers the device over spare pairs of a standard Ethernet cable alongside 10/100Base-T(X) data
- Automatic detection of powered devices (PD)
- Over-temperature, over-current and over/under-voltage detection
- +46 ~ +53 VDC power input with reverse polarity protection
- Status LEDs show power and PD detection
808,80 kr per st.
| 1–9 st. | 808,80 kr | |
|---|---|---|
| 10–30 st. | 786,64 kr | −3 % |
| 31+ st. | 775,57 kr | −4 % |
Produktinformation "tNS-200IN PoE Injector, 1-Port 15.4 W, 10/100Base-TX, DIN-Rail"
tNS-200IN CR is a single-port Power over Ethernet injector for feeding a PoE powered device over the same cable that carries its 10/100Base-T(X) data. Power is placed on the spare pairs, so the RJ-45 link to the device uses a standard Ethernet cable and the device needs no separate power wiring.
The injector accepts a +46 ~ +53 VDC input and supplies up to 15.4 W to the powered device, with the output voltage following the power input. Automatic detection of powered devices, together with over-temperature, over-current and over/under-voltage detection, helps protect the connected equipment and the supply.
The compact plastic housing measures 52 x 86 x 27 mm and mounts on a DIN rail. With an operating range of -40 °C ~ +75 °C, it suits cabinets and enclosures in industrial environments.
Applications
- Powering PoE powered devices in industrial environments
- Supplying data and power to a remote device over a single Ethernet cable
| Product type: | PoE Injector |
|---|---|
| Interface: | 10/100Base-T(X) |
| Ports: | 1 x RJ-45 in, 1 x PoE out |
| PoE: | IEEE 802.3af, 15.4 W |
| Power input: | +46 ~ +53 VDC |
| Operating temperature: | -40 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifikationer
| LED Indicators | |
|---|---|
| Status | Power, Power Device is detected |
| Ethernet | |
| Ports | 1 x RJ-45 in, 1 x PoE out, 10/100Base-T(X) |
| PoE Technology | |
| PoE Compliance | 100% IEEE 802.3af compliant |
| PoE Power | Up to 15.4 W |
| PoE Pin Assignments | V+ (Pin 4,5), V- (Pin 7,8) |
| PoE Voltage | +48 VDC depending on power input |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +46 ~ +53 VDC |
| Consumption | 0.4 A@ 48 VDC with PD full loading |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 52 x 86 x 27 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -40 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Humidity | 10% ~ 90% RH, non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
