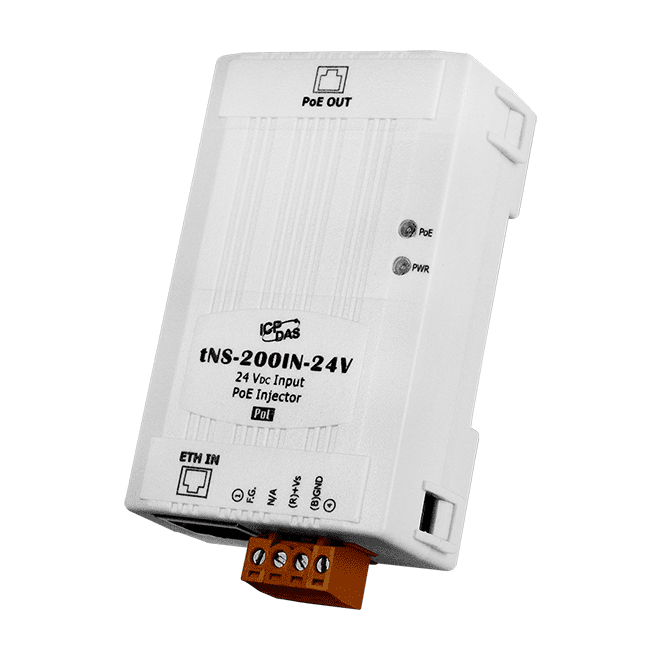

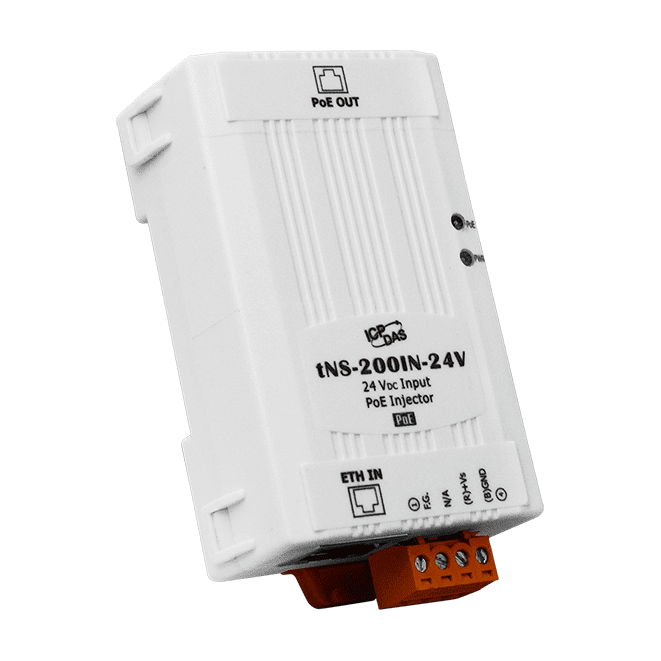

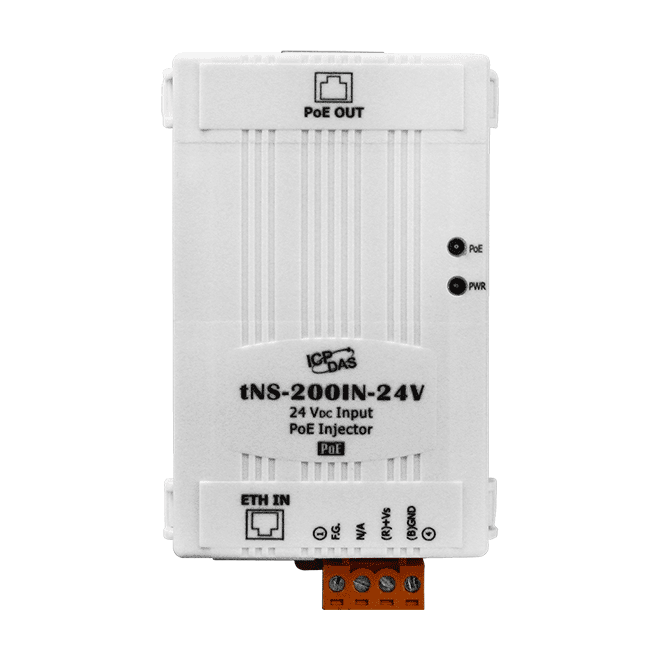

tNS-200IN-24V PoE Injector, 1-Port 15.4 W, +24 VDC Input
Single-port PoE injector that feeds up to 15.4 W over a standard 10/100Base-TX Ethernet cable from a +18 ~ +32 VDC supply, for DIN-rail installation.
- Delivers up to 15.4 W to a PoE powered device over spare pairs, 100% IEEE 802.3af compliant
- Automatic detection of powered devices (PD)
- Over-temperature, over-current and over/under-voltage detection
- +18 ~ +32 VDC power input with reverse polarity protection

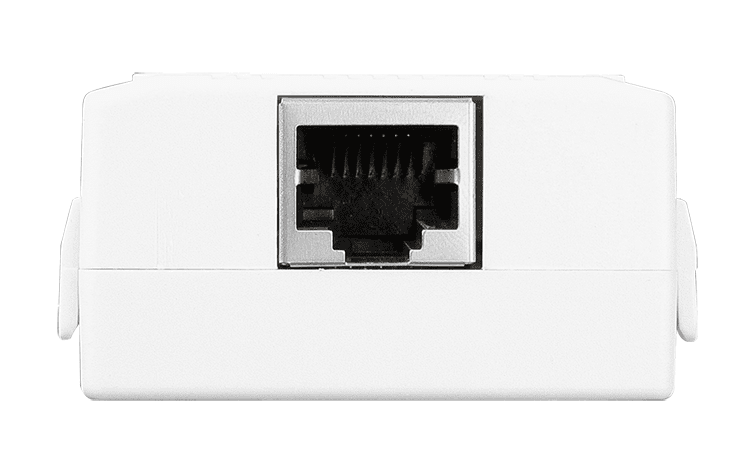

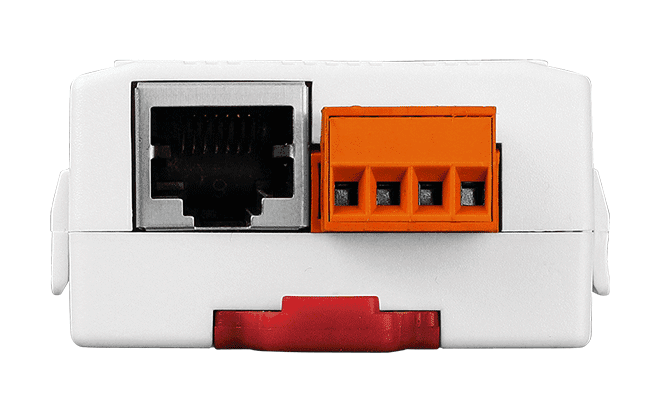

- 1 x RJ-45 in, 1 x PoE out, 10/100Base-T(X)
- Compact plastic housing, 52 x 86 x 27 mm, DIN-rail mounting
1 174,43 kr per st.
| 1–9 st. | 1 174,43 kr | |
|---|---|---|
| 10–30 st. | 1 130,11 kr | −4 % |
| 31+ st. | 1 107,95 kr | −6 % |
Produktinformation "tNS-200IN-24V PoE Injector, 1-Port 15.4 W, +24 VDC Input"
Single-port PoE injector for industrial sites without a +48 VDC supply. The tNS-200IN-24V adds power to an existing data link, so one standard Ethernet cable carries both signal and power to a PoE powered device with an RJ-45 port. It runs from a +18 ~ +32 VDC input and can supply up to 15.4 W.
The unit detects connected powered devices automatically and monitors for over-temperature, over-current and over/under-voltage conditions. Its compact plastic housing is designed for DIN-rail mounting, and it is rated for an operating range of -40 °C ~ +75 °C.
- Suits 802.3af powered devices on spare pairs
- Ideal where a +48 VDC PoE supply is unavailable
Applications
- Powering PoE powered devices in industrial environments from a +24 VDC supply where +48 VDC is not available
| Product type: | PoE Injector |
|---|---|
| Interface: | 10/100Base-T(X) |
| Ports: | 1 |
| PoE: | 15.4 W |
| Power input: | +18 ~ +32 VDC |
| Operating temperature: | -40 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifikationer
| LED Indicators | |
|---|---|
| Status | Power, Power Device is detected |
| Ethernet | |
| Ports | 1 x RJ-45 in, 1 x PoE out, 10/100Base-T(X) |
| PoE Technology | |
| PoE Compliance | 100% IEEE 802.3af compliant |
| PoE Power | Up to 15.4 W |
| PoE Pin Assignments | V+ (Pin 4,5), V- (Pin 7,8) |
| PoE Voltage | +48 VDC depending on power input |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +18 ~ +32 VDC |
| Consumption | 0.8 A@ 24 VDC with PD full loading |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 52 x 86 x 27 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -40 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Humidity | 10% ~ 90% RH, non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
