tNS-200GIN-24V Single-Port PoE Injector, 30 W, +24 VDC Input
Single-port 10/100/1000Base-T(X) PoE injector that adds up to 30 W over spare pairs to an IEEE 802.3at powered device, fed from a +18 ~ +32 VDC supply.
- Up to 30 W PoE output over spare pairs, 100% IEEE 802.3at compliant
- Boosts a +24 VDC input to PoE voltage where +48 VDC is not available
- Auto-detection of PD (powered devices)
- Over-temperature, over-current and over/under-voltage detection
- Reverse polarity protection on power input
- +18 ~ +32 VDC power input range
1 185,51 kr per st.
| 1–9 st. | 1 185,51 kr | |
|---|---|---|
| 10–30 st. | 1 152,27 kr | −3 % |
| 31+ st. | 1 130,11 kr | −5 % |
Produktinformation "tNS-200GIN-24V Single-Port PoE Injector, 30 W, +24 VDC Input"

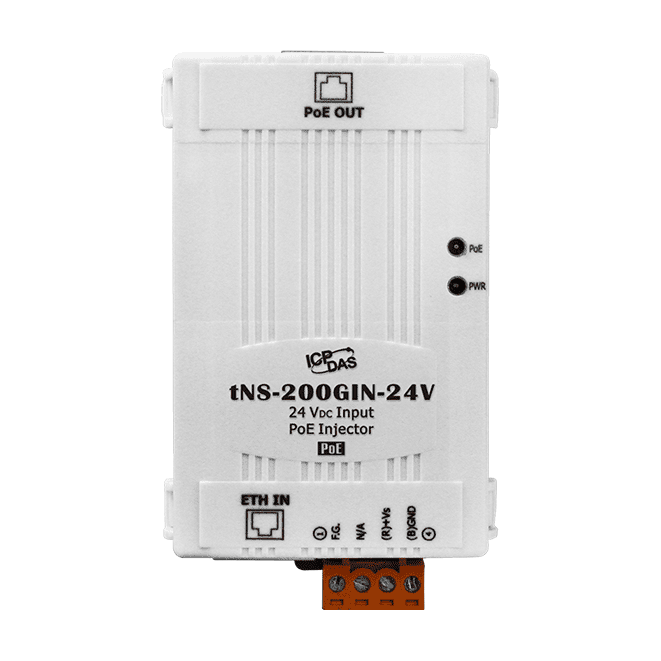

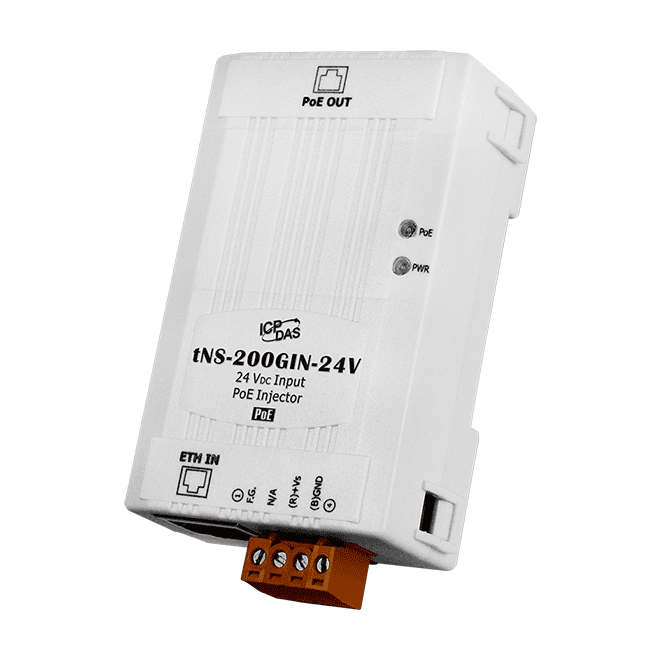

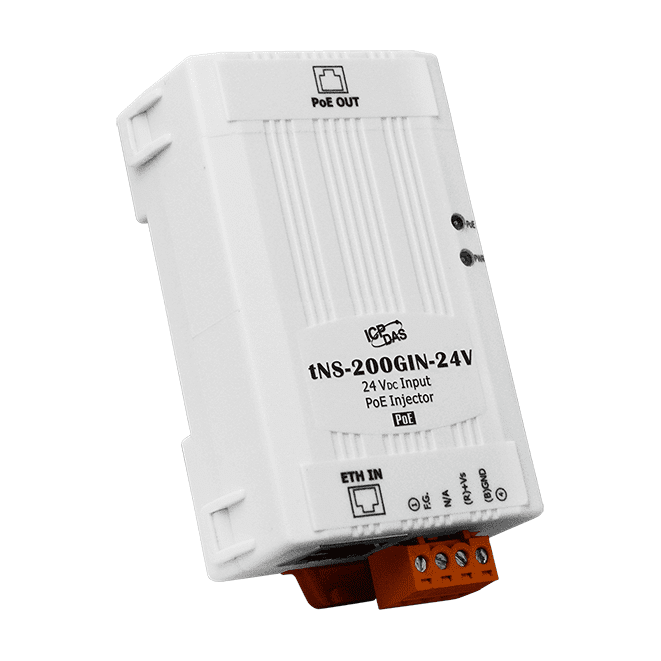

The tNS-200GIN-24V CR sends data and power over one standard Ethernet cable to a PoE powered device with an RJ-45 port. It suits sites where a +48 VDC supply is not available, as it raises a +24 VDC input to PoE voltage for the powered device.
Protection and monitoring are built in. The unit auto-detects powered devices and provides over-temperature, over-current and over/under-voltage detection, along with reverse polarity protection on the power input.

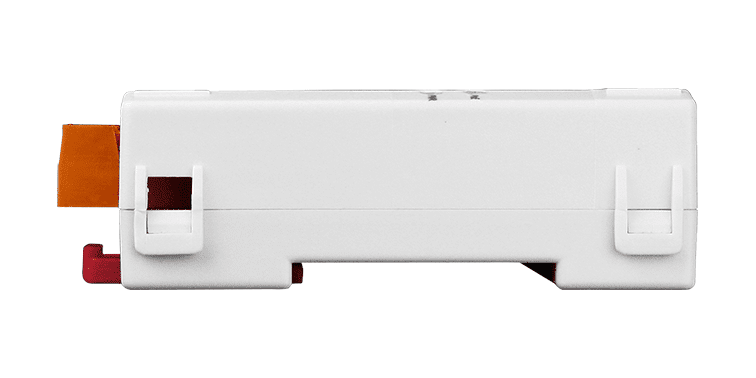

The plastic casing measures 52 x 86 x 27 mm (W x L x H) and mounts on a DIN-rail. It is rated for an operating temperature of -40 °C ~ +75 °C and includes a Power and Power Device detection LED.
Applications
- Powering PoE devices in industrial environments
- Installations without a +48 VDC power supply
- DIN-rail mounted control cabinets
| Product type: | PoE Injector |
|---|---|
| Interface: | RJ-45 |
| Ports: | 1 |
| PoE: | 30 W |
| Power input: | +18 ~ +32 VDC |
| Operating temperature: | -40 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifikationer
| LED Indicators | |
|---|---|
| Status | Power, Power Device is detected |
| Ethernet | |
| Ports | 1 x RJ-45 in, 1 x PoE out, 10/100/1000Base-T(X) |
| PoE Technology | |
| PoE Compliance | 100% IEEE 802.3at compliant |
| PoE Power | Up to 30 W |
| PoE Pin Assignments | V+ (Pin 4,5), V- (Pin 7,8) |
| PoE Voltage | +48 VDC depending on power input |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +18 ~ +32 VDC |
| Consumption | 1.5 A@ 24 VDC with PD full loading |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 52 x 86 x 27 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -40 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Humidity | 10% ~ 90% RH, non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
