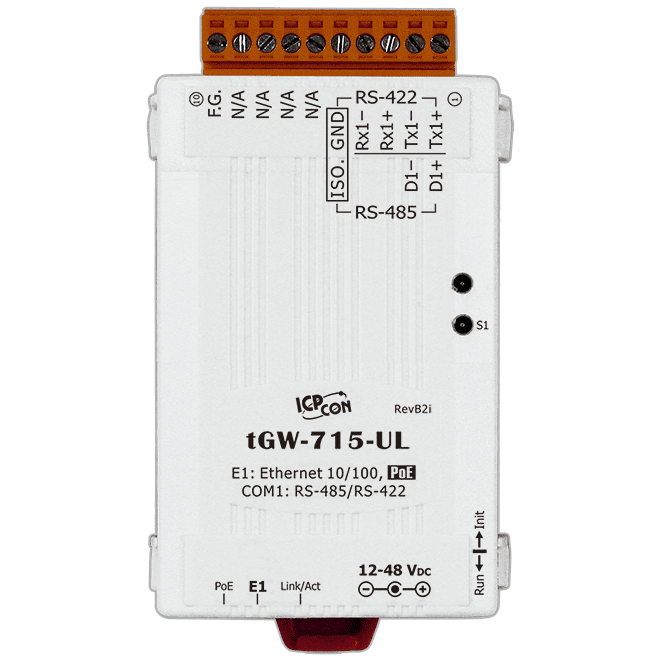

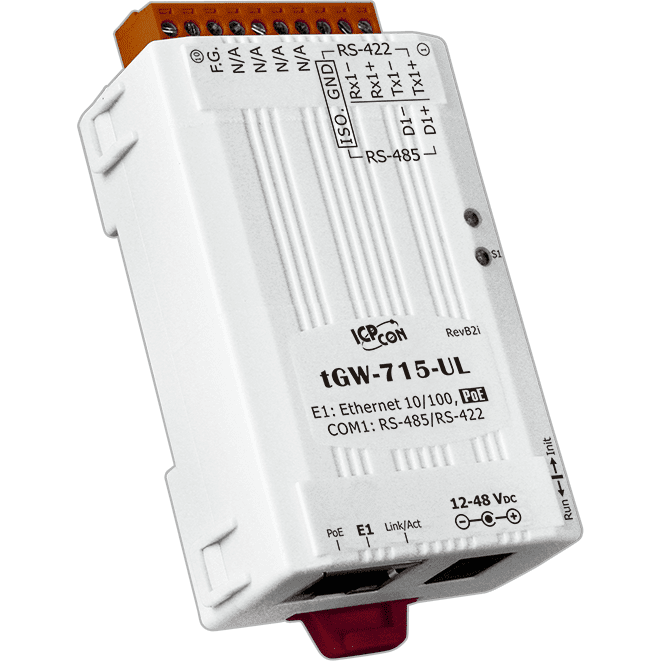

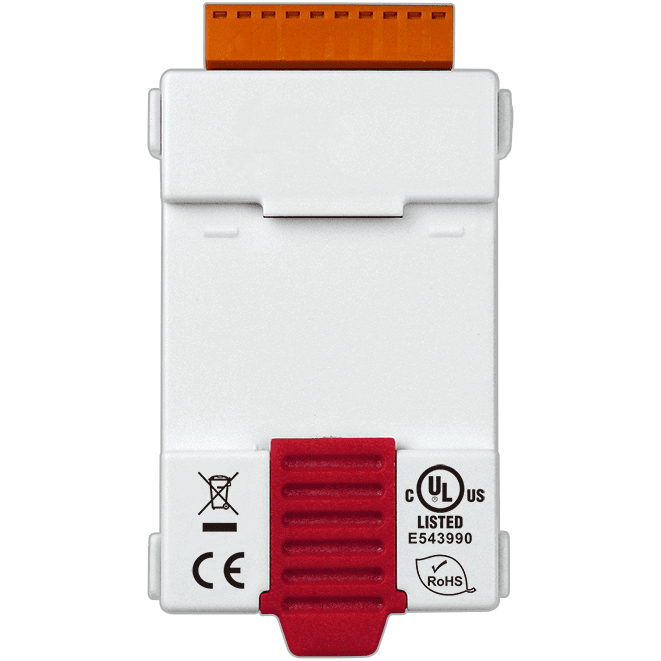

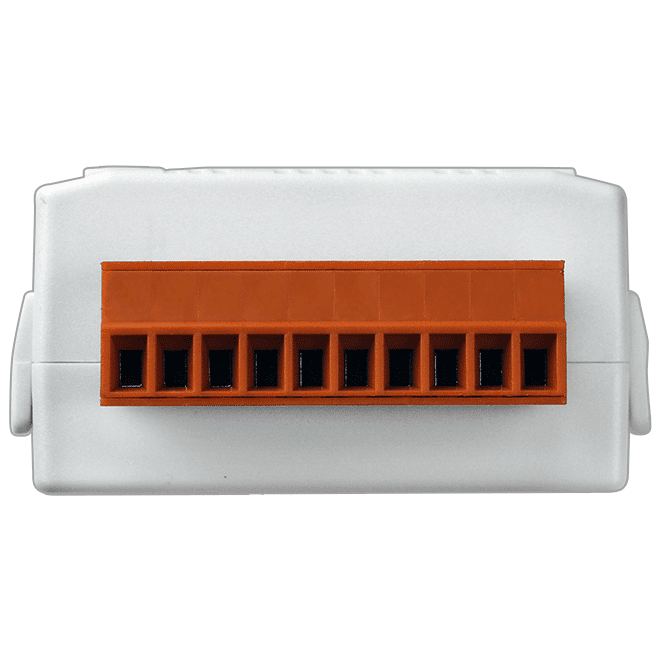

tGW-715-UL Modbus TCP to RTU/ASCII Gateway with PoE, 1-port RS-422/485
Modbus TCP to RTU/ASCII gateway with PoE and one non-isolated RS-422/485 port, linking Ethernet masters to serial Modbus devices. DIN-rail mounted, -25 ~ +70 °C.
- Modbus TCP/UDP master and slave support with Modbus RTU/ASCII master and slave on the serial side
- Single 1-port RS-422/485 interface, non-isolated on this ordering code, up to 115200 bps
- Up to 32 TCP connections (masters) per serial port
- Read-cache for faster Modbus TCP/UDP responses and reduced RS-485 bus loading
- PoE (IEEE 802.3af, Class 1) or +12 ~ 48 VDC terminal block power input
- Static IP or DHCP network configuration with web-based configuration over HTTP
1 451,41 kr per st.
| 1–9 st. | 1 451,41 kr | |
|---|---|---|
| 10–30 st. | 1 407,10 kr | −3 % |
| 31+ st. | 1 384,94 kr | −5 % |
Produktinformation "tGW-715-UL Modbus TCP to RTU/ASCII Gateway with PoE, 1-port RS-422/485"
The tGW-715-UL bridges Ethernet-based Modbus TCP masters and serial Modbus RTU/ASCII devices on a single 1-port RS-422/485 interface. It allows legacy serial equipment to be reached over a TCP/IP network, removing the cable-length restrictions of a direct serial connection.
Power can be supplied over Ethernet using IEEE 802.3af Class 1 PoE from a compatible switch, or from a +12 ~ 48 VDC terminal block where no PoE switch is available. A read-cache stores previous requests and responses, so repeated polls from several masters to the same slave can be answered quickly, reducing traffic on the RS-485 bus.
This ordering code uses the standard, non-isolated RS-422/485 port with an operating range of -25 ~ +70 °C. Choose the tGW-715i-UL variant if the serial port requires 3000 VDC signal isolation, or the -UTA version for operation down to -40 °C.
Applications
- Factory automation
- Building and home automation
- Remote diagnosis and management
- Solar monitoring
| Product type: | Modbus gateway |
|---|---|
| Interface: | 10/100 Base-TX, RS-422/485 |
| Protocol: | Modbus RTU/ASCII, Modbus TCP |
| Ports: | 1 serial, 1 Ethernet |
| PoE: | IEEE 802.3af, Class 1 |
| Isolation: | None (serial port) |
| Power input: | +12 ~ 48 VDC, PoE |
| Operating temperature: | -25 ~ +70 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifikationer
| Ethernet | |
|---|---|

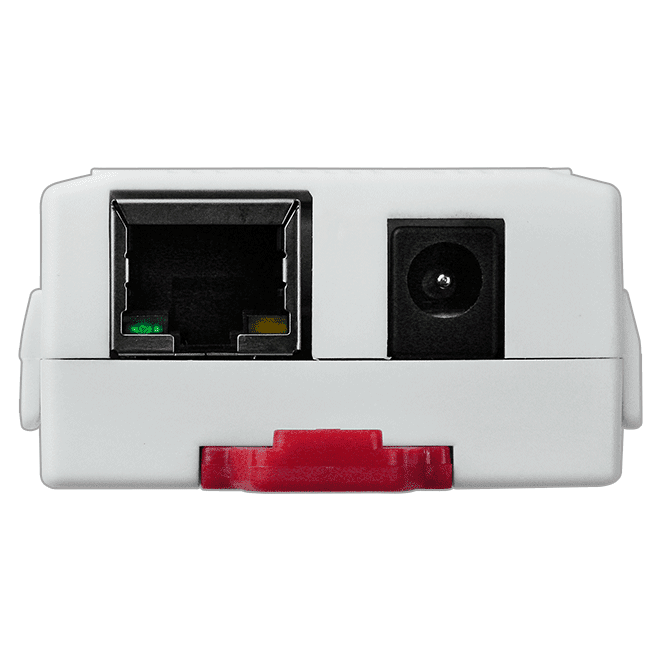

| Ports | 10/100 Base-TX, 8-pin RJ-45 x 1, (Auto-negotiating, Auto-MDI/MDIX, LED indicator) |
| PoE | PoE (IEEE 802.3af, Class 1) |
| COM Ports | |
| Ports | tGW-715-UL & tGW-715-UL-UTA: 1 x RS-422/485 (non-isolation) tGW-715i-UL & tGW-715i-UL-UTA: 1 x RS-422/485 (3000VDC Signal Isolation) |
| Baud Rate | 115200 bps Max. |
| Bias Resistor | Yes, 1 KΩ |
| Parity | None, Odd, Even, Mark, Space |
| Data Bit | 5, 6, 7, 8 |
| Stop Bit | 1, 2 |
| Node Address | 254 (max.) |
| Power | |
| Consumption | 0.07 A @ 24 VDC |
| Powered from PoE | IEEE 802.3af, Class 1 |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 52 mm x 27 mm x 95 mm (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | tGW-715-UL & tGW-715i-UL: -25 ~ +70 °C tGW-715-UL-UTA & tGW-715i-UL-UTA: -40 ~ +70 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
