iWSN-9603-240-ME-IP33 Wireless 3-Phase Power Meter, 200 A CT Kit
Wireless 3-phase power meter with six 200 A split-core CTs (24 mm). Measures 2-loop 3-phase or 4-loop single-phase circuits and is powered from the measured voltage cable.
- Measures 2-loop 3-phase or 4-loop single-phase AC circuits with bidirectional kWh measurement
- Six 200 A split current transformers, 24 mm inside diameter, 8 m wire leads
- Self-powered from the measured voltage cable, with no extra power wiring
- 433 MHz wireless with up to 64 sub-networks, Node ID 1 ~ 31 and Channels 0 ~ 15
- Wiring types 3P4W, 3P3W, 3P3W 2CT, 1P3W and 1P2W
- Built-in 2A fuse to protect the main circuit
13 029,49 kr per st.
| 1–9 st. | 13 029,49 kr | |
|---|---|---|
| 10–30 st. | 12 641,71 kr | −3 % |
| 31+ st. | 12 375,80 kr | −5 % |
Produktinformation "iWSN-9603-240-ME-IP33 Wireless 3-Phase Power Meter, 200 A CT Kit"

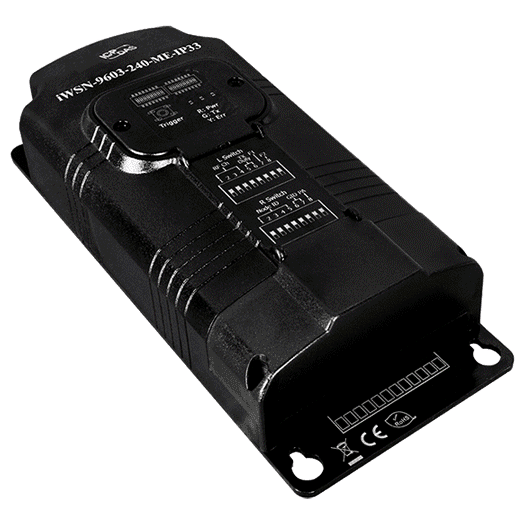

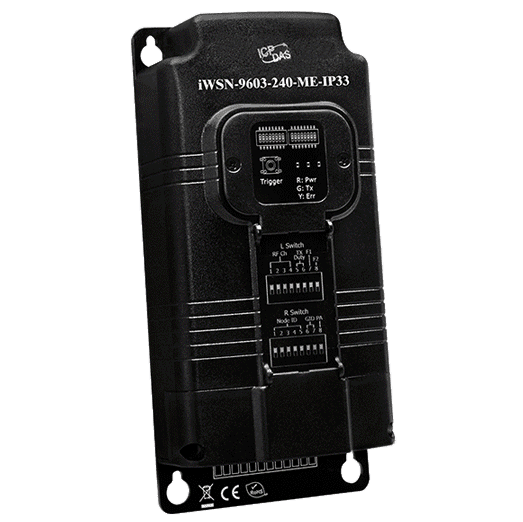

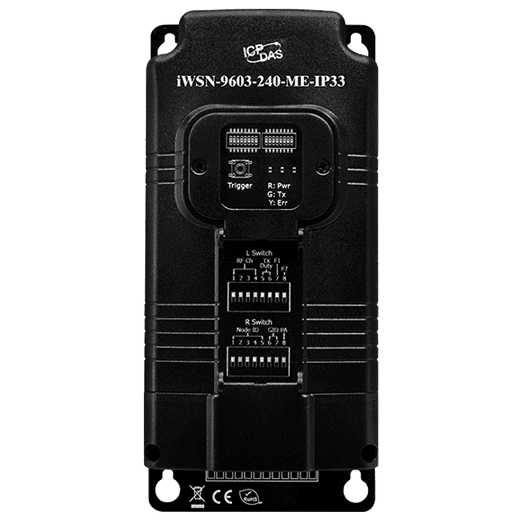

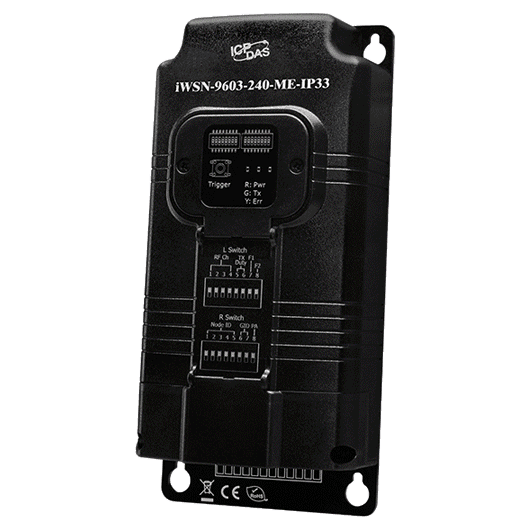

The iWSN-9603-240-ME-IP33 is a wireless energy meter for monitoring several loads fed from the same AC supply. It takes one three-phase voltage input and two three-phase current inputs, each fitted with 200 A split current transformers, so it can cover 2-loop three-phase or 4-loop single-phase circuits in one unit.
Because the meter draws its power from the measured voltage cable, no separate supply wiring is required. Readings are sent over 433 MHz radio, with up to 64 wireless sub-networks available, which suits factory floors where metal structures and dense equipment would otherwise disrupt a conventional wired network.
- Bidirectional kWh measurement with true RMS voltage and current
- Built-in RTC timestamps each measurement, with a 3-minute history cache to fill gaps
- IP33 housing with a connector cover, for installation outside a panel box
Applications
- Machine and process power efficiency improvement
- Power information administration
- Calculation of carbon emission
- Predictive maintenance
- Big data analysis of power consumption
| Product type: | Power meter |
|---|---|
| Interface: | 433 MHz wireless |
| Power input: | 100 - 480 VAC |
| Operating temperature: | -30 ~ +50 °C |
| Mounting: | Wall-mount |
| Housing: | IP33 |
Specifikationer
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | +/- 500 V |
| ESD (IEC 61000-4-2) | +/- 4 kV Contact |
| LED Indicators | |
| Status | 1 x Power 1 x Tx 1 x Error |
| AC Power Measurement | |
| Wiring | 3P4W-3CT, 3P3W-2CT, 3P3W-3CT, 1P2W-1CT, 1P3W-2CT |
| Loops | 4(Single Phase)/ 2(Three Phase) |
| Input Voltage | 100 - 480 VAC (58 - 277 VAC single phase) |
| Input Current | iWSN-9603-160-ME-IP33: CTØ16 mm (1 A ~ 100 A) iWSN-9603-240-ME-IP33: CTØ24 mm (1 A ~ 200 A) iWSN-9603-360-ME-IP33: CTØ36 mm (1 A ~ 400 A) |
| Input Frequency | 50/60 Hz |
| Wh Accuracy | Better than 1% (PF=1) |
| Power Parameter Measurement | True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Power Factor (PF), Frequency |
| Data Update Rate | 1, 10, 30, or 60 Seconds |
| RF | |
| Channels | 0 ~ 15 |
| Group ID | 0 ~ 3 |
| Radio Frequency | 433.1000 ~ 434.6000 MHz |
| Transmission Power | 9±1dBm (PA Off) / 18±1dBm (PA On) |
| Transmission Distance (LoS) | 100 m |
| Node ID | 1 ~ 31 |
| Working Duty | 1, 10, 30, or 60 Seconds |
| Antenna | |
| Type | Built-in Omni-directional antenna |
| Power | |
| Consumption | 3W |
| Input Type | Three phase 4 wire x1, 100 - 480 VAC (58 - 277 VAC single phase) |
| Mechanical | |
| Dimensions (mm) | 85 x 184 x 47 (W x L x H) |
| Installation | Wall-mount |
| Ingress Protection Rating | IP33 |
| Environment | |
| Operating Temperature | -30 °C ~ +50 °C |
| Storage Temperature | -40 °C ~ +55 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
