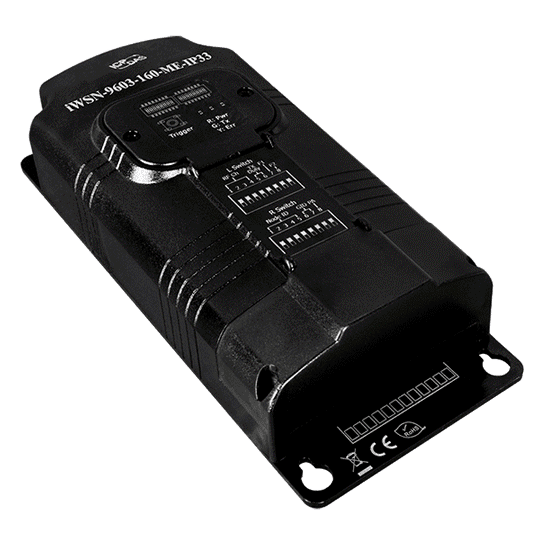

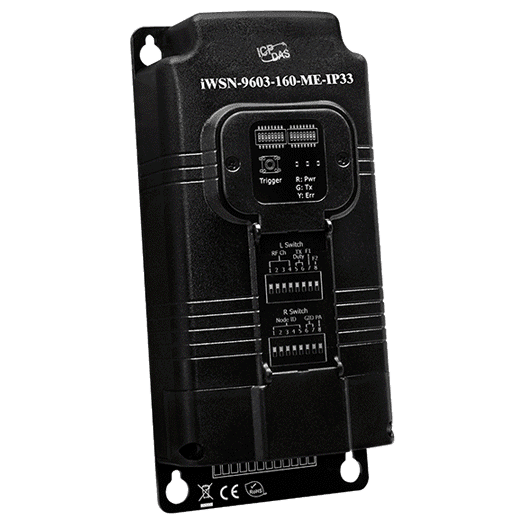

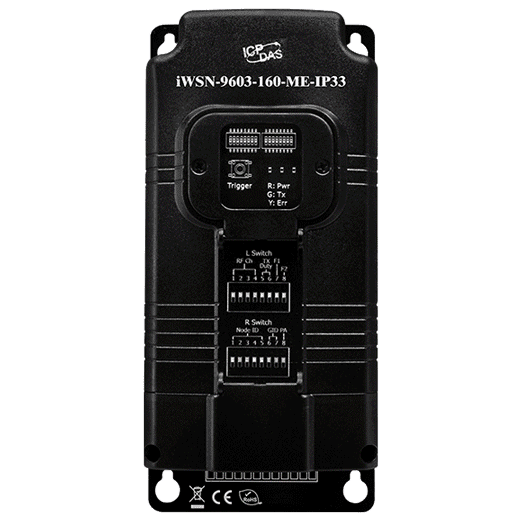

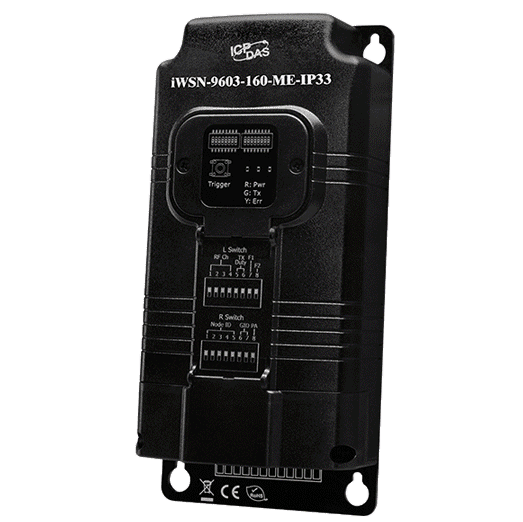

iWSN-9603-160-ME-IP33 Wireless 3-Phase Power Meter, 100 A CT Kit
Wireless 3-phase, 2-loop power meter supplied with six 100 A split-core CTs (16 mm aperture). Powered from the measured voltage, with a 433 MHz radio link and IP33 housing.
- Measures 2-loop 3-phase or 4-loop single-phase AC circuits
- Six 100 A split CTs (16 mm inside diameter, 8 m leads) included
- Wiring options: 3P4W, 3P3W, 3P3W 2CT, 1P3W and 1P2W
- Self-powered from the measured voltage cable, no extra power wiring
- 433 MHz wireless with up to 64 sub-networks and a 3-minute history data cache
- Bi-directional kWh measurement with true RMS voltage and current
9 816,44 kr per st.
| 1–9 st. | 9 816,44 kr | |
|---|---|---|
| 10–30 st. | 9 528,37 kr | −3 % |
| 31+ st. | 9 328,94 kr | −5 % |
Produktinformation "iWSN-9603-160-ME-IP33 Wireless 3-Phase Power Meter, 100 A CT Kit"
The iWSN-9603-160-ME-IP33 is a wireless intelligent power meter for monitoring 3-phase AC circuits. It takes one 3-phase voltage input and two 3-phase current inputs, each fed by 100 A split current transformers with a 16 mm inside diameter. Six CTs and 8 m wire leads are included, so it suits engineers measuring the consumption of several machines or processes fed from the same supply.
Installation is simplified because the module draws its power from the measured voltage cable, so no separate power wiring is needed. Measurements are reported over a 433 MHz sub-GHz radio network with up to 64 sub-networks, and a 3-minute history data cache is available as a supplement to the data. Each reading is time-stamped by the built-in RTC.
The housing is rated IP33 and includes a connector cover to prevent exposed connectors and reduce the risk of electric shock. A built-in 2 A fuse protects the main circuit. Configuration is done via DIP switches.
Applications
- Machine and process power efficiency improvement
- Power information administration
- Calculation of carbon emission
- Predictive maintenance
- Big data analysis of power consumption
| Product type: | Power meter |
|---|---|
| Interface: | 433 MHz RF |
| Power input: | 100 - 480 VAC |
| Operating temperature: | -30 ~ +50 °C |
| Mounting: | Wall-mount |
| Housing: | IP33 |
Specifikationer
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | +/- 500 V |
| ESD (IEC 61000-4-2) | +/- 4 kV Contact |
| LED Indicators | |
| Status | 1 x Power 1 x Tx 1 x Error |
| AC Power Measurement | |
| Wiring | 3P4W-3CT, 3P3W-2CT, 3P3W-3CT, 1P2W-1CT, 1P3W-2CT |
| Loops | 4(Single Phase)/ 2(Three Phase) |
| Input Voltage | 100 - 480 VAC (58 - 277 VAC single phase) |
| Input Current | iWSN-9603-160-ME-IP33: CTØ16 mm (1 A ~ 100 A) iWSN-9603-240-ME-IP33: CTØ24 mm (1 A ~ 200 A) iWSN-9603-360-ME-IP33: CTØ36 mm (1 A ~ 400 A) |
| Input Frequency | 50/60 Hz |
| Wh Accuracy | Better than 1% (PF=1) |
| Power Parameter Measurement | True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Power Factor (PF), Frequency |
| Data Update Rate | 1, 10, 30, or 60 Seconds |
| RF | |
| Channels | 0 ~ 15 |
| Group ID | 0 ~ 3 |
| Radio Frequency | 433.1000 ~ 434.6000 MHz |
| Transmission Power | 9±1dBm (PA Off) / 18±1dBm (PA On) |
| Transmission Distance (LoS) | 100 m |
| Node ID | 1 ~ 31 |
| Working Duty | 1, 10, 30, or 60 Seconds |
| Antenna | |
| Type | Built-in Omni-directional antenna |
| Power | |
| Consumption | 3W |
| Input Type | Three phase 4 wire x1, 100 - 480 VAC (58 - 277 VAC single phase) |
| Mechanical | |
| Dimensions (mm) | 85 x 184 x 47 (W x L x H) |
| Installation | Wall-mount |
| Ingress Protection Rating | IP33 |
| Environment | |
| Operating Temperature | -30 °C ~ +50 °C |
| Storage Temperature | -40 °C ~ +55 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
