iWSN-9601-360-ME-IP33 Wireless Single-Phase 6-Loop Power Meter
Wireless single-phase 6-loop power meter with six 400 A split-core CTs (36 mm aperture). It uses a 433 MHz radio link and draws its power from the measured voltage cable.
- Single-phase, 6-loop AC measurement with one voltage input and six 400 A split CTs (36 mm inside diameter)
- Self-powered from the measured voltage cable (58 - 277 VAC), with no extra power wiring
- 433 MHz wireless link with up to 64 sub-networks and a 3-minute history data cache
- Bi-directional kWh measurement with true RMS voltage and current calculations
- Built-in RTC adds a timestamp to each measured data point
- Update rate selectable at 1, 10, 30 or 60 seconds
13 782,90 kr per st.
| 1–9 st. | 13 782,90 kr | |
|---|---|---|
| 10–30 st. | 13 372,96 kr | −3 % |
| 31+ st. | 13 095,97 kr | −5 % |
Produktinformation "iWSN-9601-360-ME-IP33 Wireless Single-Phase 6-Loop Power Meter"
iWSN-9601-360-ME-IP33 CR is a wireless single-phase power meter that monitors six AC circuits from one voltage input. Each loop is measured with a 400 A split current transformer, so one meter can cover several machines or process loads fed from the same AC source. Measured values include true RMS voltage and current, active power, active energy, power factor and frequency.

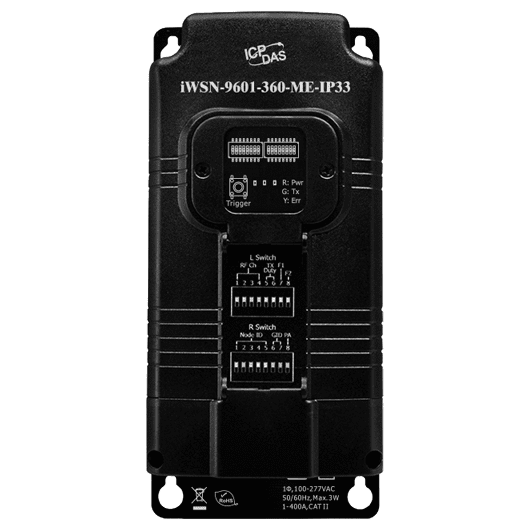

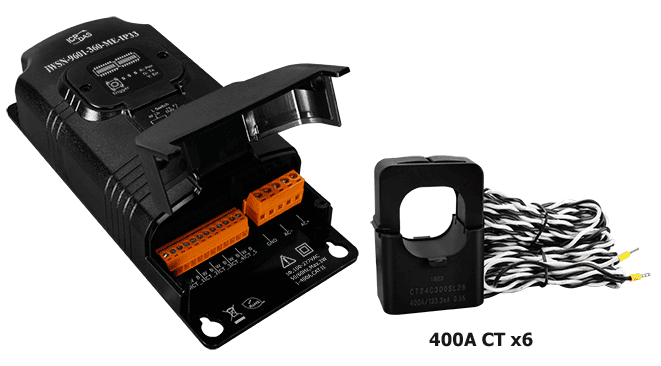

This variant is supplied with six CTs rated for 400 A with a 36 mm inside diameter and 8 m wire leads. The meter is powered from the measured voltage cable, so no separate supply wiring is needed, which simplifies installation where quick setup or distributed deployment is required. Data is sent over a 433 MHz radio link with a 3-minute history cache to supplement missed data.

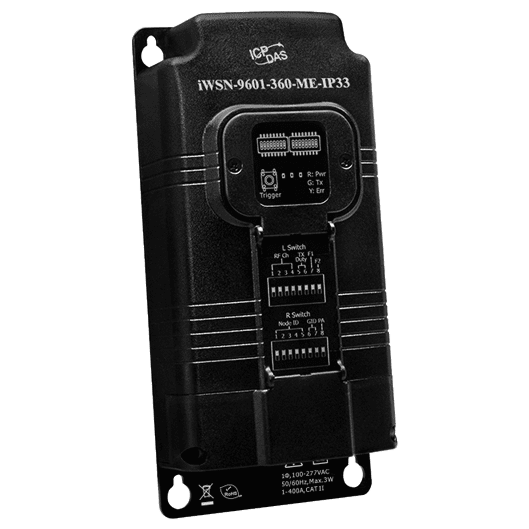

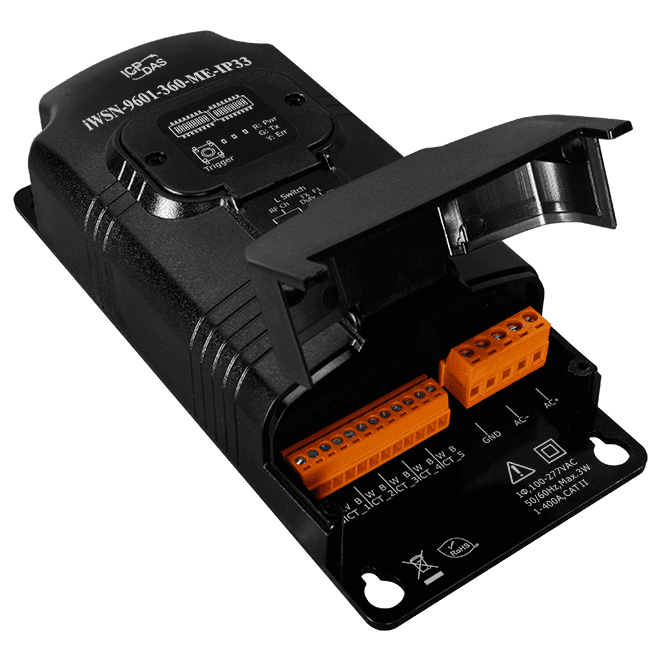

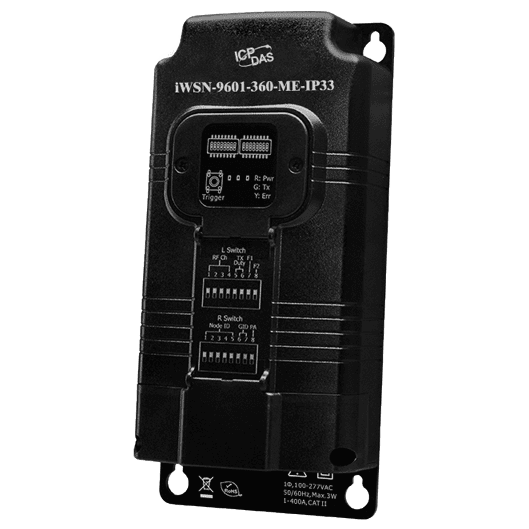

The housing is rated IP33 and is intended for wall mounting. Its connector cover reduces exposure of live connections, and a built-in 2 A fuse protects the main circuit. Settings are configured with DIP switches.
Applications
- Machine and process power efficiency improvement
- Power information administration
- Calculation of carbon emission
- Predictive maintenance
- Big data analysis of power consumption
| Product type: | Power meter |
|---|---|
| Interface: | 433 MHz wireless |
| Power input: | 58 - 277 VAC |
| Operating temperature: | -30 ~ +50 °C |
| Mounting: | Wall-mount |
| Housing: | IP33 |
Specifikationer
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | +/- 500 V |
| ESD (IEC 61000-4-2) | +/- 4 kV Contact |
| LED Indicators | |
| Status | 1 x Power 1 x Tx 1 x Error |
| AC Power Measurement | |
| Wiring | 1P2W-1CT |
| Loops | 6 |
| Input Voltage | 58 - 277 VAC |
| Input Current | iWSN9601-160-MEIP33: CTØ16 mm (1 A ~ 100 A) iWSN9601-240-MEIP33: CTØ24 mm (1 A ~ 200 A) iWSN9601-360-MEIP33: CTØ36 mm (1 A ~ 400 A) |
| Input Frequency | 50/60 Hz |
| Wh Accuracy | Better than 1% (PF=1) |
| Power Parameter Measurement | True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Power Factor (PF), Frequency |
| Data Update Rate | 1, 10, 30, or 60 Seconds |
| RF | |
| Channels | 0 ~ 15 |
| Group ID | 0 ~ 3 |
| Radio Frequency | 433.1000 ~ 434.6000 MHz |
| Transmission Power | 9±1dBm (PA Off) / 18±1dBm (PA On) |
| Transmission Distance (LoS) | 100 m |
| Node ID | 1 ~ 31 |
| Working Duty | 1, 10, 30, or 60 Seconds |
| Antenna | |
| Type | Built-in Omni-directional antenna |
| Power | |
| Consumption | 3W |
| Input Type | Single phase 58 - 277 VAC |
| Mechanical | |
| Dimensions (mm) | 85 x 184 x 47 (W x L x H) |
| Installation | Wall-mount |
| Ingress Protection Rating | IP33 |
| Environment | |
| Operating Temperature | -30 °C ~ +50 °C |
| Storage Temperature | -40 °C ~ +55 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
