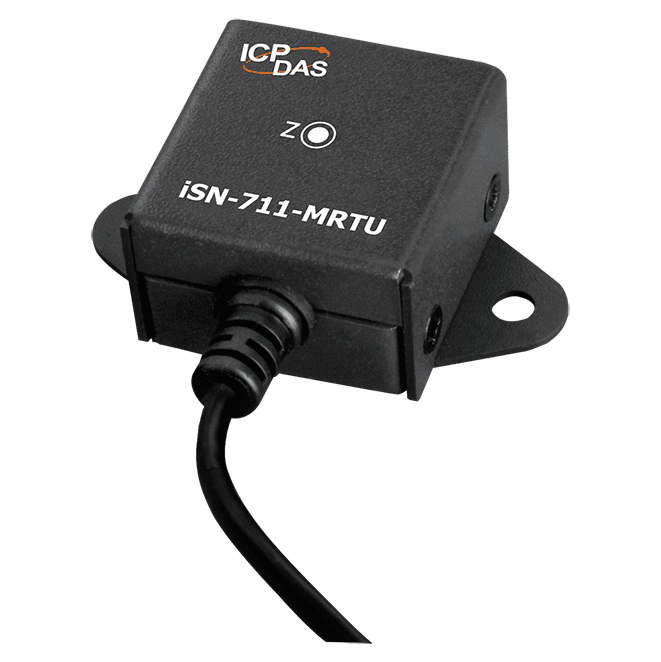

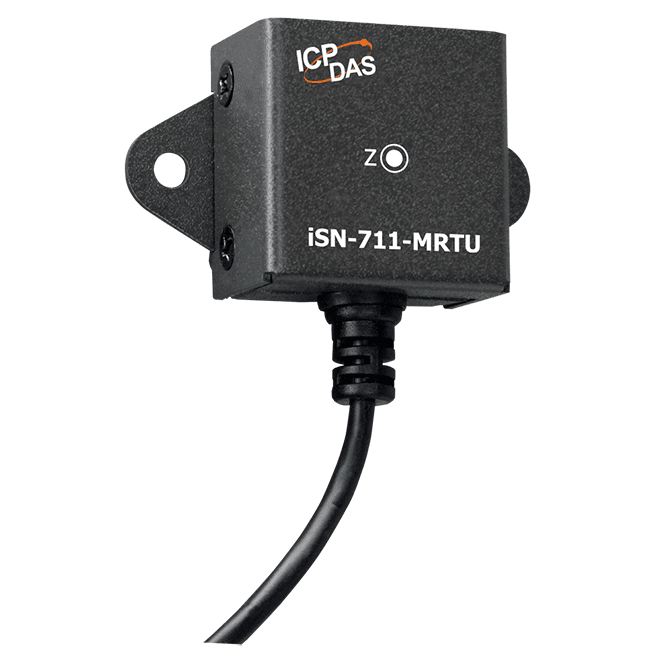

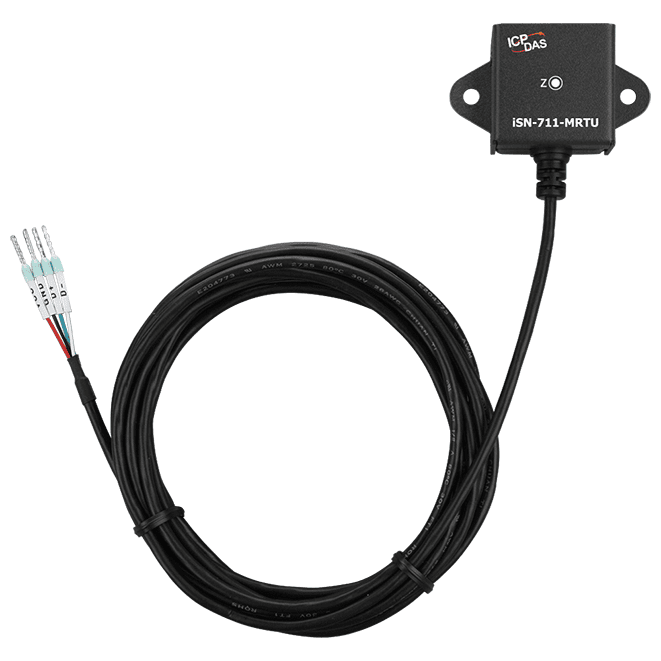

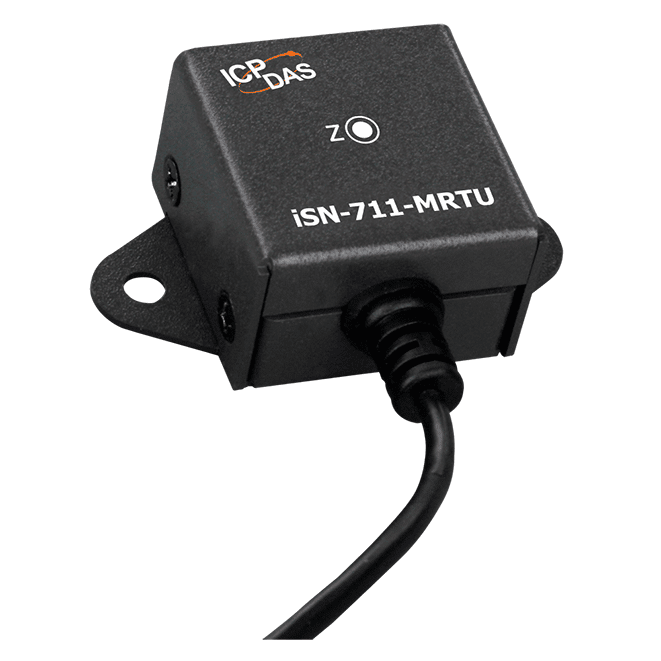

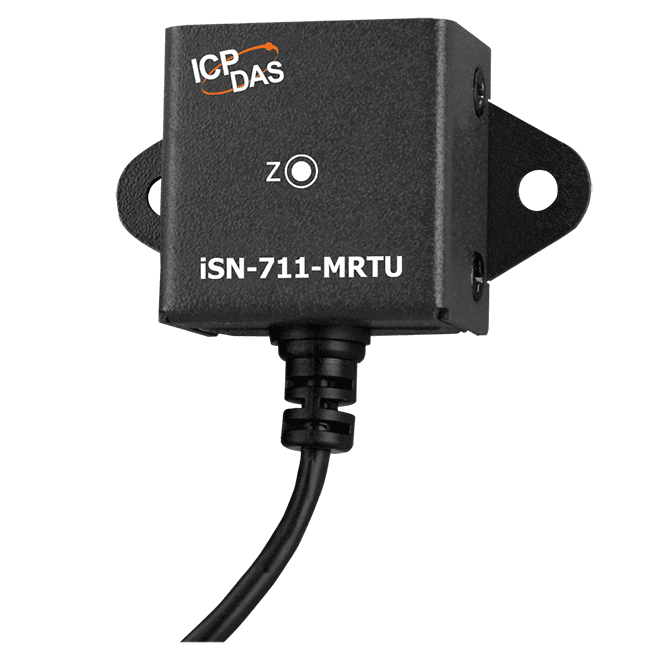

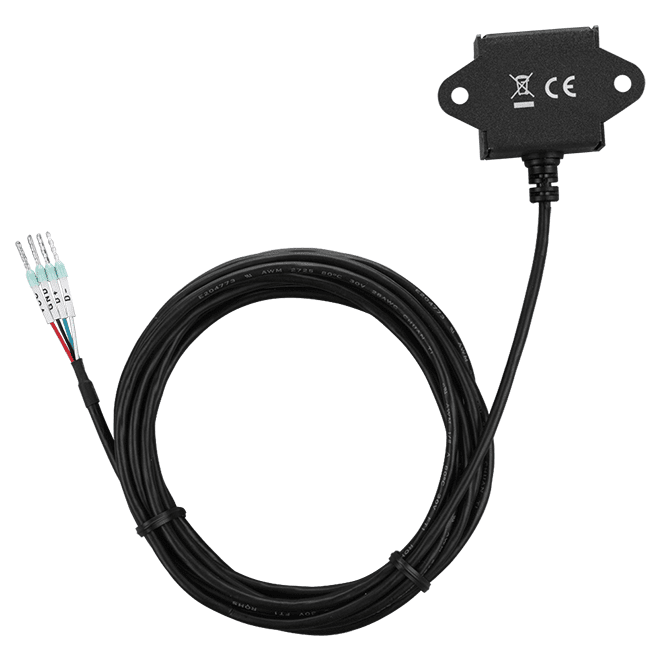

iSN-711-MRTU Single-Axis MEMS Vibration Sensor, Modbus RTU RS-485
Single-axis MEMS vibration sensor module with an RS-485 interface running Modbus RTU slave protocol, for real-time vibration monitoring of plant equipment.
- Single-axis MEMS accelerometer, ±8g amplitude range
- Frequency range 6 Hz ~ 1 kHz, suited to low-frequency vibration
- One RS-485 port with Modbus RTU slave protocol
- Selectable baud rates from 9600 to 115200 bps, data format N, 8, 1
- Powered from +10 ~ +30 VDC, 0.3 W consumption
- Wall-mount or magnet adsorption installation
3 301,69 kr per st.
| 1–9 st. | 3 301,69 kr | |
|---|---|---|
| 10–30 st. | 3 201,98 kr | −3 % |
| 31+ st. | 3 135,50 kr | −5 % |
Produktinformation "iSN-711-MRTU Single-Axis MEMS Vibration Sensor, Modbus RTU RS-485"
The iSN-711-MRTU CR is a self-contained vibration sensor module built around an onboard MEMS accelerometer. It measures along one axis, with an amplitude range of ±8g and a frequency range of 6 Hz ~ 1 kHz, which suits low-frequency vibration measurement on rotating and reciprocating machinery.
Readings are made available over a single RS-485 port that acts as a Modbus RTU slave. A host controller or PLC can poll the sensor with standard Modbus RTU requests, using the serial settings N, 8, 1 and any baud rate from 9600 to 115200 bps. The module is powered from +10 ~ +30 VDC and draws 0.3 W.
Mounting is flexible, with wall-mount or magnet adsorption options, and the housing measures 51 x 30 x 19 mm (W x L x H). It is rated for operating temperatures of -25 °C ~ +75 °C and humidity of 10 ~ 90% RH, non-condensing. Typical uses include monitoring production line equipment, motors and pumps, and other vibration monitoring systems.
Applications
- Vibration monitoring system
- Production line equipment monitoring
- Motor and pump vibration monitoring
- Real-time factory machinery monitoring
| Product type: | Vibration sensor module |
|---|---|
| Interface: | RS-485 |
| Protocol: | Modbus RTU |
| Ports: | 1 |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | Wall-mount, magnet adsorption |
Specifikationer
| Vibration Measurement | |
|---|---|
| Axes | 1 |
| Sensor Type | MEMS |
| Amplitude Range | ±8g |
| Frequency Range | 6 Hz ~ 1 kHz |
| COM Ports | |
| Ports | 1 x RS-485(D+, D-) |
| Baud Rate | 9600, 19200, 38400, 57600, 115200 bps |
| Data Format | N, 8, 1 |
| Protocol | Modbus RTU |
| Power | |
| Input Range | +10 ~ +30 VDC |
| Consumption | 0.3 W |
| Mechanical | |
| Dimensions (mm) | 51 x 30 x 19 (W x L x H) |
| Installation | Wall-mount or magnet adsorption |
| Environment | |
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
