iKAN-116S Industrial LED Message Display, 16-Char Single-Row, Modbus
Small single-row industrial LED message display with 16 ASCII or 8 Unicode characters, seven colours, dual Ethernet and RS-485 ports, and a web-based configuration interface.
- 16 ASCII or 8 Unicode characters on a single row, with a 9.6 cm text height
- Seven colours: red, blue, yellow, green, light blue, purple and white
- Stores 128 common messages with priority levels, combining text and up to 168 variables
- 2 × RJ-45 10/100 Base-TX Ethernet and 2 × RS-485 ports, with Modbus RTU master/slave on serial
- Web-based user interface and built-in real-time clock
- Data pool of 40 coil, 64 float and 64 integer values
11 711,03 kr per st.
| 1–9 st. | 11 711,03 kr | |
|---|---|---|
| 10–30 st. | 11 356,49 kr | −3 % |
| 31+ st. | 11 123,82 kr | −5 % |
Produktinformation "iKAN-116S Industrial LED Message Display, 16-Char Single-Row, Modbus"

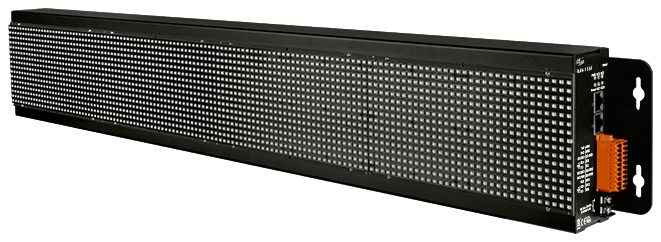

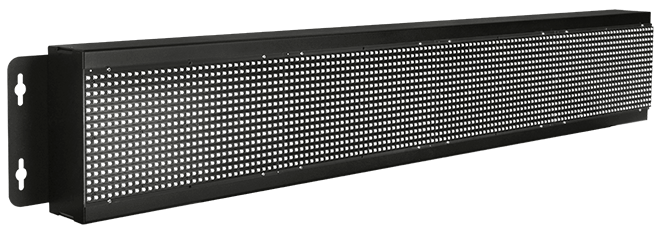

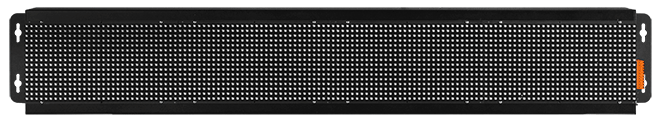

The iKAN-116S CR is a compact single-row LED message display for engineers who need to show live PLC data or operator text on the factory floor. It shows 16 ASCII or 8 Unicode characters with a 9.6 cm text height, available in seven colours.
Messages can be stored locally: up to 128 common messages with user-defined priorities, and each message can combine text with up to 168 variables. The display is configured through a web-based interface and can be controlled from a PLC, PC or smartphone. A built-in real-time clock supports date and time display.

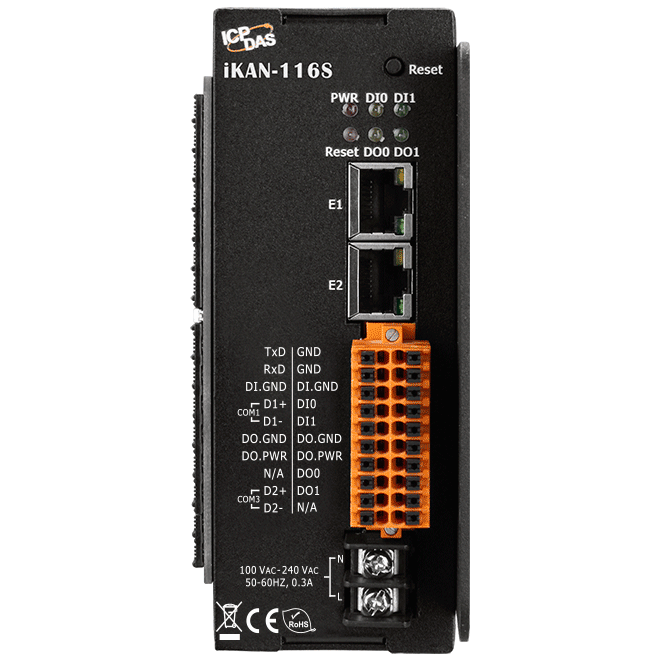

Connectivity comprises two RJ-45 10/100 Base-TX Ethernet ports and two RS-485 ports, with Modbus RTU master and slave operation on the serial side. The ordering entry for this code specifies the Modbus protocol. The aluminium housing is designed for wall mounting and operates from 0 ~ +60°C.
Applications
- PLC HMI message display, showing real-time PLC data as text
- Indoor air quality display of CO, CO2, PM2.5, temperature and humidity from ICP DAS DL sensor modules
| Product type: | LED message display |
|---|---|
| Interface: | 2 × RJ-45 10/100 Base-TX, 2 × RS-485 |
| Protocol: | Modbus |
| Ports: | 4 |
| Power input: | 100 ~ 240 VAC |
| Operating temperature: | 0 ~ +60°C |
| Mounting: | Wall |
| Housing: | Aluminum |
Specifikationer
| Display | |
|---|---|
| Size | iKAN-116S: Row: 1，ASCII Characters: 16，Unicode Characters: 8 iKAN-124S: Row: 1，ASCII Characters: 24，Unicode Characters: 12 |
| Real Time Clock | Date and time, 24 hour format including second, minute, hour, date, day of the week, month, year |
| Character Sets | 16 x 16 Unicode or 8 x 16 ASCII |
| Color | Red, Blue, Yellow, Green, Light Blue, Purple or White |
| Data Pool | 40 Coil values, 64 Float values, and 64 Integer values |
| Message Pool | 128 common messages with user-defined priority levels, Up to 20 Unicode characters or 50 ASCII characters each * For complex characters such as Thai, Hindi or Arabic, please contact our sales team. |
| Ethernet | |
| Ports | 2 × RJ-45, 10/100 Base-TX |
| Protocol | Modbus Master/Slave, Modbus TCP Master/Slave, GCI, HTTP/HTTPS, MQTT, EtherNet/IP and Redfish |
| Configuration | Web-based User Interface |
| COM Ports | |
| Ports | 2 × RS-485 |
| Baud Rate | 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 |
| Data Format | N81, E81, O81 |
| Protocol | Modbus RTU Master/Slave |
| Power | |
| Input Range | 100 ~ 240 VAC |
| Consumption | iKAN-116S: 0.3 A @ AC 120 V iKAN-124S: 0.35 A @ AC 120V |
| Mechanical | |
| Casing | Aluminum |
| Dimensions (mm) | iKAN-116S: 834 x 130 x 54 (W x L x D) iKAN-124S: 1218 x 130 x 54 (W x L x D) |
| Installation | Wall mounting |
| Weight | iKAN-116S: 2 Kg iKAN-124S: 2.5 Kg |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -10 ~ +75°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
