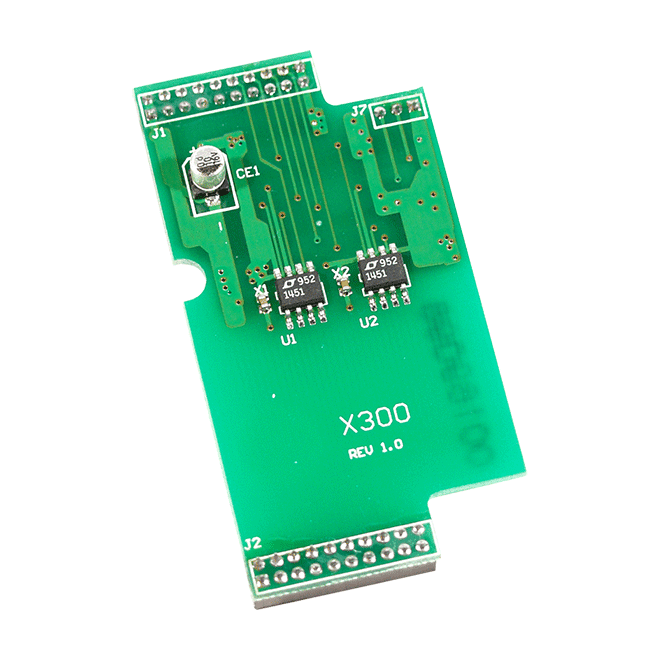

X300 2-Channel Analog Output X-Board, 12-bit 0 ~ 4.095 V
Two-channel, non-isolated 12-bit voltage output X-board (0 ~ 4.095 V) for the I-7188XC controller, part of the X-board series for I-7188 and uPAC-7186EX controllers.
- Two non-isolated analogue voltage outputs
- 12-bit resolution with a 0 ~ 4.095 VDC output range
- Voltage output capability of 5 mA
- Designed as an X-board for the I-7188XC controller
- Compact 38 mm x 64 mm board size
- Operating temperature -25 ~ +75 °C
487,50 kr per st.
| 1–9 st. | 487,50 kr | |
|---|---|---|
| 10–30 st. | 476,42 kr | −2 % |
| 31+ st. | 465,34 kr | −5 % |
Produktinformation "X300 2-Channel Analog Output X-Board, 12-bit 0 ~ 4.095 V"
The X300 adds two analogue voltage outputs to a compatible controller through a plug-in X-board. Each channel uses a 12-bit D/A stage with an output range of 0 ~ 4.095 VDC, which suits control signals that need a simple, known voltage span.
The X300 is specifically listed for the I-7188XC. The wider X-board series covers the I-7188XA, I-7188XB, I-7188XG, I-7188EG, I-7188EX and several uPAC-7186EX variants, so check the host model before ordering. Only one X-board can be fitted to each µPAC.
- Non-isolated outputs with a 5 mA voltage output capability per the source data
- Compact 38 mm x 64 mm board footprint
- Operating range -25 ~ +75 °C, storage -40 ~ +80 °C
Applications
- Providing 0 ~ 4.095 V analogue control outputs on an I-7188XC controller
| Product type: | X-board |
|---|---|
| Isolation: | None |
| Operating temperature: | -25 ~ +75 °C |
Specifikationer
| Analog Output | |
|---|---|
| Channels | 2 |
| Type | Voltage |
| Range | 0 ~ 4.095 V |
| Resolution | 12-bit |
| Voltage Output Capability | 5 mA |
| Isolation | None |
| Mechanical | |
| Dimensions (mm) | 38 mm x 64 mm |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 90 %, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
