X107 X-board, 6-ch Digital Input and 7-ch Digital Output

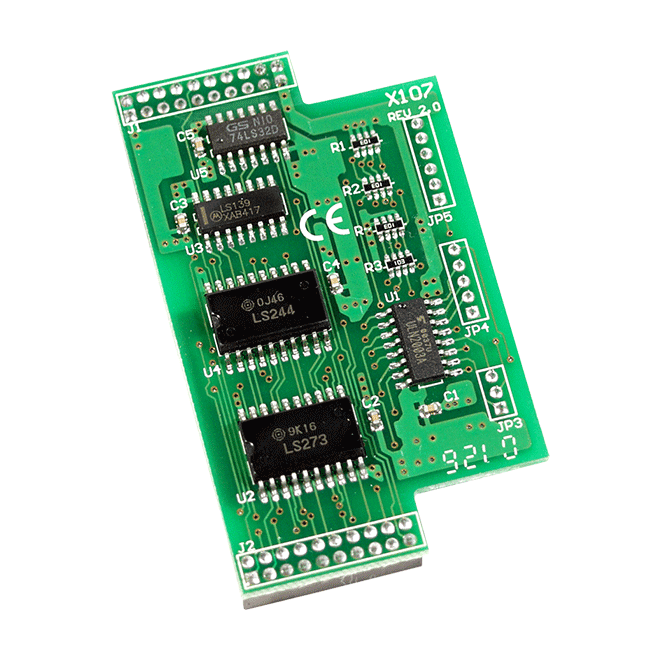

X107 CR X-board with 6 non-isolated digital inputs and 7 non-isolated open-collector digital outputs for I-7188XB, I-7188XG, I-7188EX, I-7188EG and uPAC-7186EX series controllers.
- 6 non-isolated digital input channels, ON 3.5 ~ 30 VDC, OFF 1 VDC max.
- 7 non-isolated digital output channels, open collector, TTL type
- Output load up to ≤ +30 VDC and 100 mA
- Designed for I-7188XB, I-7188XG, I-7188EX, I-7188EG and uPAC-7186EX series
- Consumption of 0.3 W
- Operating temperature -25 ~ +75 °C, storage -40 ~ +80 °C
354,54 kr per st.
| 1–9 st. | 354,54 kr | |
|---|---|---|
| 10–30 st. | 343,46 kr | −3 % |
| 31+ st. | 332,39 kr | −6 % |
Produktinformation "X107 X-board, 6-ch Digital Input and 7-ch Digital Output"
X107 CR adds six digital inputs and seven digital outputs to compatible I-7188 and uPAC-7186EX series controllers through a plug-in X-board. It suits projects where extra discrete signals are needed without changing the controller itself.
The digital inputs accept an ON level of 3.5 ~ 30 VDC and an OFF level of 1 VDC max. The seven outputs are open collector, TTL type, with a load voltage of up to +30 VDC and a load current of 100 mA per channel. Both input and output sides are non-isolated.
Each µPAC accepts only one X-board, so plan the slot allocation when specifying a system. The module draws 0.3 W and measures 38 mm x 64 mm, with an operating range of -25 ~ +75 °C.
Applications
- Adding discrete inputs and outputs to compatible I-7188 series controllers
- Extending digital I/O on uPAC-7186EX series controllers
| Product type: | X-board |
|---|---|
| Digital inputs: | 6 |
| Digital outputs: | 7 |
| Isolation: | None |
| Operating temperature: | -25 ~ +75 °C |
Specifikationer
| Digital Input | |
|---|---|
| Channels | 6 |
| ON Voltage Level | 3.5 ~ 30 VDC |
| OFF Voltage Level | 1 VDC Max. |
| Isolation | None |
| Digital Output | |
| Channels | 7 |
| Type | Open Collector, TTL |
| Load Voltage | ≤ +30 VDC |
| Load Current | 100 mA |
| Isolation | None |
| Power | |
| Consumption | 0.3 W |
| Mechanical | |
| Dimensions (mm) | 38 mm x 64 mm |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 90 %, Non-condensing |
