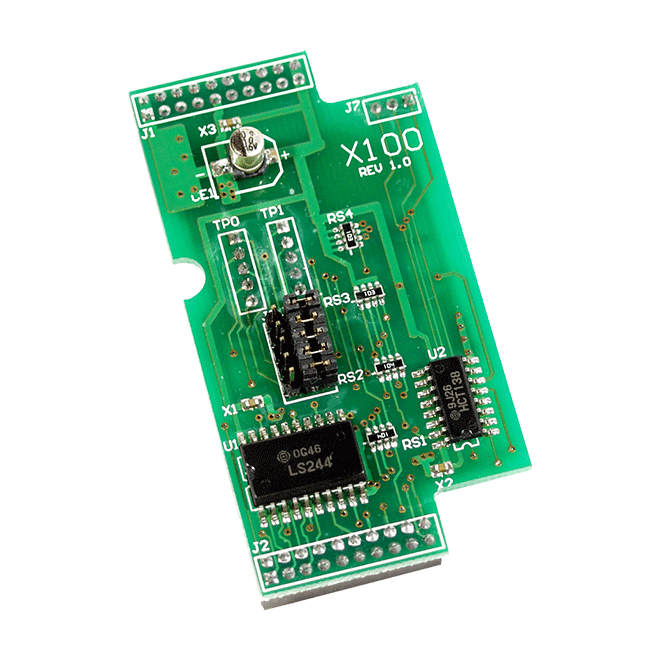

X100 8-ch Digital Input X-board for I-7188XC
8-channel non-isolated digital input X-board for the I-7188XC controller, with a 3.5 to 30 VDC ON level and one X-board per µPAC.
- Eight non-isolated digital input channels
- ON voltage level 3.5 to 30 VDC; OFF level 1 VDC max.
- Designed for the I-7188XC controller
- Only one X-board per µPAC
- Low power consumption, 0.3 W
- Compact 38 mm x 64 mm board
188,35 kr per st.
| 1–9 st. | 188,35 kr | |
|---|---|---|
| 10–30 st. | 188,35 kr | |
| 31+ st. | 177,27 kr | −6 % |
Produktinformation "X100 8-ch Digital Input X-board for I-7188XC"
X100 adds eight non-isolated digital input channels to a compatible µPAC controller. It is designed for the I-7188XC, so engineers needing extra discrete inputs on that platform can fit it directly without a separate I/O unit.
Each channel recognises an ON state from 3.5 to 30 VDC and an OFF state at 1 VDC maximum. The board draws 0.3 W and measures 38 mm x 64 mm. It operates from -25 to +75 °C and is rated for 5 to 90 % humidity, non-condensing.
Only one X-board can be fitted to each µPAC, so plan slot allocation before ordering. Because the inputs are not isolated, check the wiring arrangement against your system design.
Applications
- Digital input expansion for the I-7188XC controller
| Product type: | X-board |
|---|---|
| Digital inputs: | 8 |
| Isolation: | None |
| Operating temperature: | -25 ~ +75 °C |
Specifikationer
| Digital Input | |
|---|---|
| Channels | 8 |
| ON Voltage Level | 3.5 ~ 30 VDC |
| OFF Voltage Level | 1 VDC Max. |
| Isolation | None |
| Power | |
| Consumption | 0.3 W |
| Mechanical | |
| Dimensions (mm) | 38 mm x 64 mm |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 90 %, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
