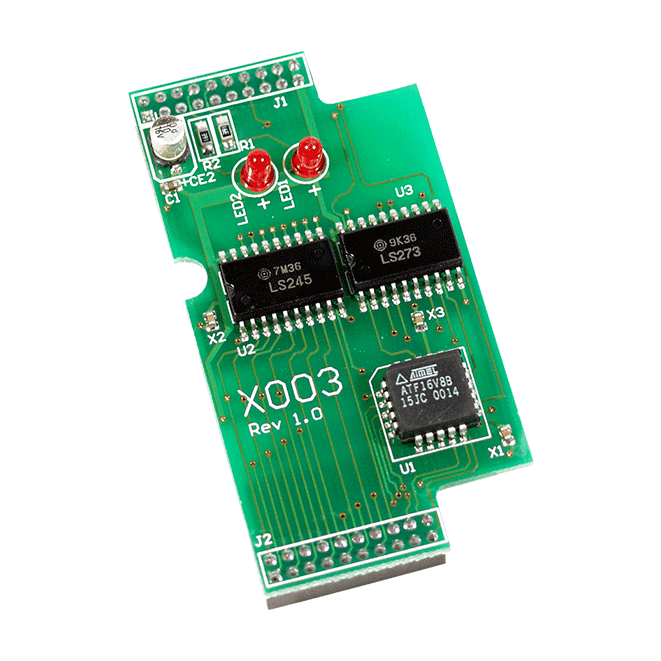

X003 Self-Test Board for I-7188 and uPAC-7186EX Series Controllers
Self-test board for the I-7188XB, I-7188XC, I-7188XG, I-7188EX, I-7188EG and uPAC-7186EX series, with 0.2 W power consumption and a -25 ~ +75 °C operating range.
- Self-test board for I-7188XB, I-7188XC, I-7188XG, I-7188EX, I-7188EG and uPAC-7186EX series
- Testing board for quick functional checks of supported controllers
- Low power consumption of 0.2 W
- Compact footprint of 38 mm x 64 mm
- Operating temperature -25 ~ +75 °C
- Storage temperature -40 ~ +80 °C and humidity 5 ~ 90 %, non-condensing
155,11 kr per st.
| 1–9 st. | 155,11 kr | |
|---|---|---|
| 10–30 st. | 144,03 kr | −7 % |
| 31+ st. | 144,03 kr | −7 % |
Produktinformation "X003 Self-Test Board for I-7188 and uPAC-7186EX Series Controllers"
X003 is a compact testing board used to run a self-test on controllers from the I-7188XB, I-7188XC, I-7188XG, I-7188EX, I-7188EG and uPAC-7186EX series. It gives engineers a simple way to check a controller's basic operation without building a dedicated test setup.
The board is small at 38 mm x 64 mm and draws only 0.2 W, so it adds little load or space requirement to a test bench. It is rated for an operating temperature of -25 ~ +75 °C, with storage between -40 ~ +80 °C and humidity of 5 ~ 90 %, non-condensing.
The board is WEEE certified and is listed as part of the X-board range of PAC I/O modules, alongside the other X000 to X006 items in the series.
Applications
- Self-testing of I-7188XB, I-7188XC, I-7188XG, I-7188EX, I-7188EG and uPAC-7186EX series controllers
- Functional checks on PAC I/O systems during bench testing
| Product type: | Testing board |
|---|---|
| Operating temperature: | -25 ~ +75 °C |
Specifikationer
| Power | |
|---|---|
| Consumption | 0.2 W |
| Mechanical | |
| Dimensions (mm) | 38 mm x 64 mm |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 90 %, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
