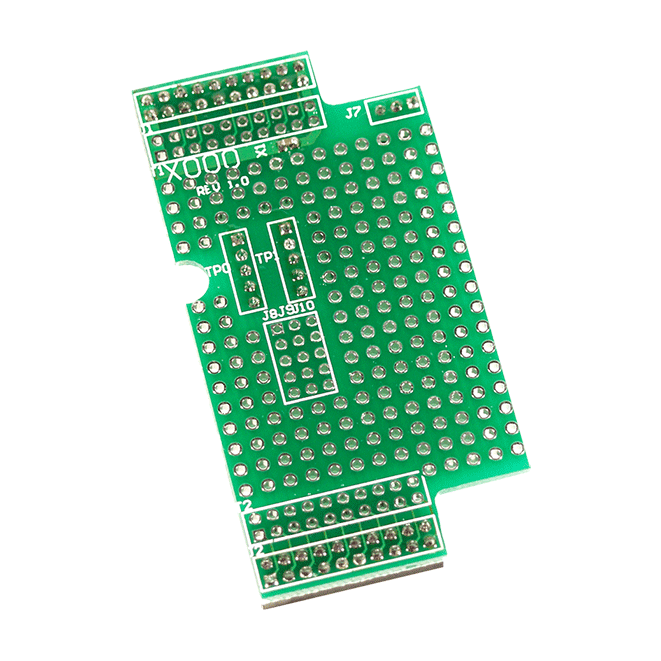

X000 Prototype Board (Small Size) for I-7188 and uPAC-7186EX Series
Small-size prototype perfboard for building custom circuits on I-7188XB, I-7188XC, I-7188XG, I-7188EX, I-7188EG and uPAC-7186EX series controllers.
- Prototype perfboard for I-7188XB, I-7188XC, I-7188XG, I-7188EX, I-7188EG and uPAC-7186EX series
- Small size: 38 mm x 64 mm
- Operating temperature -25 ~ +75 °C
- Storage temperature -40 ~ +80 °C
- Humidity 5 ~ 90 %, non-condensing
- WEEE certified
155,11 kr per st.
| 1–9 st. | 155,11 kr | |
|---|---|---|
| 10–30 st. | 144,03 kr | −7 % |
| 31+ st. | 144,03 kr | −7 % |
Produktinformation "X000 Prototype Board (Small Size) for I-7188 and uPAC-7186EX Series"
The X000 is a small-size prototype board, a perfboard designed for the I-7188XB, I-7188XC, I-7188XG, I-7188EX, I-7188EG and uPAC-7186EX series. It gives engineers a compact platform for prototyping their own interface circuitry alongside these controllers.
At 38 mm x 64 mm, the X000 is the smallest board in the X-board range and suits projects where space on the controller side is limited. It is rated for an operating temperature of -25 ~ +75 °C and a storage temperature of -40 ~ +80 °C, with humidity handling of 5 ~ 90 %, non-condensing.
- Prototype board for the listed I-7188 and uPAC-7186EX series
- Small form factor at 38 mm x 64 mm
Applications
- Prototyping custom interface circuits for I-7188 and uPAC-7186EX series controllers
| Product type: | Prototype board |
|---|---|
| Operating temperature: | -25 ~ +75 °C |
Specifikationer
| Mechanical | |
|---|---|
| Dimensions (mm) | 38 mm x 64 mm |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 90 %, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
