WP-8128-CE7 Win-GRAF PAC, 1-Slot Cortex-A8 1 GHz with Windows CE 7.0
1-slot Win-GRAF PAC with a 1.0 GHz Cortex-A8 CPU and Windows CE 7.0 for IEC 61131-3 logic control, with I-8K and I-87K I/O expansion.
- 1.0 GHz Cortex-A8 CPU with 512 MB DDR3 SDRAM and 256 MB Flash
- Windows CE 7.0 with embedded Win-GRAF SoftLogic (IEC 61131-3)
- Hard real-time capability and deterministic control
- One expansion slot for I-8K (parallel) or I-87K (serial) I/O modules
- Modbus RTU/TCP master and slave, OPC UA server and DCON protocols
- VGA output, 2 x 10/100/1000 Base-TX Ethernet, RS-232, isolated RS-485 and 2 x USB 2.0
Den här artikeln prissätts per order. Skicka oss antalet så svarar vi med pris och leveranstid.
Begär offert
Produkten finns inte längre tillgänglig
Produktinformation "WP-8128-CE7 Win-GRAF PAC, 1-Slot Cortex-A8 1 GHz with Windows CE 7.0"

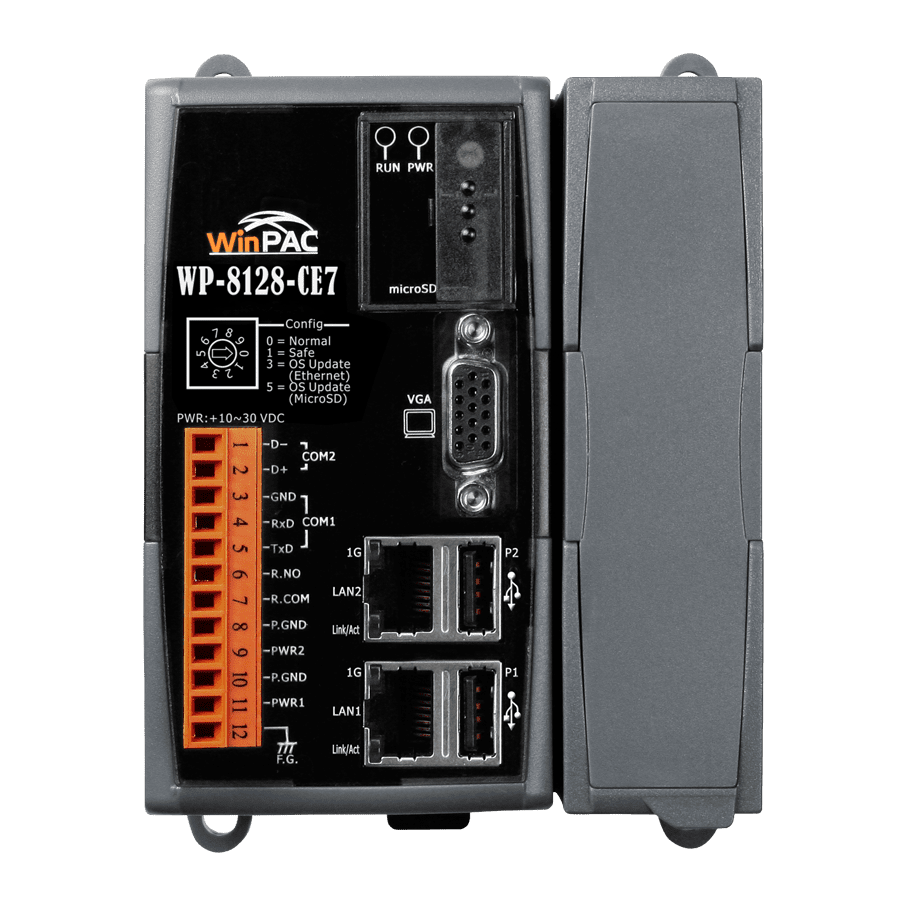

The WP-8128-CE7 CR is the single-slot member of the WinPAC-8000-CE7 family, combining a 1.0 GHz Cortex-A8 controller with Windows CE 7.0 and an embedded Win-GRAF SoftLogic runtime. It suits engineers who want IEC 61131-3 control logic running on a PC-style platform, with one expansion slot for I-8K (parallel) or I-87K (serial) I/O modules.
Windows CE 7.0 supports hard real-time operation and deterministic control, and the unit offers a PC-like display and operating environment. Its VGA output, dual Ethernet ports, RS-232 and isolated RS-485 ports, and two USB 2.0 ports allow local visualisation and multiple communication links. Modbus RTU/TCP, OPC UA and DCON are supported.
The housing is plastic and the unit mounts on a DIN rail or wall. It draws 7.3 W, accepts +10 ~ 30 VDC with redundant power inputs, and is rated for -25 ~ +75 °C operation. Dimensions are 95 x 132 x 111 mm (W x L x H).
Applications
- Logic control and automation tasks using IEC 61131-3 programming
- Local HMI display via VGA output with eLogger HMI
- Data logging and file access
- Modbus-based communication with field devices and supervisory systems
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232, RS-485, USB, VGA |
| Protocol: | Modbus TCP |
| Ports: | 6 |
| Isolation: | RS-485 3000 VDC |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Plastic |
Specifikationer
| Software | |
|---|---|
| OS | Windows CE 7.0 |
| Protocol | • OPC UA Server • Modbus TCP/IP Master/Slave • Modbus RTU Master/Slave • Modbus ASCII Master • DCON Protocols • User-Defined Communication Protocols |
| Development | Embedded Win-GRAF SoftLogic (IEC 61131-3) |
| Service | FTP Server, Web Server (Supports VB script, JAVA script), Embedded SQL Server |
| Function | • eLogger HMI • Application Protection • Data Binding • On Line Change • Schedule Control • Retain Variables • File Access and Data Log |
| Framework Support | .Net Compact Framework 3.5 |
| Multilanguage Support | English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK | Dll for VC, Dll for Visual Studio.Net 2008 |
| Main Unit | |
| CPU | Cortex-A8, 1.0 GHz |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 512 MB DDR3 SDRAM |
| Storage | 256 MB Flash, 4 GB microSD card (up to 32 GB) |
| Non-Volatile Memory | 512 KB MRAM, 16 KB EEPROM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
| Signal | VGA |
| Resolution | 800 x 600, 1024 x 768 |
| LED Indicators | |
| Status | 1x Power, 1 x System/Programmable |
| I/O Expansion | |
| I/O Type | I-8K, I-87K series |
| Slots | WP-8128-CE7: 1 WP-8428-CE7: 4 WP-8828-CE7: 8 |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | Yes, (0 ~ 9) |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
| Ports | 1 x RS-232, 1 x RS-485 (3000 VDC Isolated) |
| USB | |
| Ports | 2 x USB 2.0 |
| Power | |
| Input Range | +10 ~ 30 VDC (1 kV Isolated ) |
| Redundant Power Inputs | Yes |
| Consumption | WP-8128-CE7: 7.3W WP-8428-CE7: 9.1W WP-8828-CE7: 9.6W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | WP-8128-CE7: 95 x 132 x 111 (W x L x H) WP-8428-CE7: 231 x 132 x 111 (W x L x H) WP-8828-CE7: 355 x 132 x 111 (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75°C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
