VXC-114iAU Universal PCI Serial Board, 4 Isolated RS-232 Ports
Universal PCI serial communication card with four isolated RS-232 ports, a 128-byte hardware FIFO per port and speeds up to 115200 bps for PCs.
- Four RS-232 ports on a universal PCI card, supporting 3.3 V/5 V PCI bus
- 2500 VDC photocoupler isolation on each serial port (i version)
- ±4 kV ESD protection (i version)
- 128-byte hardware FIFO per port with full-duplex operation up to 115200 bps
- Up to 128 KB software buffer per COM port under Windows
- Built-in COM-Selector (8-bit DIP switch) or automatic COM number assignment by the driver
1 983,23 kr per st.
| 1–9 st. | 1 983,23 kr | |
|---|---|---|
| 10–30 st. | 1 927,83 kr | −3 % |
| 31+ st. | 1 883,52 kr | −5 % |
Produktinformation "VXC-114iAU Universal PCI Serial Board, 4 Isolated RS-232 Ports"

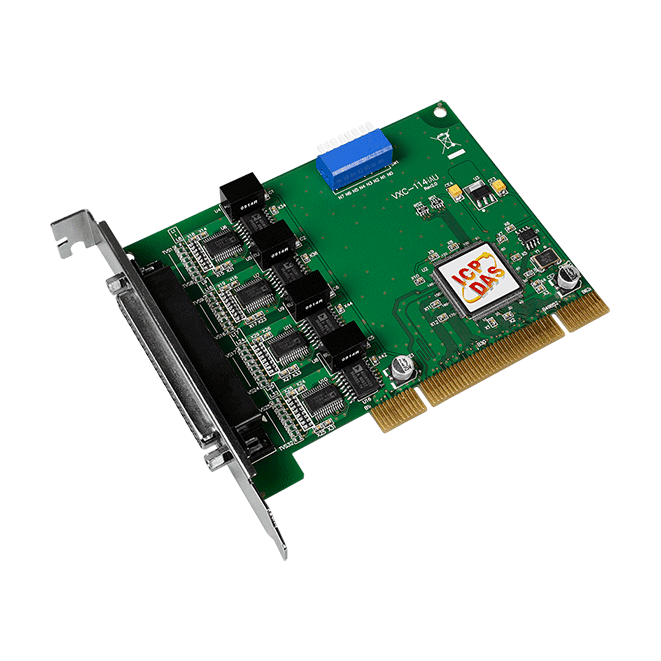

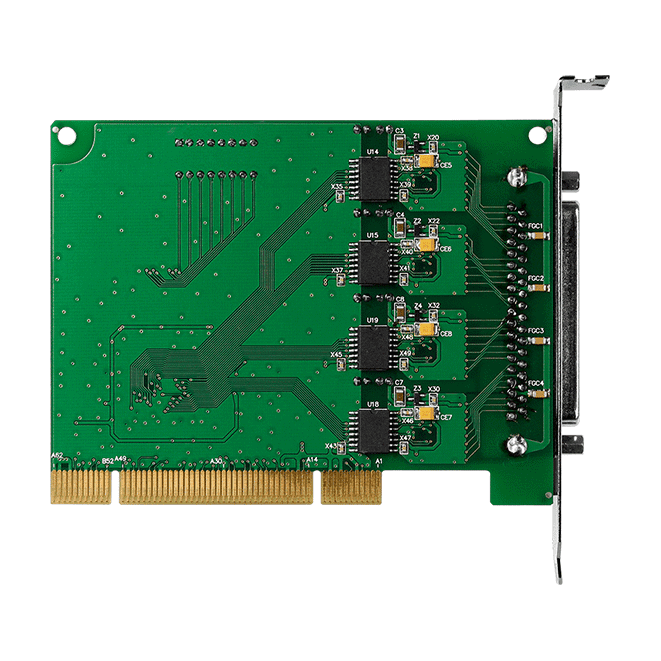

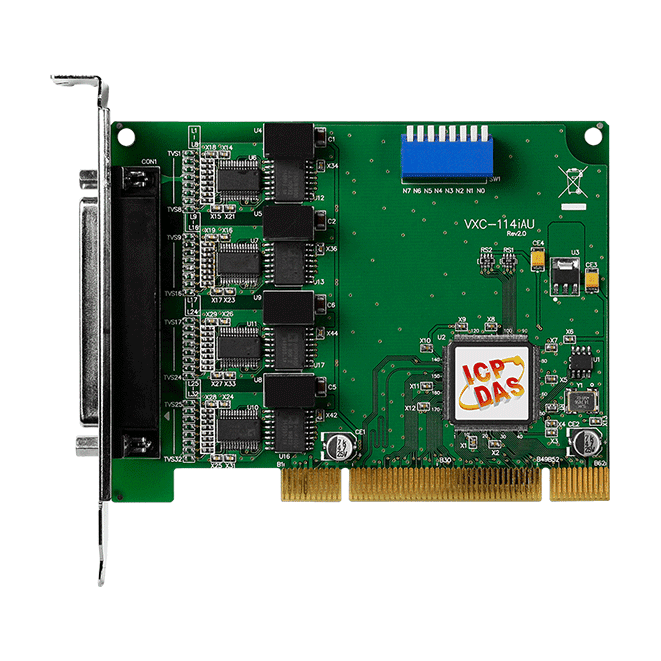

The VXC-114iAU CR adds four RS-232 serial ports to a PC through a universal PCI slot, supporting 3.3 V and 5 V PCI bus signalling. Each port has a 128-byte hardware FIFO and supports full-duplex communication at up to 115200 bps, which suits serial instruments, sensors, printers and scanners that need dedicated COM ports.

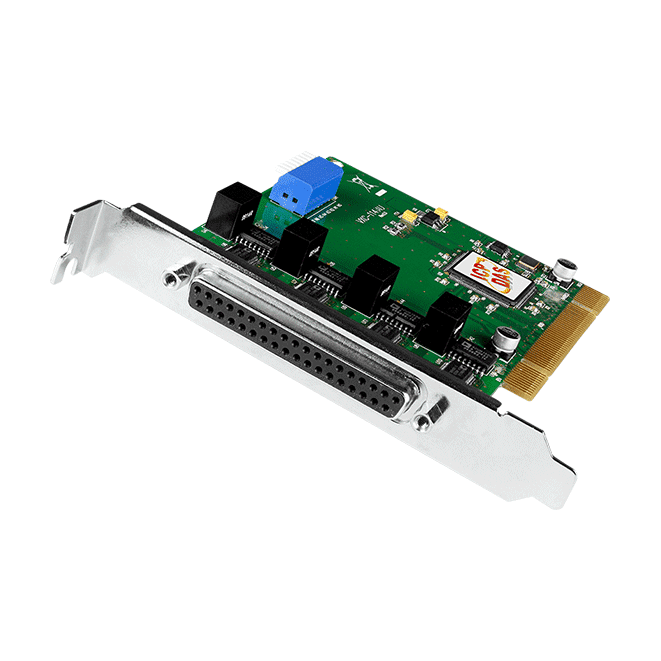

COM port numbers can be assigned manually using the 8-bit DIP switch COM-Selector, or left to the driver to choose an available number. Under Windows the driver provides a software buffer of up to 128 KB per COM port, which helps with large file transfers. The DB-37 female connector is supplied with one CA-4002 connector.
As an i version, the data lines of each port are isolated by on-board photocouplers, rated at 2500 VDC, which helps break ground loops and block voltage spikes. On-board ESD protection (±4 kV) diverts discharge away from sensitive circuitry, protecting the host computer and attached equipment.
Applications
- Industrial Machinery
- Building Automation
- Restaurant Appliances
- Laboratory Equipment & Research
- Industrial Communication
| Product type: | Serial communication board |
|---|---|
| Interface: | RS-232 |
| Ports: | 4 |
| Isolation: | 2500 VDC |
| Operating temperature: | 0 ~ +60 °C |
Specifikationer
| Hardware | |
|---|---|
| Connector | DB-37 (Female) |
| COM-Selector | Yes (8-bit DIP switch) |
| COM Ports | |
| Ports | 4 x RS-232 (TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND) |
| Baud Rate | 50 ~ 115200 bps |
| Parity | None, Even, Odd, Mark, Space |
| Data Bit | 5, 6, 7, 8 |
| Stop Bit | 1, 1.5, 2 |
| FIFO Size | Internal 128 bytes |
| Isolation | 2500 VDC |
| Power | |
| Consumption | 880 mA @ 5 V |
| Mechanical | |
| Dimensions (mm) | 93 x 133 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
