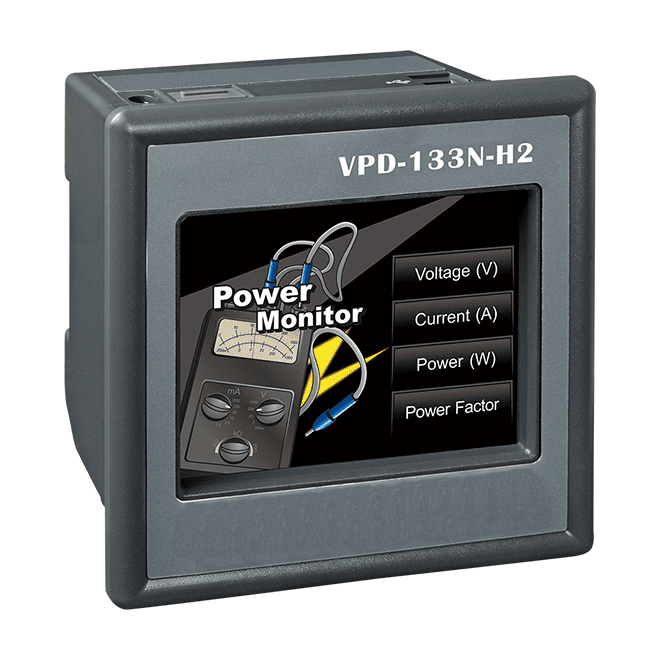

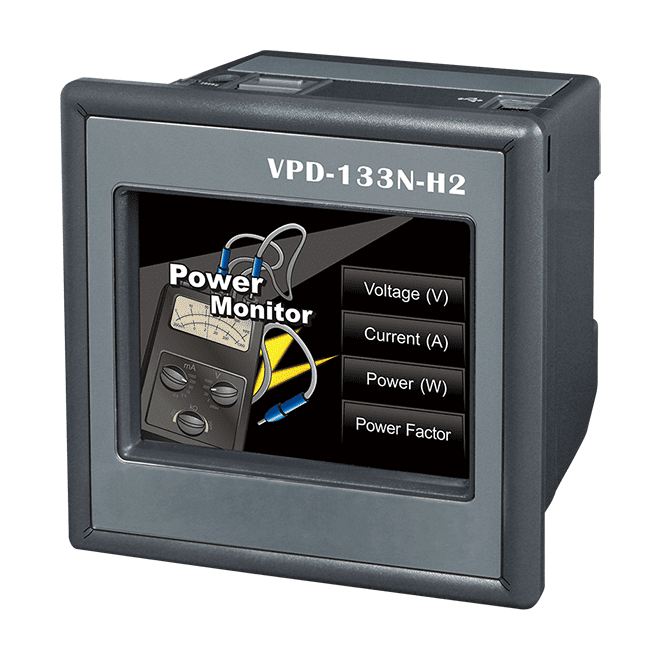

VPD-133N-H2 3.5-inch Touch HMI Device with Ethernet (PoE) and RTC
3.5-inch colour touch HMI with a 240 x 320 TFT display, RS-232/RS-485 and RS-485 serial ports, Ethernet with PoE and a real-time clock, for panel or DIN-rail installation.
- 3.5-inch high-resolution colour touch screen, 240 x 320 pixels, 65535 colours
- Ethernet 10/100 Base-TX (RJ-45) with PoE, IEEE 802.3af Class 1
- 1 x RS-232/RS-485 and 1 x RS-485 serial ports, each with Self-Tuner
- Real-time clock and built-in non-volatile storage (16 MB SDRAM/16 MB Flash)
- IP65 front panel and 12 to 48 VDC terminal block power input
- Free HMIWorks software with Ladder Designer and C language support
3 190,90 kr per st.
| 1–9 st. | 3 190,90 kr | |
|---|---|---|
| 10–30 st. | 3 091,18 kr | −3 % |
| 31+ st. | 3 035,78 kr | −5 % |
Produktinformation "VPD-133N-H2 3.5-inch Touch HMI Device with Ethernet (PoE) and RTC"
The VPD-133N-H2 is a 3.5-inch touch HMI device from the VPD Series, combining a 240 x 320 colour TFT touch screen with serial and Ethernet connectivity. It suits engineers who need a compact operator interface that can be networked and powered over a single Ethernet cable.
This variant includes Ethernet with PoE (IEEE 802.3af, Class 1) alongside one RS-232/RS-485 port and one RS-485 port, both with Self-Tuner. A real-time clock, buzzer, rotary switch and reset button are built in, and the front panel is rated IP65. A 12 to 48 VDC terminal block input is also provided for non-PoE installations.
HMIWorks, the free development software for the VPD Series, supports graphical screen design, Ladder Designer for PLC users and C language programming. The unit also accepts XV-Board I/O expansion and user-defined third-party protocols written in C.
Applications
- Operator interfaces for industrial automation systems
- Remote control and monitoring of I/O over Ethernet and serial links
- Machine and panel-mounted control display in rugged environments
| Product type: | Touch HMI |
|---|---|
| Interface: | Ethernet, RS-232/RS-485, RS-485 |
| Ports: | 3 |
| PoE: | Yes (IEEE 802.3af, Class 1) |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -20 ~ +50 °C |
| Mounting: | DIN-rail, Panel |
| Housing: | IP65 front panel |
Specifikationer
| Main Unit | |
|---|---|
| CPU | 32-bit RISC CPU |
| Storage | 16 MB SDRAM/16 MB Flash |
| Real Time Clock | Yes |
| Display | |

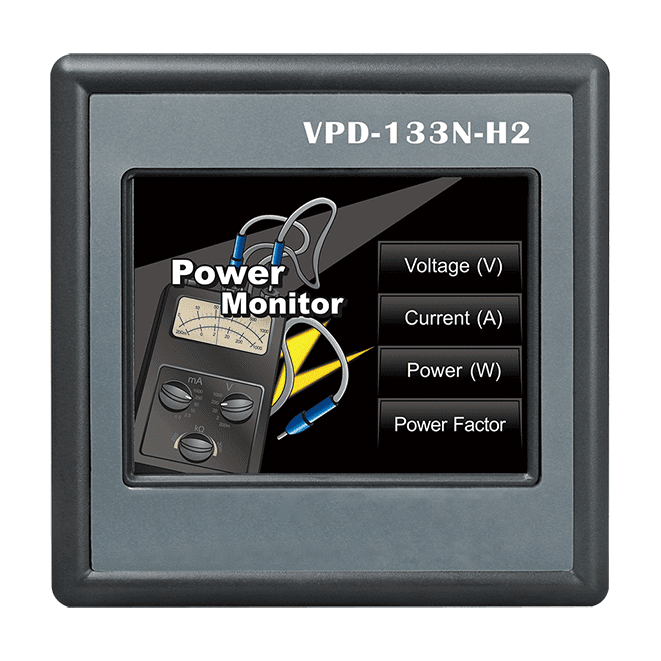

| Type | LCD 3.5 TFT (Resolution 240 x 320, 65535 colors), defective pixels <= 3 |
| Backlight Life | 20,000 hours |
| Brightness | 270 cd/m2 |
| Touch Panel | Yes |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | Yes |
| Reset Button | Yes |
| Ethernet | |

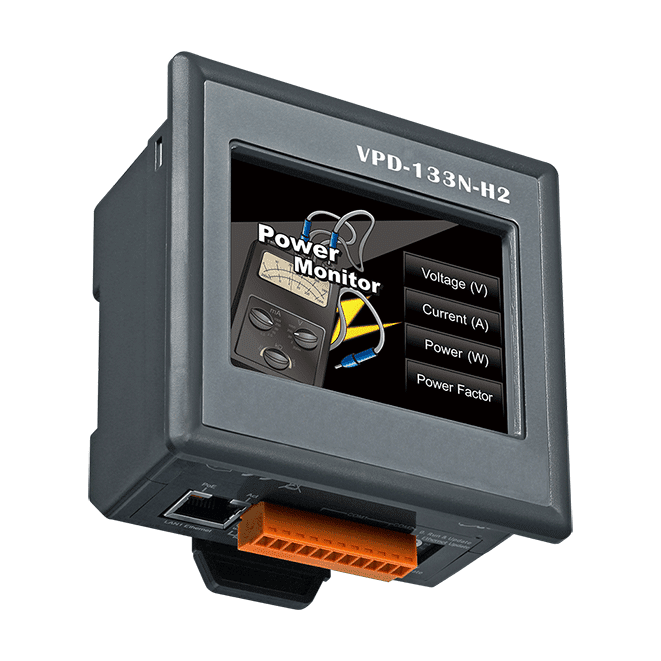

| Ports | RJ-45 x 1, 10/100 Base-TX |
| COM Ports | |
| Ports | 1 x RS-232/RS-485 including Self-Tuner 1 x RS-485 including Self-Tuner |
| USB | |

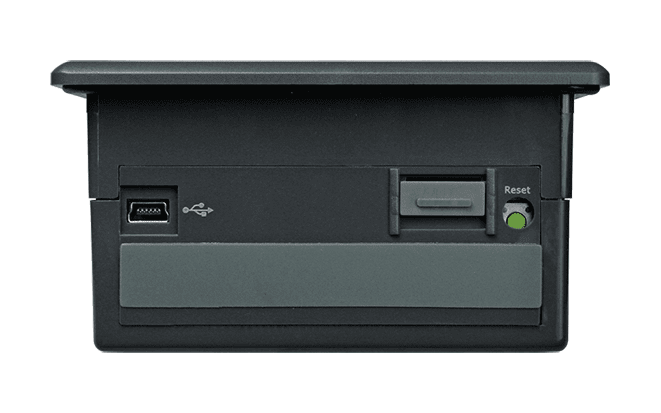

| Specification | USB 1.1 Client (Firmware updates only) |
| Connector | Mini-B |
| Power | |
| Consumption | 2 W |
| Powered from PoE | IEEE 802.3af, Class1 (48 V) |

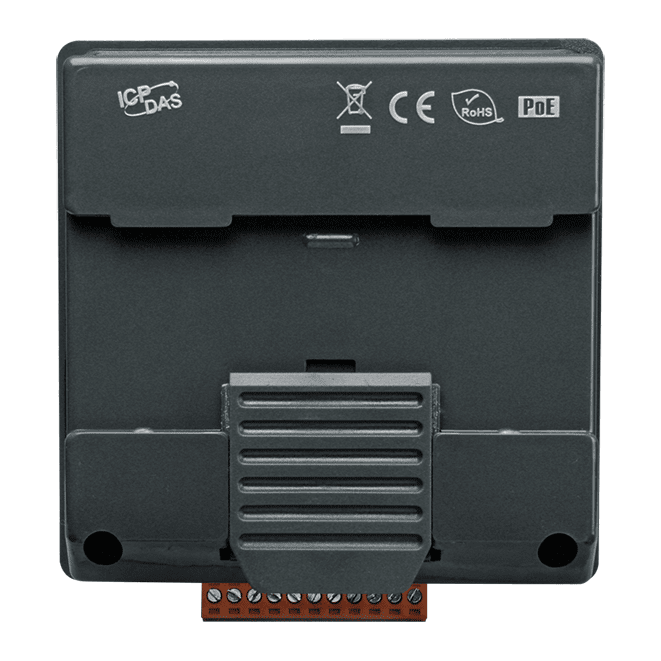

| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
| Dimensions (mm) | 103 mm x103 mm x 53 mm |
| Installation | DIN-Rail Mounting and Panel Mounting |
| Ingress Protection Rating | Front Panel: IP65 |
| Environment | |
| Operating Temperature | -20 ~ +50°C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
