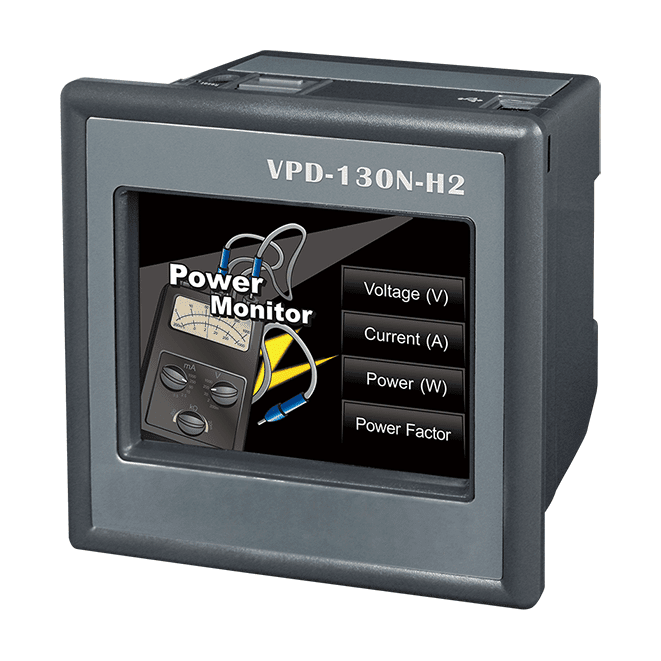

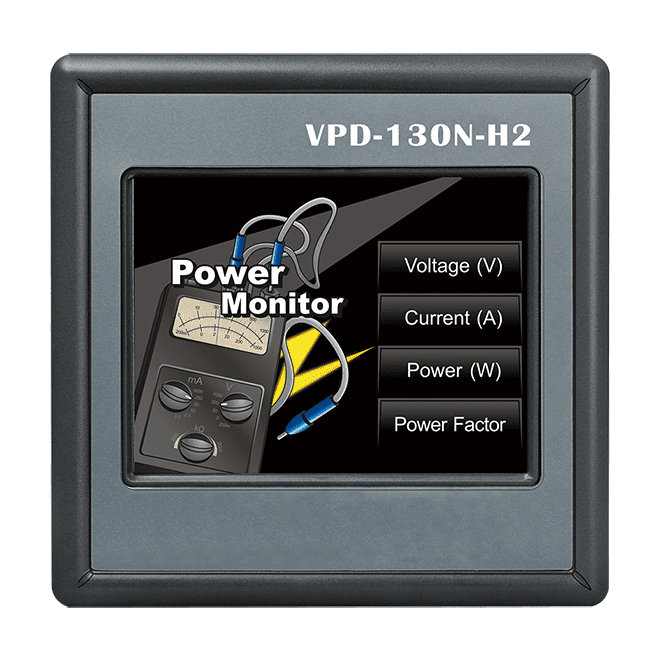

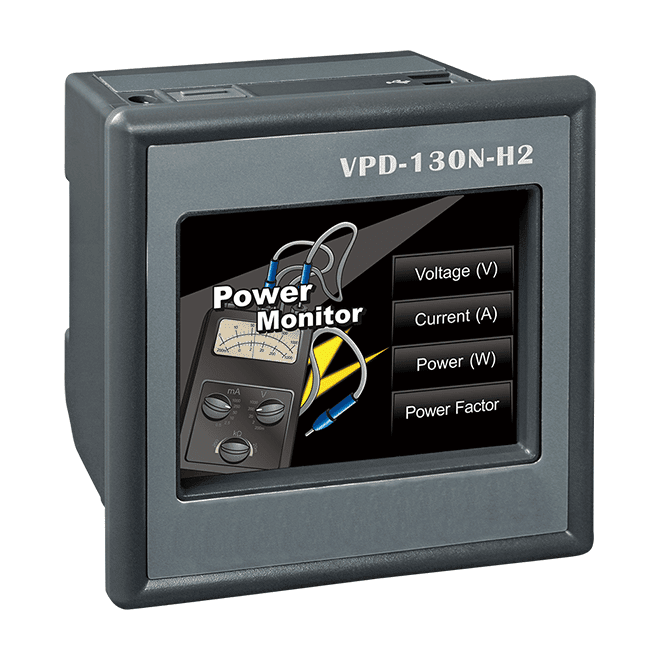

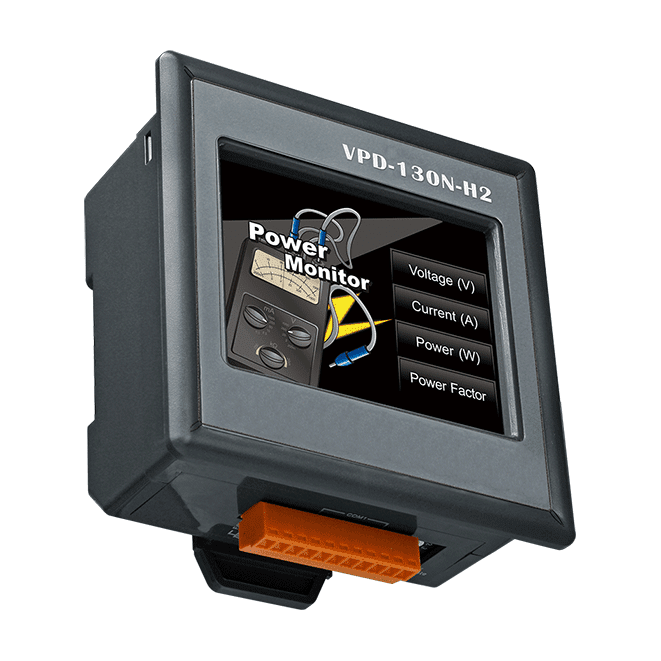

VPD-130N-H2 3.5-inch Touch HMI, RS-232/RS-485 with RTC
3.5-inch IP65 colour touch HMI with one RS-232/RS-485 serial port, real time clock and USB download port, programmed with the free HMIWorks software.
- Single RS-232/RS-485 serial port, including Self-Tuner
- 3.5-inch 240 x 320 TFT colour touch screen, 65535 colours
- Real time clock and 16 MB Flash non-volatile storage

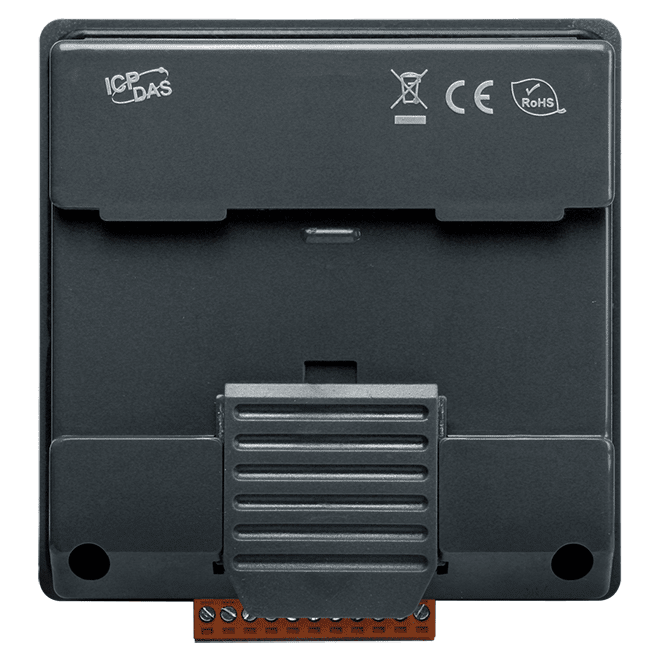

- IP65 front panel, DIN-rail or panel mounting
- Free HMIWorks software with Ladder Designer and C language support

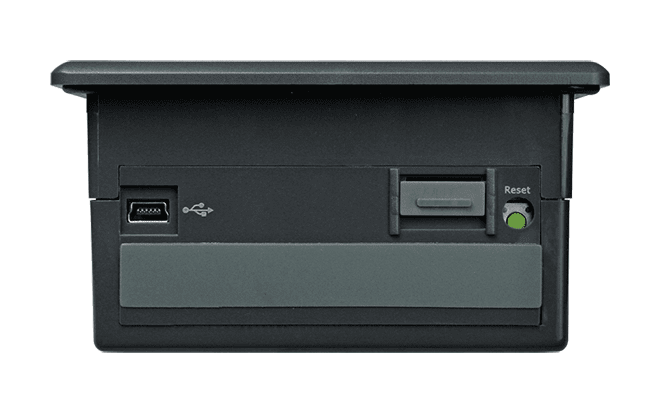

- USB 1.1 client (Mini-B) for firmware updates
2 924,99 kr per st.
| 1–9 st. | 2 924,99 kr | |
|---|---|---|
| 10–30 st. | 2 836,35 kr | −3 % |
| 31+ st. | 2 780,95 kr | −5 % |
Produktinformation "VPD-130N-H2 3.5-inch Touch HMI, RS-232/RS-485 with RTC"
VPD-130N-H2 CR is a 3.5-inch touch HMI device from the VPD Series, built around a 240 x 320 TFT colour touch screen with 65535 colours. It suits engineers who need a compact operator panel with a single serial port for connecting to a controller or remote I/O, on either new installations or retrofits of existing systems.
The unit uses a 32-bit RISC CPU with 16 MB SDRAM and 16 MB Flash, and includes a real time clock and a buzzer. The front panel is rated IP65 and the unit can be fitted to a DIN rail or a panel. It is powered from a terminal block at +12 ~ 48 VDC, drawing 2 W. Ethernet is not fitted on this N variant; the source notes that Ethernet is available only on the VPD-133-H and VPD-133N-H.
Screens are developed in the free HMIWorks software, which offers graphical screen design, Ladder Designer for PLC-oriented users and a C language environment. The 20,000-hour backlight rating and non-volatile storage support dependable operation in demanding industrial environments.
Applications
- Operator interfaces for industrial automation systems
- Control and monitoring of I/O at remote sides
- New system installations and complete system retrofits
- Machine panels in rugged environments
| Product type: | Touch HMI |
|---|---|
| Interface: | RS-232/RS-485 |
| Ports: | 1 |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -20 ~ +50 °C |
| Mounting: | DIN-rail, Panel |
Specifikationer
| Main Unit | |
|---|---|
| CPU | 32-bit RISC CPU |
| Storage | 16 MB SDRAM/16 MB Flash |
| Real Time Clock | Yes |
| Display | |
| Type | LCD 3.5 TFT (Resolution 240 x 320, 65535 colors), defective pixels <= 3 |
| Backlight Life | 20,000 hours |
| Brightness | 270 cd/m2 |
| Touch Panel | Yes |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | Yes |
| Reset Button | Yes |
| COM Ports | |
| Ports | 1 x RS-232/RS-485 including Self-Tuner |
| USB | |
| Specification | USB 1.1 Client (Firmware updates only) |
| Connector | Mini-B |
| Power | |
| Consumption | 2 W |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
| Dimensions (mm) | 103 mm x103 mm x 53 mm |
| Installation | DIN-Rail Mounting and Panel Mounting |
| Ingress Protection Rating | Front Panel: IP65 |
| Environment | |
| Operating Temperature | -20 ~ +50°C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
