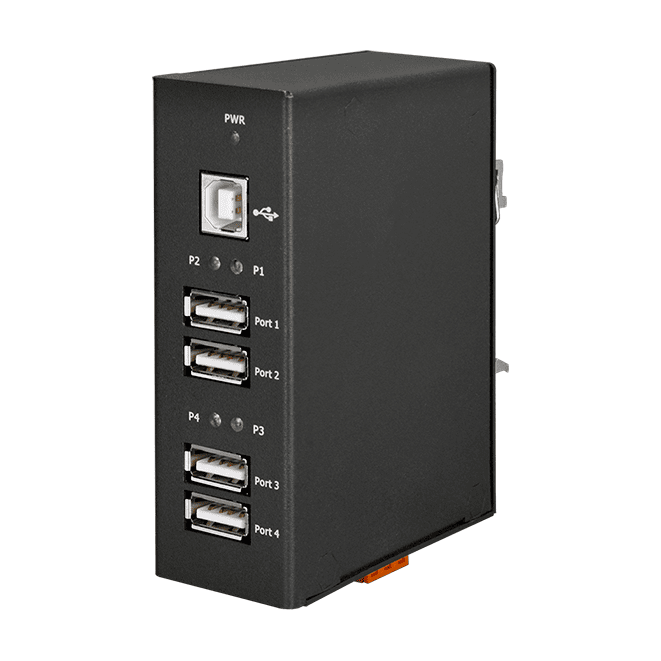

USB-2562M 4-Port Industrial USB 2.0 Hub with Metal Case
Self-powered 4-port industrial USB 2.0 hub in a metal DIN-rail housing, supplied with a 1.8 m USB 2.0 A-to-B cable. Supports 480 Mbit/s high-speed mode with a +10 ~ +30 VDC input.
- Four downstream Type A ports, each rated up to 500 mA
- High-speed 480 Mbit/s, full-speed 12 Mbit/s and low-speed 1.5 Mbit/s support
- Self-powered operation only, from a +10 ~ +30 VDC external supply
- Power and downstream port status LEDs
- Metal casing for DIN-rail installation
- Operating temperature -25 ~ +75 °C
1 495,73 kr per st.
| 1–9 st. | 1 495,73 kr | |
|---|---|---|
| 10–30 st. | 1 451,41 kr | −3 % |
| 31+ st. | 1 418,18 kr | −5 % |
Produktinformation "USB-2562M 4-Port Industrial USB 2.0 Hub with Metal Case"
The USB-2562M CR expands one USB 2.0 host connection into four downstream Type A ports, so several high-speed peripherals can be connected to a single computer in an industrial cabinet or control enclosure. It operates in high-speed mode at up to 480 Mbit/s and falls back to full-speed (12 Mbit/s) and low-speed (1.5 Mbit/s) operation for older devices.
The hub runs only in self-powered mode, taking its supply from an external +10 ~ +30 VDC source rather than from the host port. Each downstream port can supply up to 500 mA, and per-port status LEDs show which connections are active. This arrangement is intended to give the widest compatibility with attached USB devices.
The unit has a metal casing and mounts on a DIN rail. It is rated for an operating range of -25 ~ +75 °C and is supplied with a CA-USB18 cable (USB 2.0 A-male to B-male, 1.8 m) for connecting to the host.
Applications
- Connecting multiple USB 2.0 peripherals to a computer in industrial cabinets
- Adding USB ports to DIN-rail mounted automation systems
| Product type: | USB Hub |
|---|---|
| Interface: | USB 2.0 |
| Ports: | 4 |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Metal |
Specifikationer
| LED Indicators | |
|---|---|

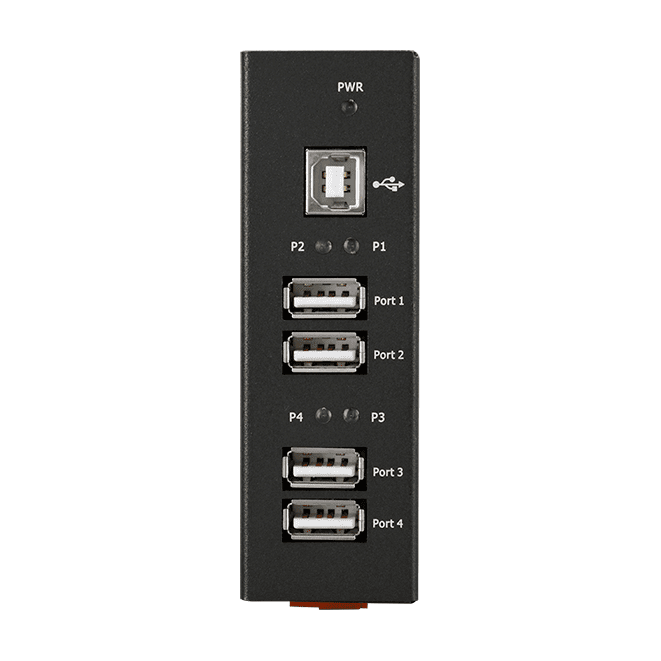

| Status | 1 x Power 4 x Downstream Ports |
| USB | |
| Ports | 4 |
| Specification | USB 1.1 and USB 2.0 standard compatible |
| Transfer Speed | 480 Mbit/s-high speed mode 12 Mbit/s- full speed mode 1.5 Mbit/s-low speed mode |
| Supply Current | 500 mA Max. per port |
| Connector | 1 x Upstream (Type B) 4 x Downstream (Type A) |
| Power | |

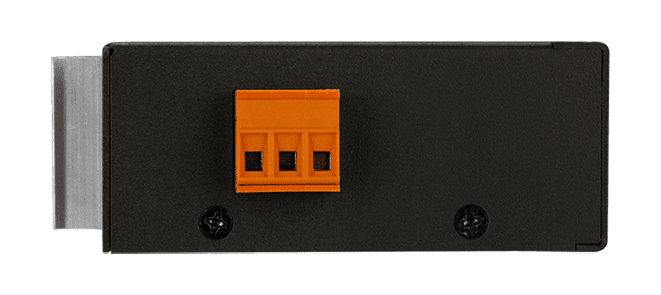

| Input Range | +10 ~ +30 VDC |
| Consumption | 0.25 A @ 24 VDC for 250mA per port. 0.5 A @ 24 VDC for 500mA per port. |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 32 x 108 x 86 (W x L x H) |

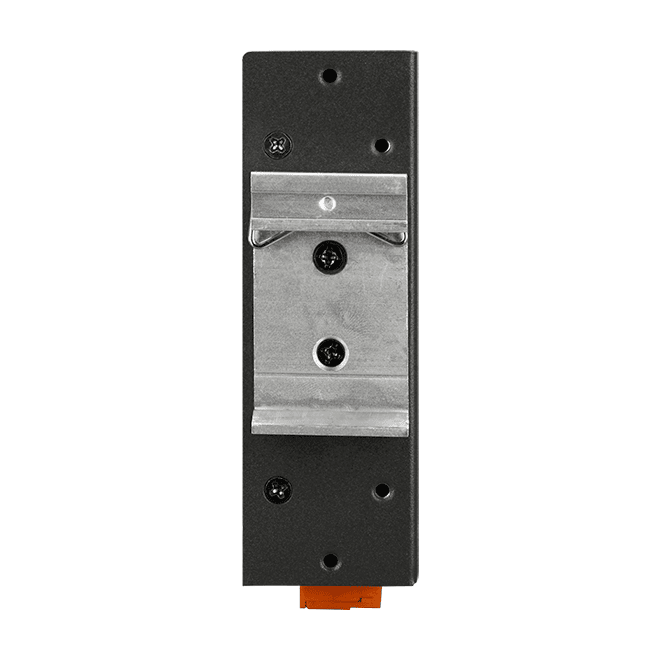

| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
