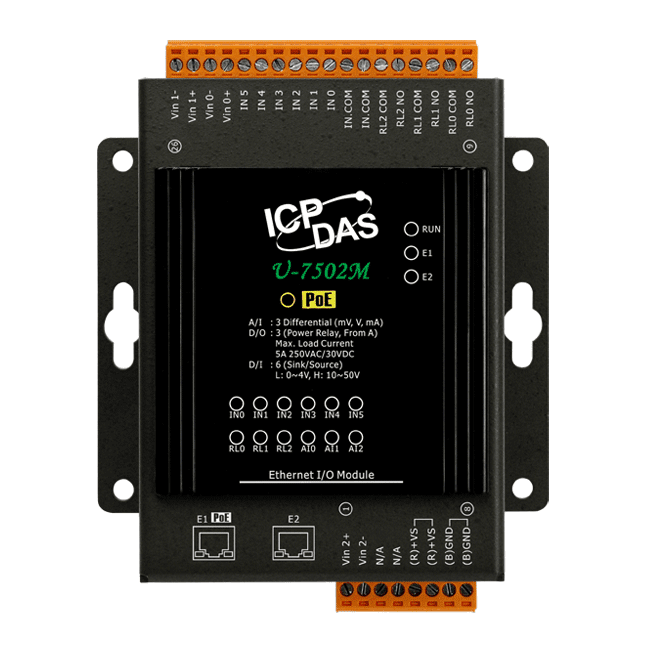

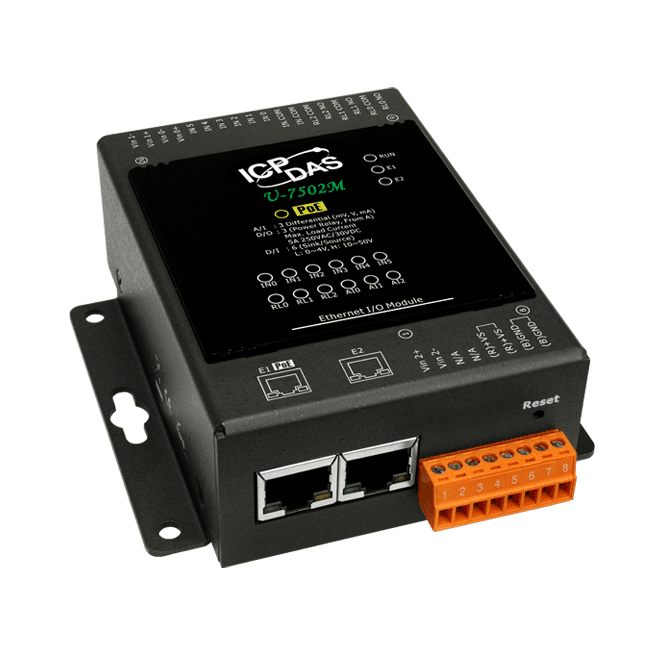

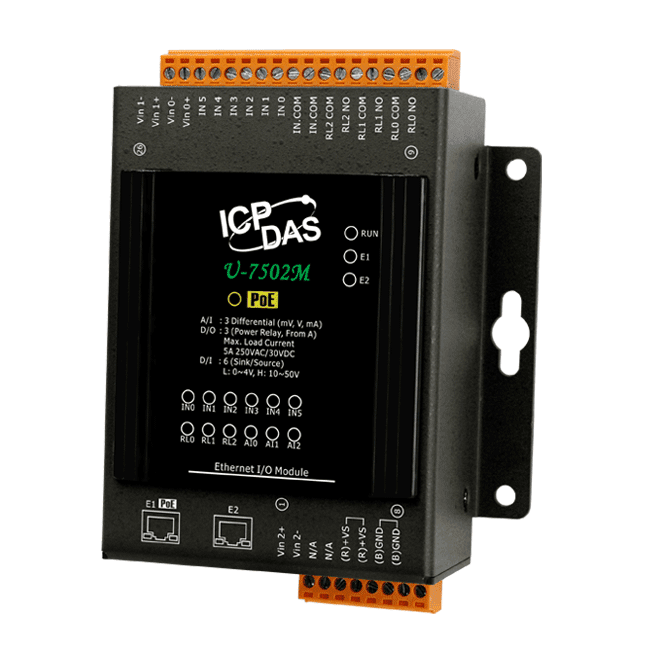

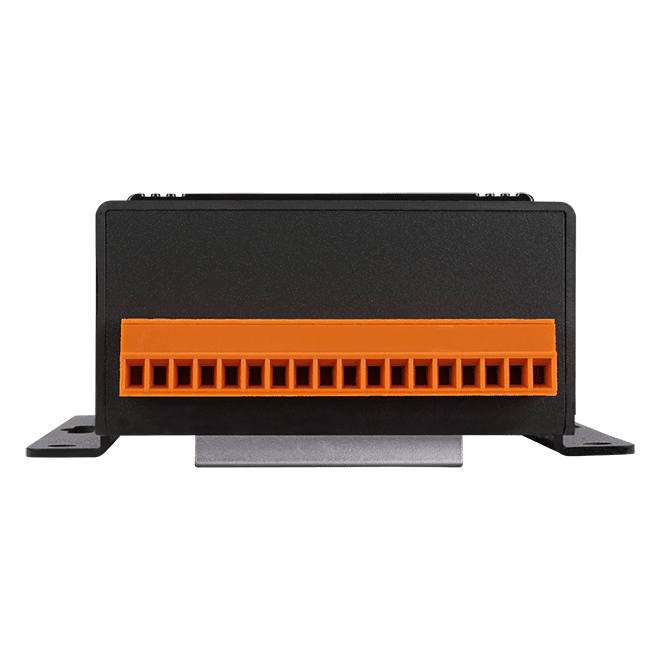

U-7502M OPC UA I/O Module with PoE, 3 AI, 6 DI and 3 Relay Outputs
OPC UA I/O module with 3 analogue inputs, 6 digital inputs and 3 relay outputs. Supports OPC UA, MQTT and RESTful API, with PoE and a dual-port Ethernet switch for daisy-chain wiring.
- OPC UA Server / Client, MQTT Client and RESTful API (HTTP and HTTPS) can run simultaneously
- 3 differential analogue inputs, voltage or current, 16-bit resolution, jumper-selectable ranges
- 6 wet-contact digital inputs with sink/source (NPN/PNP) operation and 100 Hz frequency
- 3 Form A (SPST N.O.) relay outputs rated 5 A @ 250 VAC/24 VDC, resistive load

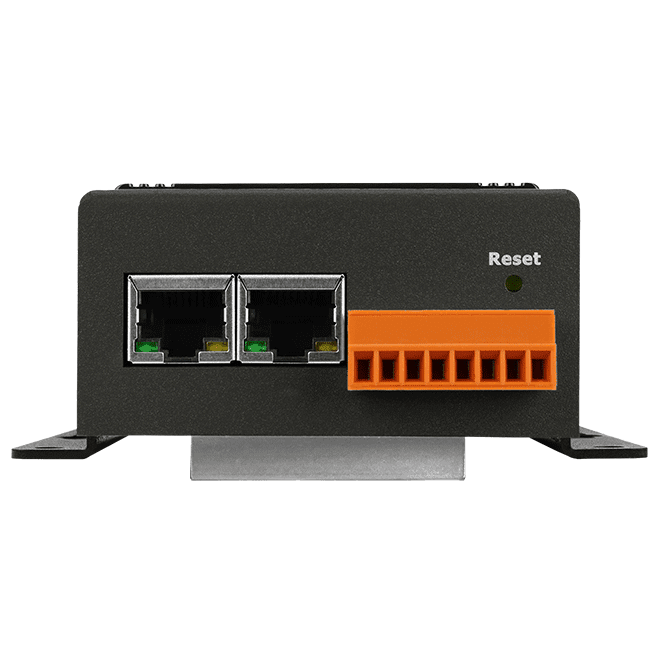

- Dual-port 10/100 Base-TX Ethernet switch for daisy-chain topology, with IEEE 802.3af Class 3 PoE
- Logic rules (IF, THEN, ELSE), schedule function, analogue scaling and I/O trigger messages
Den här artikeln prissätts per order. Skicka oss antalet så svarar vi med pris och leveranstid.
Begär offert
Produkten finns inte längre tillgänglig
Produktinformation "U-7502M OPC UA I/O Module with PoE, 3 AI, 6 DI and 3 Relay Outputs"
U-7502M CR is a remote I/O unit that brings analogue, digital and relay channels onto an Ethernet network and makes them available to OPC UA, MQTT and RESTful API clients. It suits engineers who need to feed field I/O values into a cloud platform or a higher-level control system without adding a separate gateway.
The module can run OPC UA Server or Client, MQTT Client and RESTful API communication at the same time, so the networking approach can be chosen to suit each installation. Local logic is handled by IF, THEN, ELSE rules that can act on physical and virtual points, and a schedule function executes rules at set times. Analogue inputs can be scaled into more readable engineering values, and I/O trigger messages can be written to CSV files or a line for device tracking.
Power can be taken from a PoE network under IEEE 802.3af Class 3 or from a +12 to +48 VDC terminal block. A dual-port Ethernet switch supports daisy-chain topology to reduce cabling and switch requirements. Configuration, control and monitoring are done through the built-in web interface in a standard browser, with no additional app required.
Applications
- Transmitting I/O values to cloud systems for display, analysis or strategy
- Feeding field I/O data into a control system over OPC UA or MQTT
- Remote monitoring and control of I/O via a web browser or RESTful API
- Local rule-based automation of I/O and virtual points on a schedule
- Installations where PoE power and daisy-chained Ethernet reduce cabling
| Product type: | OPC UA I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | MQTT, OPC UA, RESTful API |
| Digital inputs: | 6 |
| Relay outputs: | 3 |
| Analog inputs: | 3 |
| Ports: | 2 |
| PoE: | Yes |
| Isolation: | 2500 VDC |
| Power input: | +12 to +48 VDC, PoE IEEE 802.3af Class 3 |
| Operating temperature: | -25 ~ +75 °C |

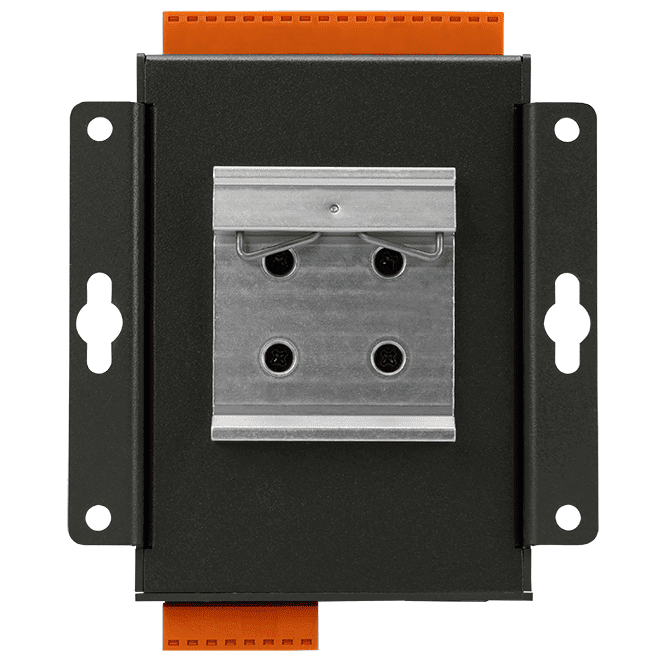

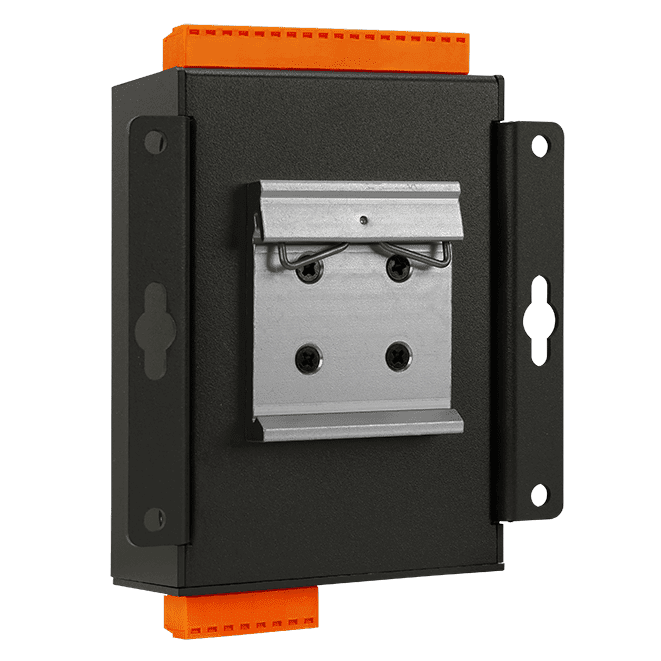

| Mounting: | DIN-rail |
Specifikationer
| Software | |
|---|---|
| Protocol | • OPC UA Server / Client • MQTT Client • RESTful API |
| Function | • Web Interface for Configuration • Scaling • Security • Rule Setting • Schedule • Event Log • IoTstar Setting |
| CPU Module | |
| CPU | 32-bit CPU (400 MHz) |
| Watchdog Timer | Module, Communication(Programmable) |
| Isolation | |
| 2-way Isolation | I/O: 2500 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±2 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for each terminal ±8 kV Air for random point |
| Surge (IEC 61000-4-5) | ±2 kV for Power Line |
| LED Indicators | |
| Status | Run, Ethernet, I/O |
| Analog Input | |
| Channels | 3 (Differential) |
| Type | Voltage, Current |
| Range | ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V 0 to 20 mA, ±20 mA, 4 to 20 mA (Jumper Selectable) |
| Resolution | 16-bit |
| Accuracy | Normal Mode: ±0.1% Fast Mode: ±0.5% or better |
| Sampling Rate | Normal Mode: 10 samples/second (Total) Fast Mode: 50 samples/second (Total) |
| Input Impedance | Voltage: 2 MΩ Current: 125 Ω |
| Common Mode Rejection | 86 dB (min.) |
| Normal Mode Rejection | 100 dB |
| Overvoltage Protection | 240 Vrms |
| Overcurrent Protection | 50 mA at 110 VDC (max.) |
| Individual Channel Configuration | Yes |
| Open Wire Detection | Yes |
| Zero Drift | ±20 μV/°C |
| Span Drift | ±25 ppm/°C |
| Isolation | ±400 VDC, Virtual Channel to Channel Isolation |
| Digital Input/Counter | |
| Channels | 6 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | +10 ~ +50 VDC |
| OFF Voltage Level | +4 VDC (max.) |
| Max. Counts | 4,294,967,295 (32-bit) |
| Frequency | 100 Hz |
| Min. Pulse Width | 5 ms |
| Input Impedance | 10 kΩ, 0.5W |
| Overvoltage Protection | +70 VDC |
| Relay Output | |
| Channels | 3 |
| Type | Power Relay, Form A (SPST N.O.) |
| Contact Rating | 5 A @ 250 VAC/24 VDC (Resistive Load) |
| Operate Time | 6 ms (Typical) |
| Release Time | 3 ms (Typical) |
| Electrical Endurance | 10^5 ops. |
| Mechanical Endurance | 2 × 10^7 ops. |
| Power on Value | Programmable |
| Safe Value | Programmable |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100 Base-TX, Swtich Ports |
| PoE | Yes |
| LAN bypass | Yes |
| Access Control | ID, Password and IP Filter |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 6.6 W |
| Powered from PoE | IEEE 802.3af, Class3 |
| Powered from Terminal Block | +12 to +48 VDC |
| Mechanical | |
| Dimensions (mm) | 97 x 120 x 47 (W x L x H) |
| Installation | DIN-Rail mounting |
| Environment | |
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -30 °C ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
