TPM-4100/NP 10.4" Resistive Touch Monitor, 800 x 600, RS-232/USB, No PSU

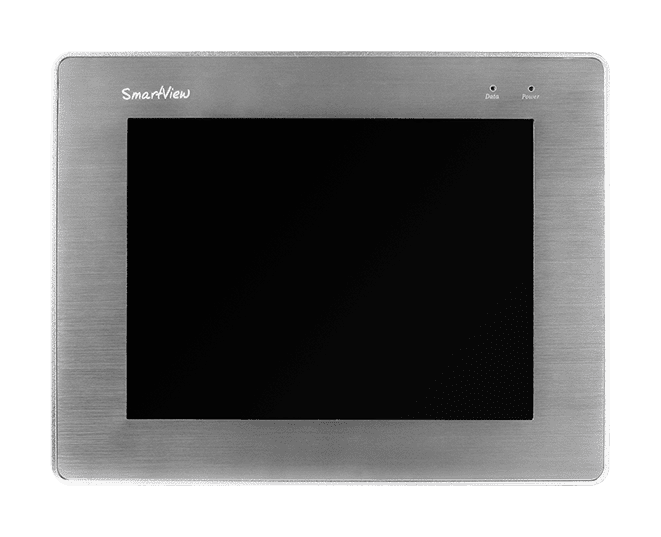

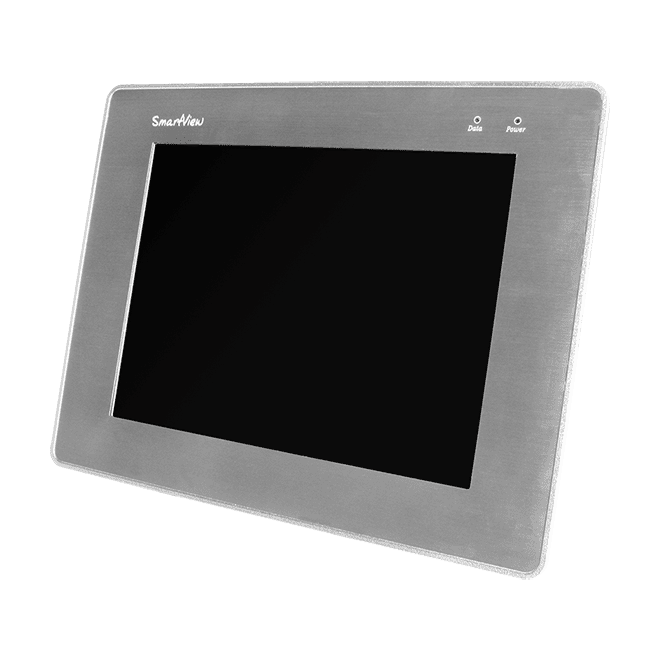

10.4" 800 x 600 panel mount touch monitor with aluminium front bezel, 4-wire resistive touch and IP65 front panel. Supplied without a power supply.
- 10.4" LCD with 800 x 600 resolution and 400 cd/m2 brightness
- 4-wire analogue resistive touch panel with 80% light transmission
- Front panel rated IP65, with aluminium casing for panel mounting
- Wide operating temperature range of -20 ~ +70 °C
- Full-function OSD control for display adjustment
- 1 x RS-232 (combo) port and 1 x USB port for connection
9 838,60 kr per st.
| 1–9 st. | 9 838,60 kr | |
|---|---|---|
| 10–30 st. | 9 539,45 kr | −3 % |
| 31+ st. | 9 340,02 kr | −5 % |
Produktinformation "TPM-4100/NP 10.4" Resistive Touch Monitor, 800 x 600, RS-232/USB, No PSU"
The TPM-4100/NP CR is a 10.4" panel mount touch monitor for operator interfaces. It pairs an 800 x 600 LCD with a 4-wire analogue resistive touch panel, so it can be operated by touch, and it has a front panel rated IP65.
This variant is supplied without a power supply, unlike the TPM-4100 CR. The input range is +12 ~ 48 VDC, so the unit needs a suitable external DC source. The display runs on Windows, Windows IoT, WES, WinCE and Linux, and the source states that it is guaranteed to work with ICP DAS PAC control systems including the WP-8000, LX-8000 and XP-9000 series.

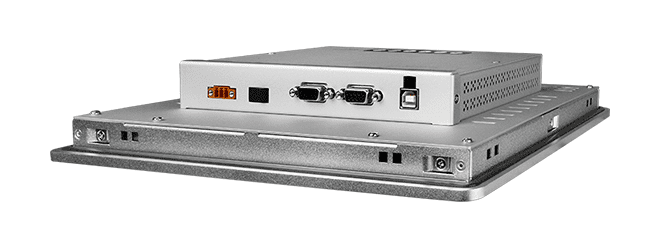

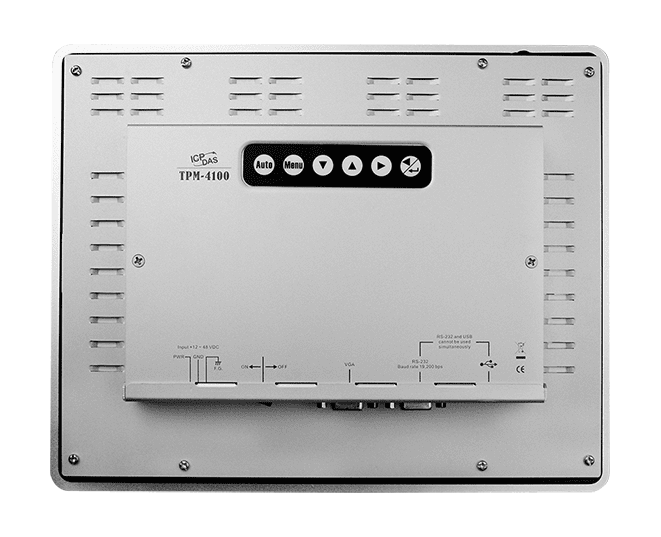

Setup is handled through full-function on-screen display controls for brightness, contrast, clock, phase, horizontal and vertical position and sharpness. The unit offers one RS-232 (combo) port and one USB port, and is rated for operation from -20 ~ +70 °C.
Applications
- Operator interfaces for machine and process control
- Panel-mounted HMI in industrial control cabinets
- Touch-based monitoring with ICP DAS PAC control systems
| Product type: | Touch monitor |
|---|---|
| Interface: | RS-232, USB |
| Ports: | 1 x RS-232 (combo), 1 x USB |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -20 ~ +70 °C |
| Mounting: | Panel |
| Housing: | Aluminium |
Specifikationer
| Software | |
|---|---|
| OS Support | Windows 10/11/ 8/7/ XP (32/64-bit), Windows 10 IoT Enterprise, Windows Embedded Standard 7 Windows Embedded Compact (WinCE 5.0/6.0/7.0), Linux (32/64-bit) |
| Display | |
| Size | 10.4" |
| Backlight Life | 50,000 hours |
| Brightness | 400 cd/m2 |
| Resolution | 800 x 600 |
| Touch Panel | 4-wire, analog resistive; light transmission: 80% |
| Contrast Ratio | 500：1 |
| LED Indicators | |
| Status | 1 x Power, 1 x Display |
| HMI | |
| Power Switch | Yes |
| OSD Control | Brightness, Contrast, Clock, Phase, Horizontal Position, Vertical Position and Sharpness |
| COM Ports | |
| Ports | 1 x RS-232 (Combo) |
| USB | |
| Ports | 1 |
| Power | |
| Input Range | +12 ~ 48 VDC |
| Consumption | 8.5 W |
| Mechanical | |
| Casing | Aluminum |
| Dimensions (mm) | 293 x 231 x 53 (W x L x H) |
| Installation | Panel Mounting |
| Ingress Protection Rating | Front panel: IP65 |
| Weight | 1785 g |
| Environment | |
| Operating Temperature | -20 ~ +70 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
