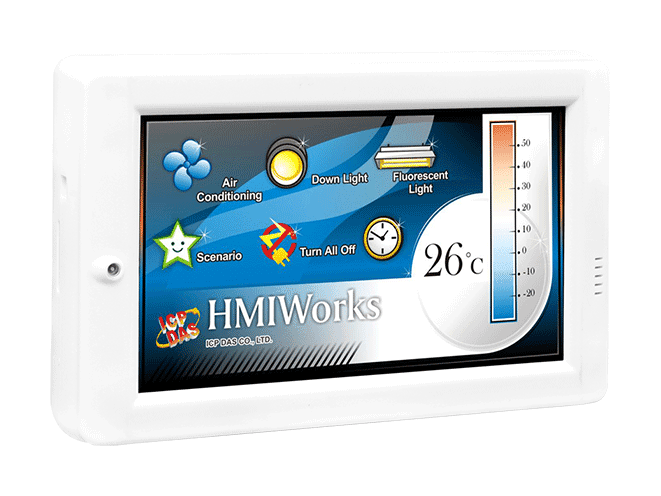

TPD-430-H-EU 4.3-inch Touch HMI Device with RS-485 and RTC
4.3-inch colour touch HMI for wall mounting in European 86 x 86 mm outlet boxes, with RS-485 Modbus RTU, real-time clock and +12 to +48 VDC power input.
- 4.3-inch TFT colour touch screen, 480 x 272 resolution, 65535 colours
- One RS-485 port with Self-Tuner, supporting Modbus RTU
- Real-time clock (RTC) on board
- Free HMIWorks development tool with Ladder Designer and C language support
- Supports custom communication protocols written in C
- Buzzer, rotary switch and reset button on the front panel
2 492,89 kr per st.
| 1–9 st. | 2 492,89 kr | |
|---|---|---|
| 10–30 st. | 2 415,33 kr | −3 % |
| 31+ st. | 2 371,01 kr | −5 % |
Produktinformation "TPD-430-H-EU 4.3-inch Touch HMI Device with RS-485 and RTC"
The TPD-430-H-EU is a compact touch HMI with a 4.3-inch TFT colour touch screen at 480 x 272 resolution. It is designed to replace mechanical switches with intelligent control pads, mounting directly in a standard European 86 x 86 mm outlet box.
Engineers can program the unit with the free HMIWorks tool, using Ladder Designer for PLC-style logic or the C language environment for custom applications. The device supports GUI design, Modbus RTU and custom communication protocols written in C.
This ordering code includes one RS-485 port with self-tuner, a real-time clock, a buzzer, a rotary switch, a reset button and a USB 1.1 client port for firmware updates. It operates from +12 to +48 VDC and is rated for -20 to +50 °C.
Applications
- Replacing mechanical switches with intelligent control pads
- Wall-mounted local operator panels in European 86 x 86 mm outlet boxes
| Product type: | Touch HMI |
|---|---|
| Interface: | RS-485 |
| Protocol: | Modbus RTU |
| Ports: | 1 |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -20 ~ +50 °C |
| Mounting: | Wall-mount |
Specifikationer
| Main Unit | |
|---|---|
| CPU | 32-bit RISC CPU |
| Storage | 16 MB SDRAM/16 MB Flash |
| Real Time Clock | Yes |
| Display | |
| Type | LCD 4.3” TFT(Resolution 480 X 272, 65535 colors), defective pixels <= 3 |
| Backlight Life | 20,000 hours |
| Brightness | 400 cd/m2 |
| Touch Panel | Yes |
| LED Indicators | |
| Status | 1 LED |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | Yes |
| Reset Button | Yes |
| USB | |
| Specification | USB 1.1 Client (Firmware updates only) |
| Connector | Mini-B |
| Power | |
| Consumption | 2.5 W |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
| Dimensions (mm) | 126 mm x 92 mm x 29 mm |
| Installation | Wall Mounting (Suitable for the European 86mm x 86mm outlet box) |
| Environment | |
| Operating Temperature | -20 ~ +50°C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
