TPD-283U-H 2.8-inch Touch HMI with PoE Ethernet and RS-485
2.8-inch colour touch HMI for building and home automation, with PoE Ethernet, RS-485, RTC and Modbus TCP/RTU support. Wall-mounted, powered by PoE or 12 ~ 48 VDC.
- 2.8-inch TFT touch screen, 240 x 320 resolution, 65535 colours
- Power over Ethernet (IEEE 802.3af, Class 1) or +12 ~ 48 VDC terminal block power
- RS-485 interface with Self-Tuner and 10/100 Base-TX Ethernet port
- Modbus TCP and Modbus RTU protocol support, plus custom C-language protocols
- Real-time clock, buzzer and rotary switch
- Free HMIWorks tool with Ladder Designer or C language programming
2 171,58 kr per st.
| 1–9 st. | 2 171,58 kr | |
|---|---|---|
| 10–30 st. | 2 105,11 kr | −3 % |
| 31+ st. | 2 060,79 kr | −5 % |
Produktinformation "TPD-283U-H 2.8-inch Touch HMI with PoE Ethernet and RS-485"

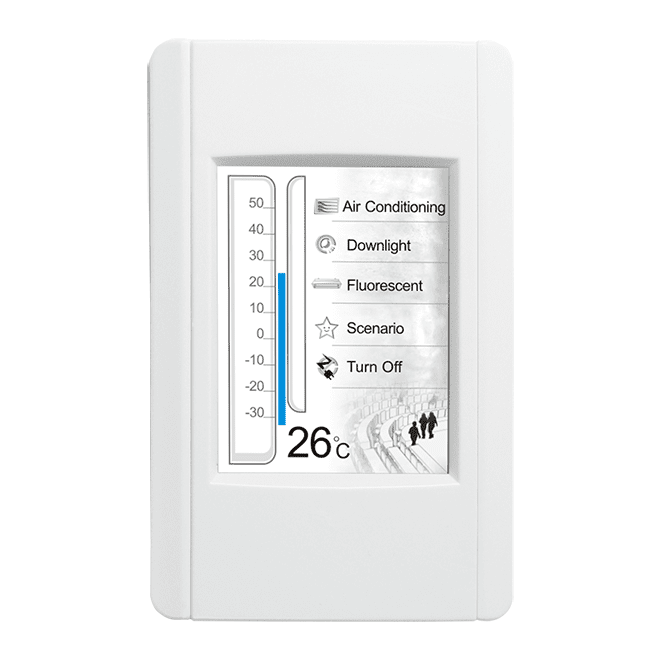

The TPD-283U-H CR is a compact 2.8-inch touch HMI with a 240 x 320 TFT colour display, designed for building and home automation. It combines a touch interface with an RS-485 port and a 10/100 Base-TX Ethernet port, so it can be used as a wall-mounted control pad for local or networked equipment.
Power can be supplied over Ethernet (IEEE 802.3af, Class 1, 48 V) or through the terminal block at +12 ~ 48 VDC, which simplifies installation where a network cable is already present. The unit includes a real-time clock, buzzer and rotary switch for time-based operation and user feedback.
Programming is handled with the free HMIWorks development tool. PLC-oriented users can work in Ladder Designer, while those with software backgrounds can use the C language environment. Modbus TCP and Modbus RTU are supported, along with custom communication protocols written in C.
Applications
- Building automation
- Home automation
| Product type: | Touch HMI |
|---|---|
| Interface: | Ethernet, RS-485, USB |
| Protocol: | Modbus RTU, Modbus TCP |
| Ports: | RS-485 x1, RJ-45 x1 |
| PoE: | Yes (IEEE 802.3af, Class 1) |
| Power input: | +12 ~ 48 VDC, PoE |
| Operating temperature: | -20 ~ +70 °C |
| Mounting: | Wall |
Specifikationer
| Main Unit | |
|---|---|
| CPU | 32-bit RISC CPU |
| Storage | 16 MB SDRAM/16 MB Flash |
| Real Time Clock | Yes |
| Display | |
| Type | LCD 2.8 TFT (Resolution 240 x 320, 65535 colors), defective pixels <= 3 |
| Backlight Life | 20,000 hours |
| Brightness | 160 cd/m2 |
| Touch Panel | Yes |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | Yes |
| Ethernet | |
| Ports | RJ-45 x 1, 10/100 Base-TX |
| USB | |
| Specification | USB 1.1 Client (Firmware updates only) |
| Connector | Mini-B |
| Power | |
| Consumption | 1.5 W |
| Powered from PoE | IEEE 802.3af, Class1 (48 V) |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
| Dimensions (mm) | 119 mm x 76 mm x 33 mm |
| Installation | Wall Mounting |
| Ingress Protection Rating | Front Panel: IP40 |
| Environment | |
| Operating Temperature | -20 ~ +70°C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
