TPD-280-H 2.8-inch Touch HMI Device with RS-485 and Modbus RTU
Compact 2.8-inch colour TFT touch HMI with one RS-485 port and Modbus RTU support, designed for wall-mounted building and home automation control panels.
- 2.8-inch 240 x 320 TFT colour touch display with 65535 colours and 160 cd/m2 brightness
- One RS-485 port with Self-Tuner, supporting Modbus RTU
- Custom communication protocol support through C language
- Free HMIWorks development tool with GUI design
- Ladder Designer for PLC users and C language environment for IT users
- Buzzer and rotary switch for user interaction
1 739,48 kr per st.
| 1–9 st. | 1 739,48 kr | |
|---|---|---|
| 10–30 st. | 1 684,08 kr | −3 % |
| 31+ st. | 1 650,85 kr | −5 % |
Produktinformation "TPD-280-H 2.8-inch Touch HMI Device with RS-485 and Modbus RTU"

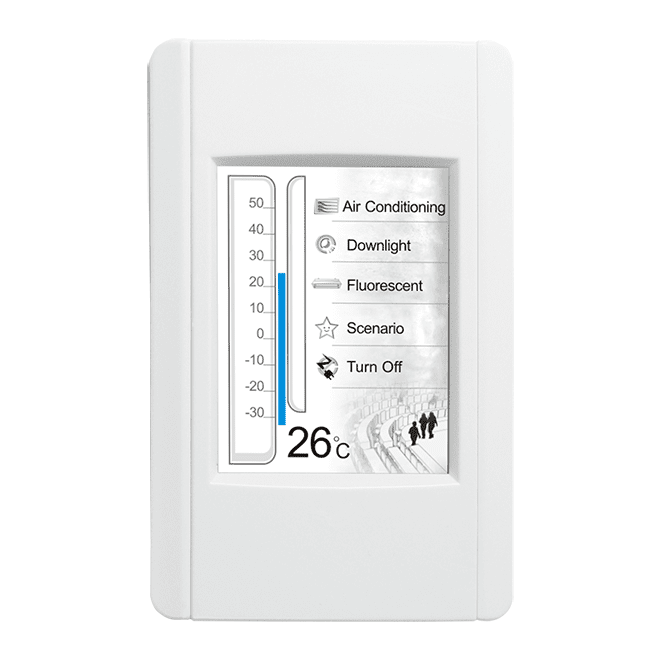

TPD-280-H CR is a compact touch HMI with a 2.8-inch 240 x 320 colour TFT display that replaces mechanical switches with intelligent, user-defined control pads. It fits a standard electrical wall-mount outlet and is intended for building and home automation, where a single RS-485 connection links it to controllers and I/O.
The unit runs on a 32-bit RISC CPU and can be powered from a +12 ~ 48 VDC terminal block, drawing 1.5 W. Its RS-485 port includes Self-Tuner and supports Modbus RTU, while custom communication protocols can be written in C.
Programming is handled with the free HMIWorks tool. PLC engineers can use Ladder Designer, while programmers can work in the C language environment. The source notes that learning Ladder Designer takes no more than 30 minutes to create a first application program.
Applications
- Building automation control panels
- Home automation control pads
- Upgrading mechanical switches to intelligent touch control
| Product type: | Touch HMI |
|---|---|
| Interface: | RS-485 |
| Protocol: | Modbus RTU |
| Ports: | 1 |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -20 ~ +70 °C |
| Mounting: | Wall-mount |
Specifikationer
| Main Unit | |
|---|---|
| CPU | 32-bit RISC CPU |
| Display | |
| Type | LCD 2.8 TFT (Resolution 240 x 320, 65535 colors), defective pixels <= 3 |
| Backlight Life | 20,000 hours |
| Brightness | 160 cd/m2 |
| Touch Panel | Yes |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | Yes |
| Power | |
| Consumption | 1.5 W |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
| Dimensions (mm) | 119 mm x 76 mm x 33 mm |
| Installation | Wall Mounting |
| Ingress Protection Rating | Front Panel: IP40 |
| Environment | |
| Operating Temperature | -20 ~ +70°C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
