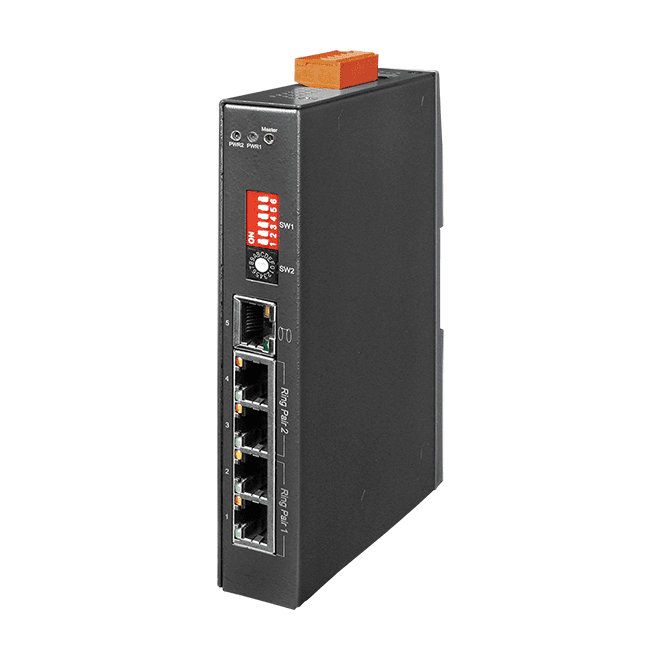

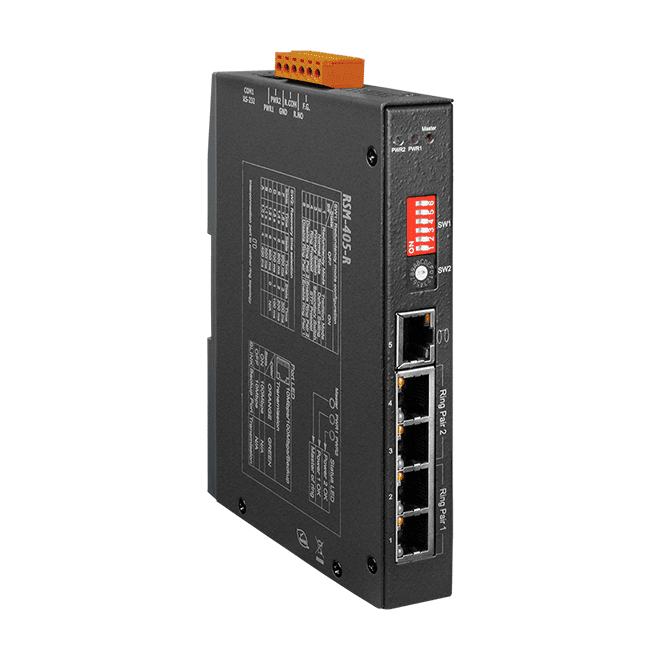

RSM-405-R 5-Port Real-Time Redundant Ring Switch, Industrial Ethernet
Five-port industrial Ethernet switch for redundant ring networks, using ICP DAS Cyber-Ring with a metal casing, dual DC power inputs and DIN-rail mounting.
- Built-in ICP DAS Cyber-Ring technique for redundant ring networks, with recovery from a copper link failure in approximately 20 ms
- Five shielded RJ-45 ports, each supporting 10/100 Mbps auto-negotiation and automatic MDI/MDI-X
- Store-and-forward switching with IEEE 802.3x full-duplex and back pressure flow control

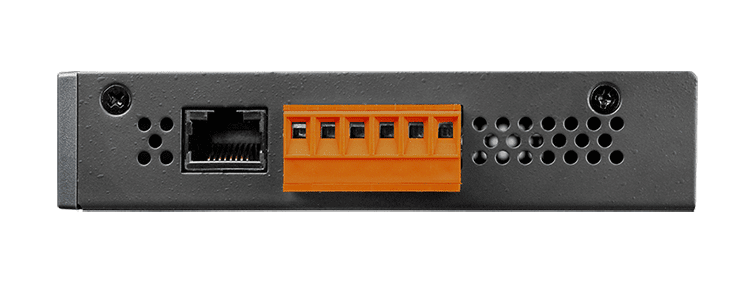

- Redundant +10 ~ +30 VDC power inputs with reverse polarity protection
- Relay output (2 A @ 30 VDC) for power failure and network link warnings
- Configuration via one or two DIP or rotary switches, no software setup required
4 509,36 kr per st.
| 1–9 st. | 4 509,36 kr | |
|---|---|---|
| 10–30 st. | 4 376,40 kr | −3 % |
| 31+ st. | 4 287,77 kr | −5 % |
Produktinformation "RSM-405-R 5-Port Real-Time Redundant Ring Switch, Industrial Ethernet"

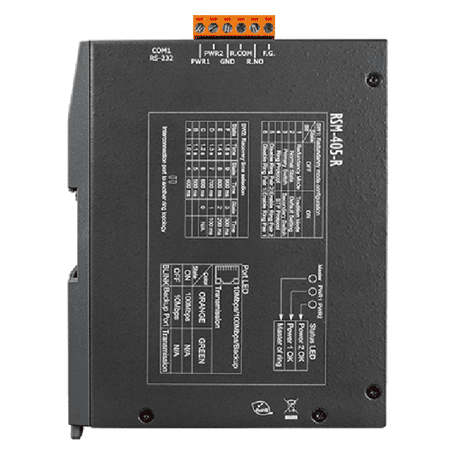

RSM-405-R is a 5-port 10/100Base-TX industrial Ethernet switch built for redundant ring topologies. Its built-in Cyber-Ring technique allows several switches to be linked into a ring, and a copper link failure is typically detected and recovered within approximately 20 ms, which suits most applications without a visible interruption to the process.

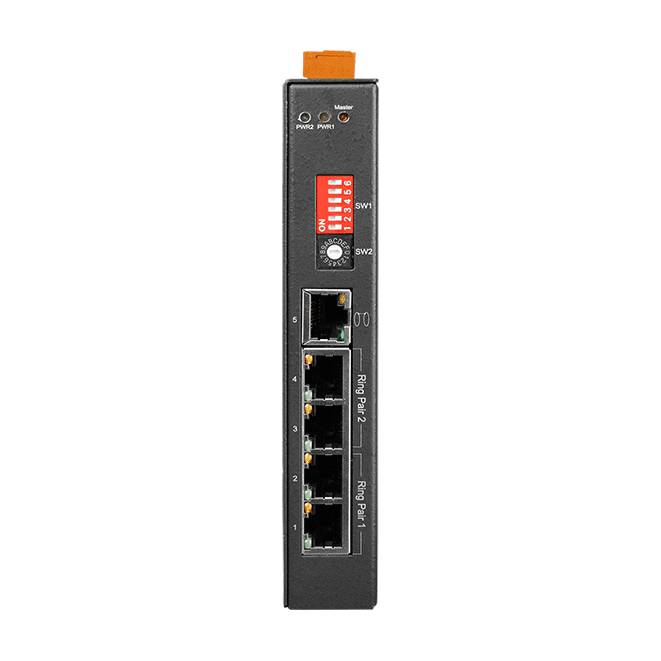

Each RJ-45 port auto-negotiates between 10 and 100 Mbps and supports automatic MDI/MDI-X crossover, so cabling does not need to be matched to the device. Configuration is kept simple: after installation, one or two DIP or rotary switches set the redundancy mode and maximum recovery time, with no software setup required.
The unit accepts two DC supplies connected at the same time, so a failed input is covered by the other source. A relay output signals dual power or network link failures, and the metal casing and wide operating range of -40 ~ +75 °C make it suitable for demanding cabinet environments.
Applications
- Industrial control and automation networks
- Redundant Ethernet ring topologies
| Product type: | Redundant ring switch |
|---|---|
| Interface: | RJ-45 |
| Protocol: | Modbus/TCP |
| Relay outputs: | 1 |
| Ports: | 5 |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -40 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Metal |
Specifikationer

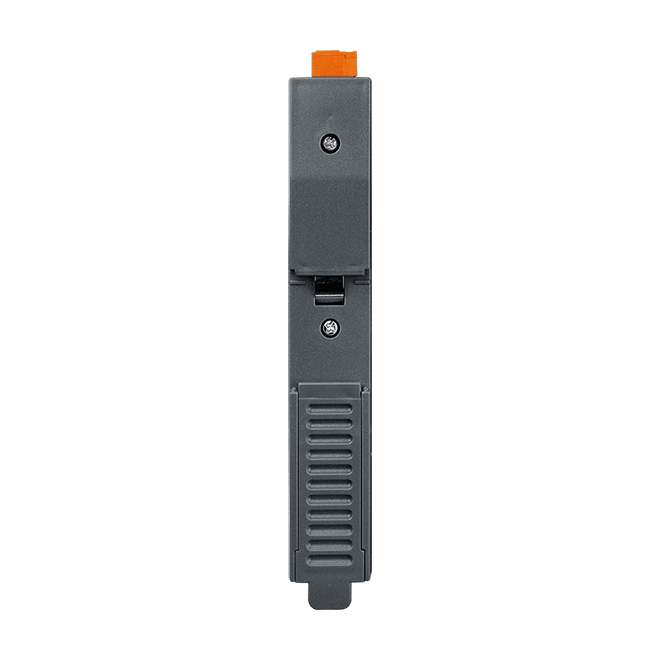

| LED Indicators | |
|---|---|
| Status | Power, 10/100M, Link/Act, Master |
| Ethernet | |
| Ports | 5 x RJ-45, 10/100Base-TX |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE802.3x |
| Processing Type | Store & forward wire speed switching |
| MAC Table | 2048 |
| Memory Bandwidth | 3.2 Gbps |
| Frame Buffer Memory | 1 Mbit |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Protocol | Modbus/TCP |
| Redundant Strategy | STP, Ring (ICP DAS) |
| Isolation | 1500 Vrms 1 minute |
| DIP Switch | Yes, 1x Redundancy mode confi guration 1x Max. Recovery time selection |
| COM Ports | |
| Ports | 1 x RS-232 |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ +30 VDC |
| Consumption | 0.22 A @ 24 VDC, +/-5% arrowed with 100M Full duplex |
| Alarm Output | Yes,Relay 2 A @ 30 VDC |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 25 x 168 x 119 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Ingress Protection Rating | IP30 |
| Environment | |
| Operating Temperature | -40 °C ~ + 75 °C |
| Storage Temperature | -40 °C ~ + 85 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
