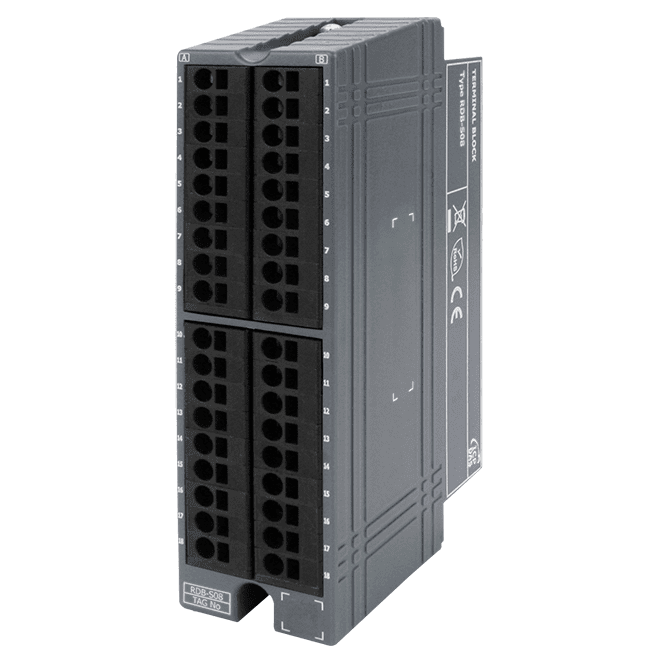

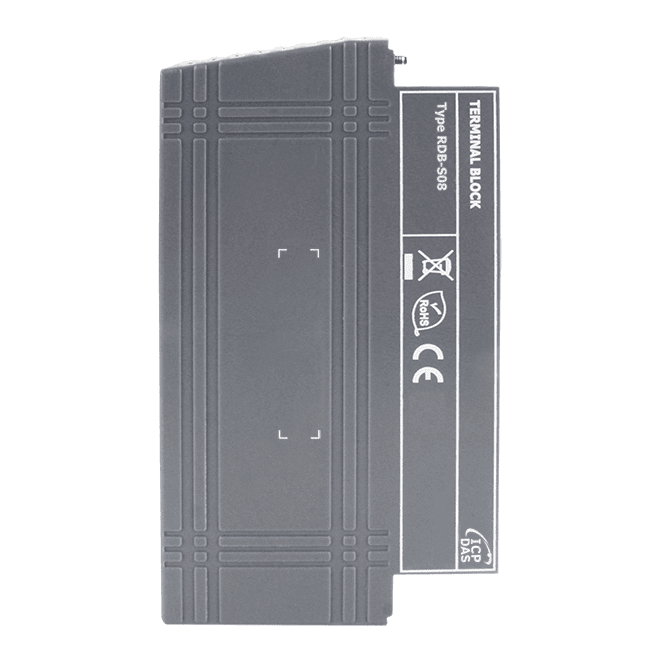

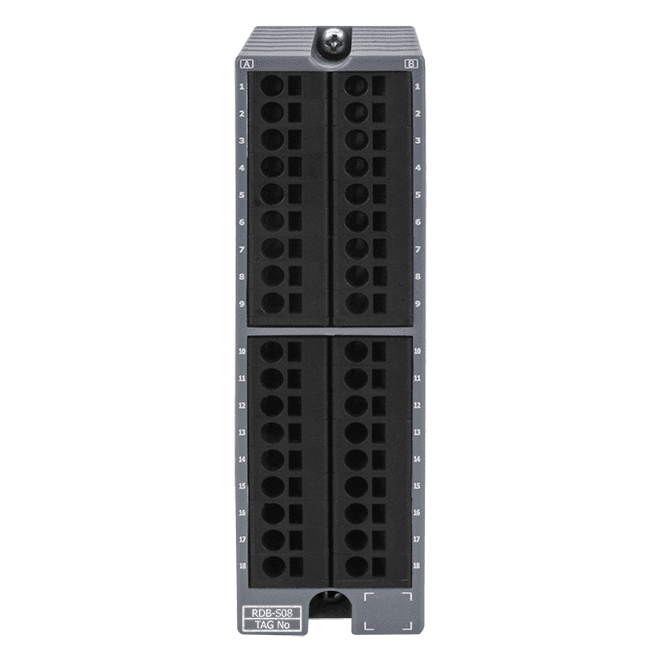

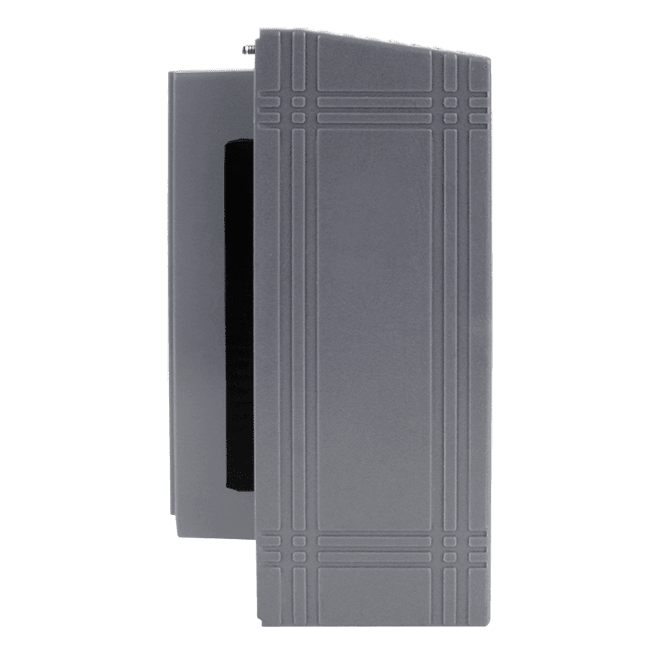

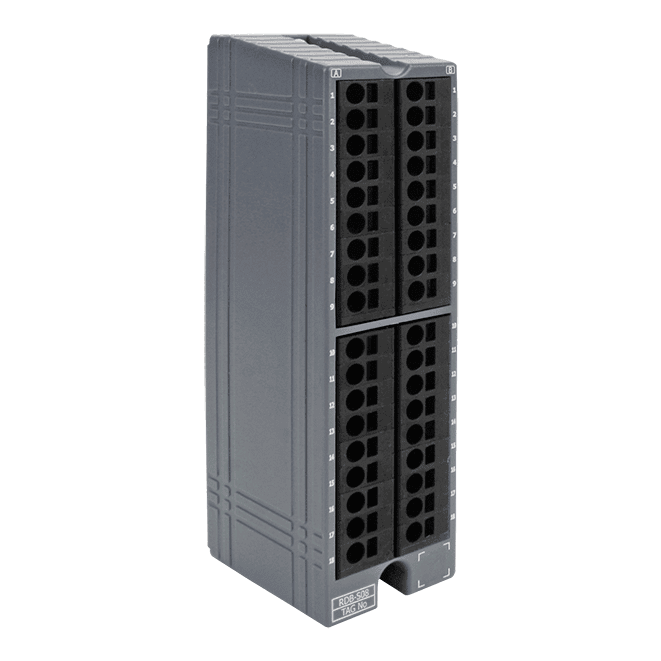

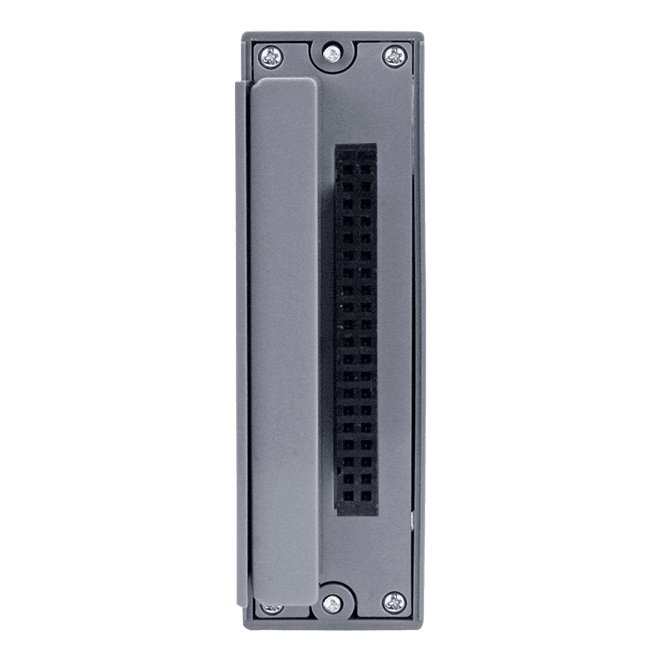

RDB-S08 I/O Termination Board, Spring Clamp, 32-ch Digital Input
RDB-S08 CR spring clamp termination board for the R-9040, providing 32 digital input channels with disconnection detection that raises an alarm if the board separates from the I/O module.
- Spring clamp terminal wiring for faster field connection
- Termination board disconnection detection with timely alarm
- 32 digital input channels
- Designed for use with the R-9040
- Dimensions 32 x 115 x 60 mm
- Operating temperature -25 °C ~ 70 °C
1 695,16 kr per st.
| 1–9 st. | 1 695,16 kr | |
|---|---|---|
| 10–30 st. | 1 650,85 kr | −3 % |
| 31+ st. | 1 617,61 kr | −5 % |
Produktinformation "RDB-S08 I/O Termination Board, Spring Clamp, 32-ch Digital Input"
The RDB-S08 CR is a single I/O termination board designed for the R-9040 in the RIO-98x0 redundancy I/O series. It gives 32 digital input channels a spring clamp wiring interface, which speeds up field termination and shortens system installation time.
Disconnection detection is built in. If the termination board becomes separated from the I/O module, an alarm is triggered promptly, so faults are flagged before they can affect signal integrity. This makes the board well suited to installations where reliable, stable signal wiring is a priority.
This RoHS-compliant variant measures 32 x 115 x 60 mm and is rated for an operating temperature of -25 °C ~ 70 °C and a humidity range of 5 ~ 95% RH, non-condensing.
Applications
- Digital input wiring for R-9040 redundancy I/O systems
- Industrial environments requiring high reliability and stable signal wiring
- Systems where early warning of termination board disconnection is required
| Product type: | I/O Termination Board |
|---|---|
| Interface: | Spring clamp terminal |
| Digital inputs: | 32 |
| Operating temperature: | -25 °C ~ 70 °C |
Specifikationer
| Digital Input | |
|---|---|
| Channels | 32 |
| Mechanical | |
| Dimensions (mm) | 32 x 115 x 60 |
| Environment | |
| Operating Temperature | -25 °C ~ 70 °C |
| Humidity | 5 ~ 95% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
