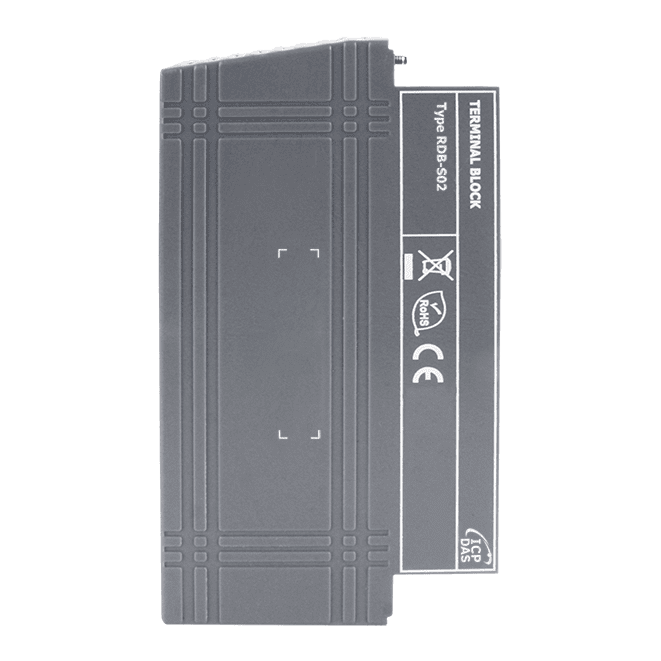

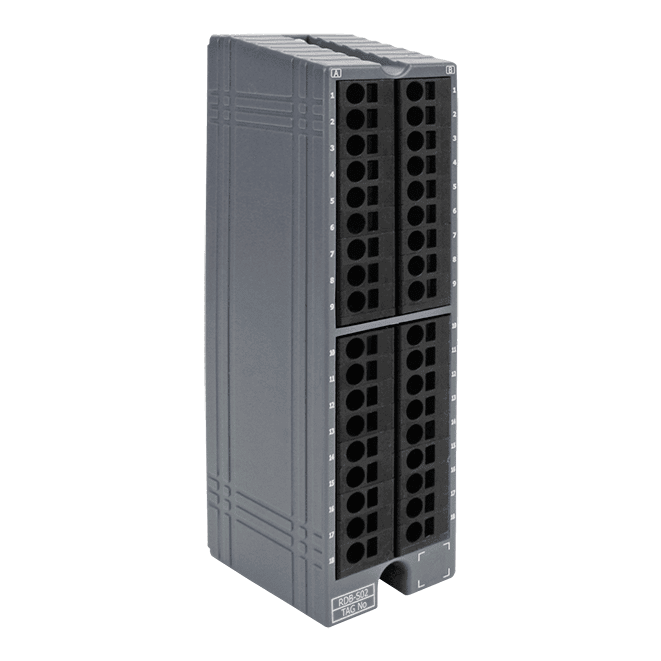

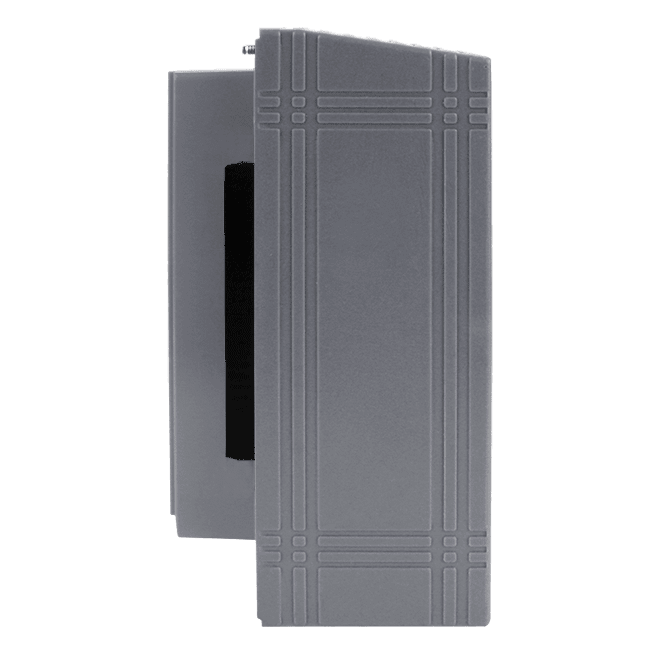

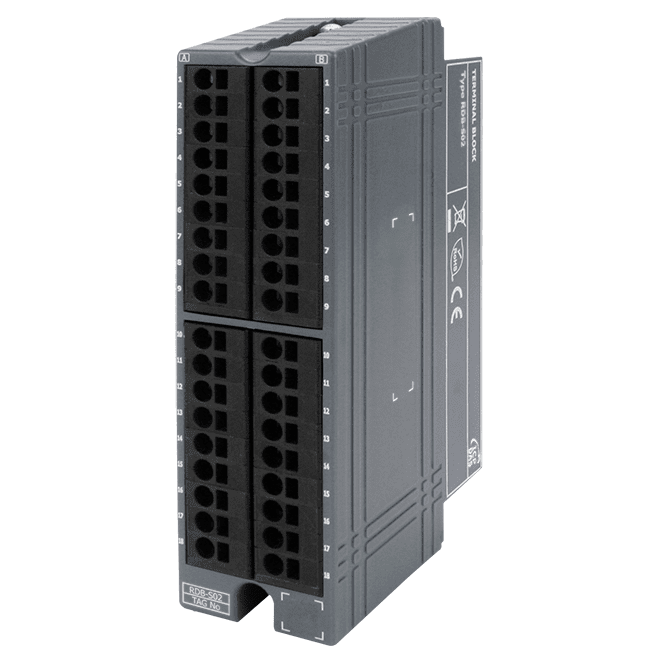

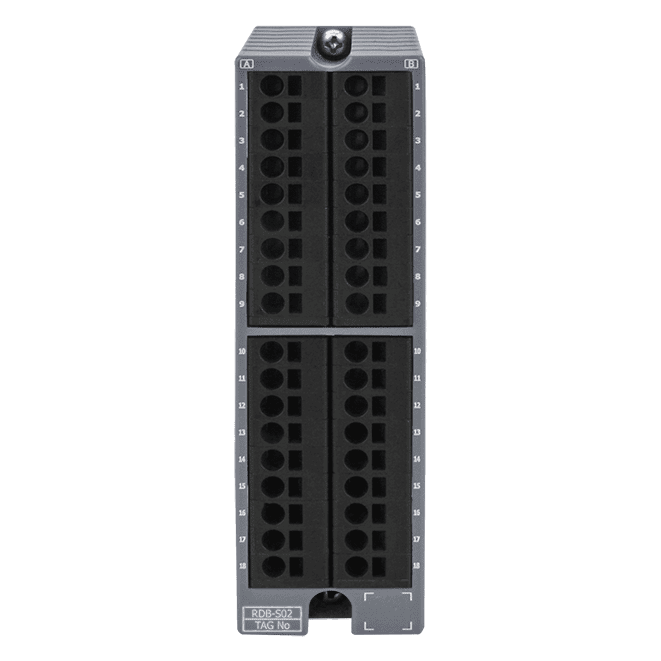

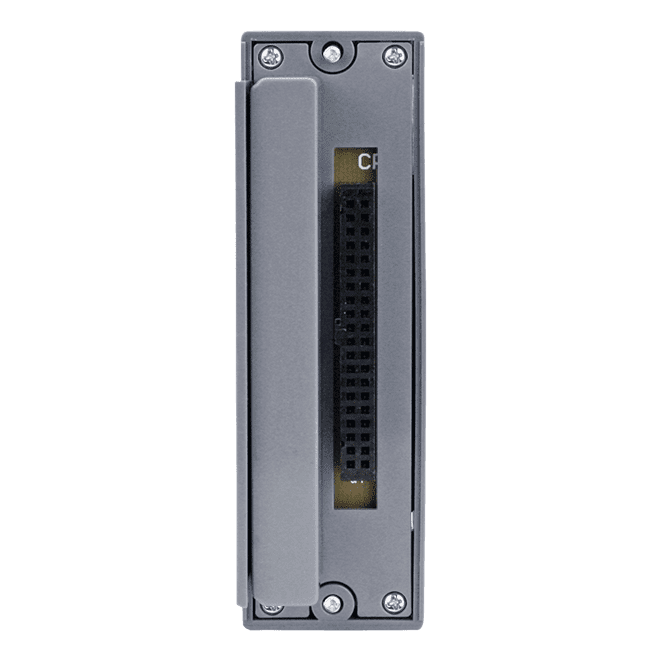

RDB-S02 Spring Clamp Termination Board for R-9019, 16-ch Analog Input
Spring clamp termination board for the R-9019 I/O module, with disconnection detection to raise an alarm if the board separates from the I/O module.
- Spring clamp terminals for faster, simpler field wiring
- Disconnection detection raises an alarm if the board separates from the I/O module
- Designed for use with the R-9019
- 16 analog input channels
- Operating temperature -25 °C ~ +70 °C, humidity 5 ~ 95% RH non-condensing
- Dimensions 32 x 115 x 60 mm
2 094,03 kr per st.
| 1–9 st. | 2 094,03 kr | |
|---|---|---|
| 10–30 st. | 2 027,55 kr | −3 % |
| 31+ st. | 1 994,31 kr | −5 % |
Produktinformation "RDB-S02 Spring Clamp Termination Board for R-9019, 16-ch Analog Input"
The RDB-S02 CR is a single I/O termination board for the R-9019. It provides spring clamp terminals for field wiring, which reduces wiring effort and shortens installation time on new or retrofit systems.
The board includes termination board disconnection detection. If it becomes detached from the I/O module, an alarm is triggered promptly, helping to maintain the integrity of signal wiring and reduce the risk of undetected faults. This suits industrial installations where reliability and stability are critical.
- Spring clamp terminals for wiring
- 16 analog input channels per the specification
- Operating range -25 °C to +70 °C
- Dimensions 32 x 115 x 60 mm
Applications
- Industrial signal wiring for R-9019 based I/O systems
- Installations requiring high wiring reliability and stability
- Systems where early warning of a termination board disconnection is needed
| Product type: | Termination board |
|---|---|
| Analog inputs: | 16 |
| Operating temperature: | -25 ~ +70 °C |
Specifikationer
| Analog Input | |
|---|---|
| Channels | 16 |
| Mechanical | |
| Dimensions (mm) | 32 x 115 x 60 |
| Environment | |
| Operating Temperature | -25 °C ~ +70 °C |
| Humidity | 5 ~ 95% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
