PROFI-8155-G PROFIBUS DP Remote I/O Unit with 1 I/O Slot
PROFIBUS DP-V0/DP-V1 slave remote I/O unit with one slot for I-8K or I-87K series I/O modules, rotary-switch addressing and GSD-file configuration.
- PROFIBUS DP-V0 and DP-V1 (read/write) slave with automatic transmission rate detection
- One I/O slot for I-8K, I-87K Low Profile and I-87K High Profile modules
- Station address 0~126 set by rotary switches; SSA telegram set by DP master (Class 2 only)
- Module configuration via GSD file, with no additional setting tools required
- Hot-swap support for I-87K High Profile I/O modules
- 3000 VDC isolation on the PROFIBUS side and 2500 Vrms bus-to-logic isolation
3 412,49 kr per st.
| 1–9 st. | 3 412,49 kr | |
|---|---|---|
| 10–30 st. | 3 312,77 kr | −3 % |
| 31+ st. | 3 246,29 kr | −5 % |
Produktinformation "PROFI-8155-G PROFIBUS DP Remote I/O Unit with 1 I/O Slot"

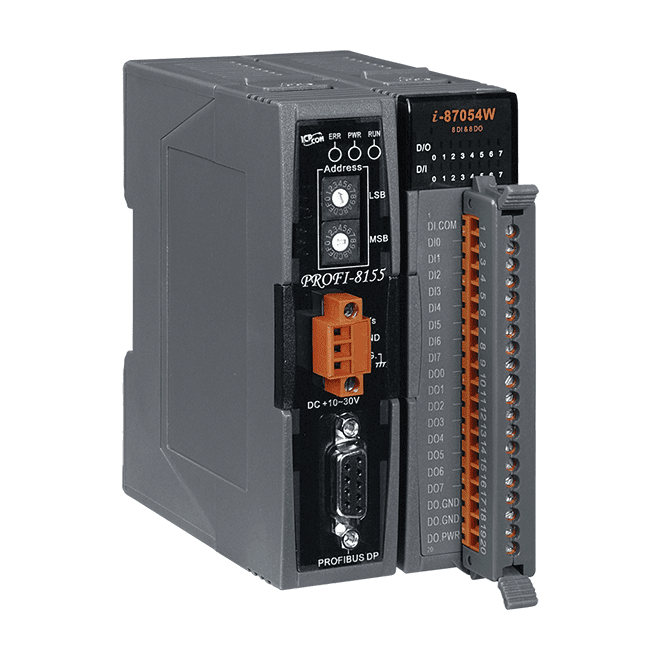

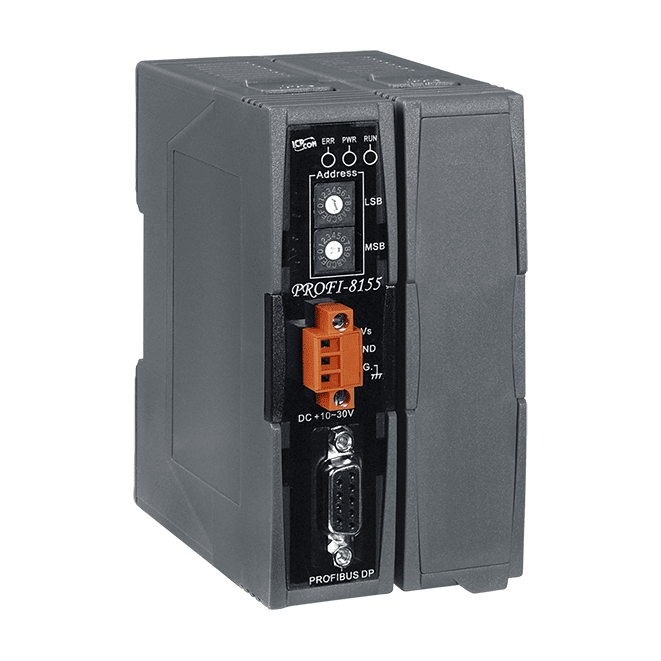

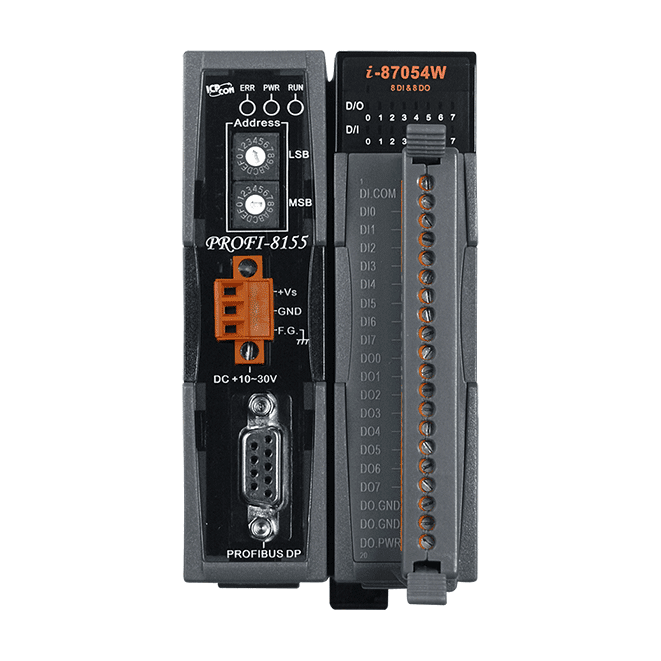

The PROFI-8155-G CR is a PROFIBUS DP slave unit that adds one I/O slot to a PROFIBUS network. The slot accepts I-8K, I-87K Low Profile and I-87K High Profile I/O modules, so a single unit can be fitted with the signal type a machine or process section needs without changing the network design.
Network integration is straightforward. The unit supports DP-V0 and DP-V1 read/write slave operation, detects the transmission rate automatically and takes its station address from rotary switches. Modules are selected and arranged through the GSD file, so no separate configuration tool is required for setup.
For maintenance, I-87K High Profile modules can be hot-swapped while the unit is running. The PROFIBUS side is isolated and protected against ESD, making the unit suitable for DIN-rail mounting in industrial control cabinets across a range of automation and process environments.
Applications
- Industrial automation
- Factory automation
- Process automation
| Product type: | Remote I/O unit |
|---|---|
| Interface: | PROFIBUS |
| Protocol: | DP-V0, DP-V1 |
| Ports: | RS-232 (firmware update) |
| Isolation: | 3000 VDC (DC-to-DC), 2500 Vrms (bus-to-logic) |
| Operating temperature: | -25 ~ +75℃ |
| Mounting: | DIN-rail |
Specifikationer
| CPU Module | |
|---|---|
| CPU | 80186, 80 MHz or compatible |
| EEPROM | 2 KB |
| Flash | 512 KB |
| SRAM | 512 KB |
| Watchdog Timer | Watchdog IC CPU built-in |
| LED Indicators | |
| Status | PWR LED, RUN LED, ERR LED |
| I/O Expansion | |
| Slots | 1 |
| COM Ports | |
| Ports | RS-232 on board (For updating firmware)Note 1. |
| PROFIBUS | |
| Controller | Profichil VPC3+C |
| Transceiver | ADI ADM2486 |
| Baud Rate | 9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic |
| Protocol | DP-V0 DP-V1 |
| Power | |
| Consumption | 3 W |
| Mechanical | |
| Dimensions (mm) | 95 x 91 x 132 (W x L x H) |

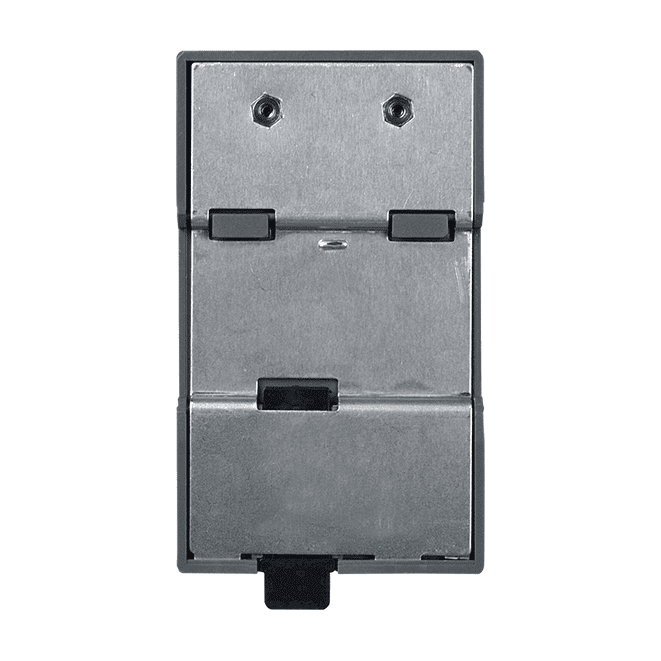

| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75℃ |
| Storage Temperature | -40 ~ +80 ℃ |
| Humidity | 5 ~ 95% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
