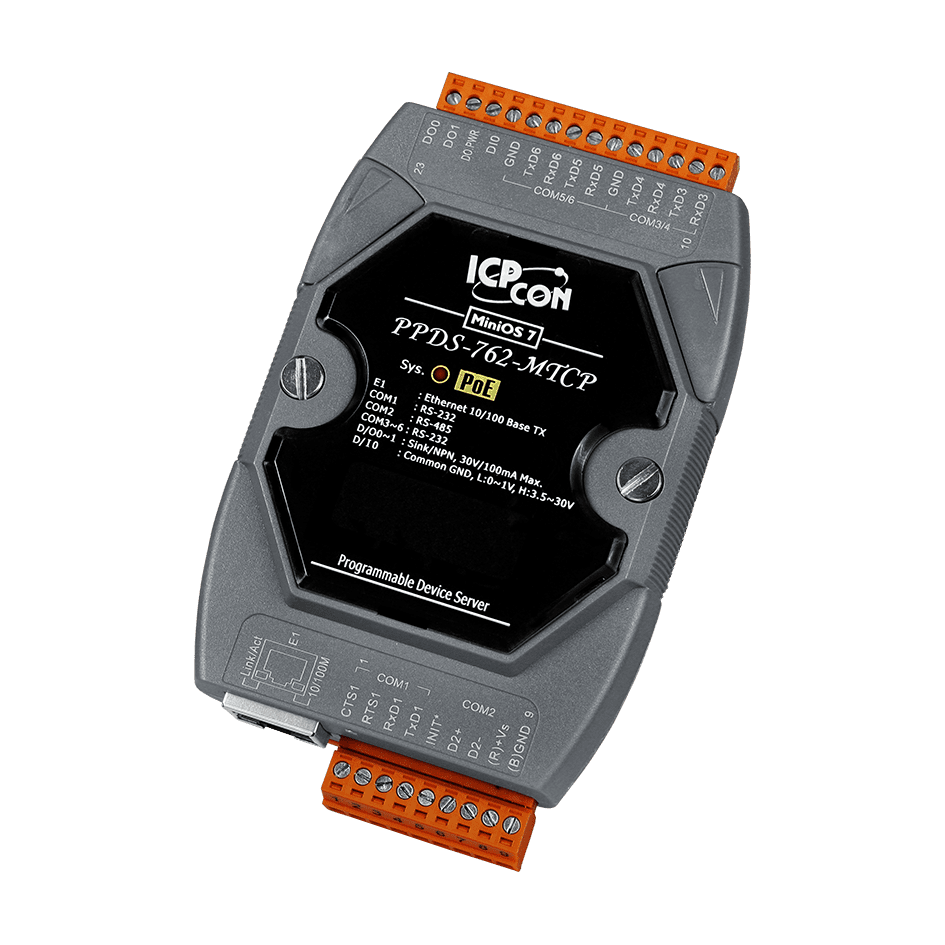

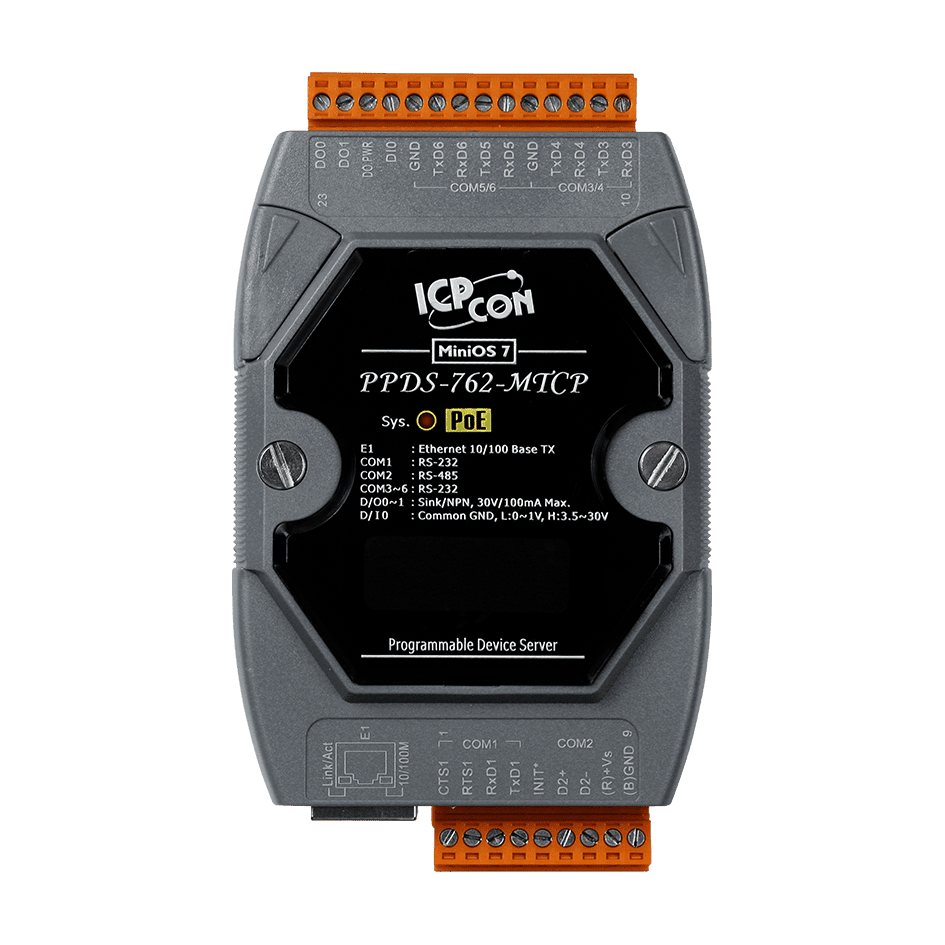

PPDS-762-MTCP Device Server, 5x RS-232 and 1x RS-485 to Ethernet, PoE
Programmable serial-to-Ethernet device server with 5 RS-232 ports, 1 RS-485 port, 1 DI, 2 DO, PoE and a Modbus TCP to RTU/ASCII gateway. Includes CA-0910 cable.
- Five RS-232 ports and one RS-485 port, bridged to a 10/100 Base-TX Ethernet connection
- VxComm driver extends serial ports as virtual COM ports on 32/64-bit Windows 7 SP1/10/2012/2016
- Modbus TCP to RTU/ASCII gateway for SCADA and HMI communications
- Programmable Xserver structure with built-in MiniOS7 that boots in one second
- IEEE 802.3af Class 1 PoE or +12 ~ 48 VDC terminal block power input
- 1 digital input (latched and counter functions) and 2 open-collector digital outputs, sink NPN, 30 VDC, 100 mA max
4 099,42 kr per st.
| 1–9 st. | 4 099,42 kr | |
|---|---|---|
| 10–30 st. | 3 977,54 kr | −3 % |
| 31+ st. | 3 888,90 kr | −5 % |
Produktinformation "PPDS-762-MTCP Device Server, 5x RS-232 and 1x RS-485 to Ethernet, PoE"
The PPDS-762-MTCP bridges legacy serial equipment onto an Ethernet network. It provides five RS-232 ports and one RS-485 port, and the VxComm driver can map these ports onto standard COM ports on a Windows PC, so existing serial software can keep working over the network.
Beyond simple serial tunnelling, the unit can be programmed with the Xserver structure to build custom Ethernet applications. It also acts as a Modbus TCP to RTU/ASCII gateway, allowing SCADA and HMI systems that speak Modbus TCP to reach serial Modbus slaves. The model is powered over Ethernet to IEEE 802.3af Class 1, or from a +12 ~ 48 VDC terminal block, and includes a DI, two open-collector DOs and a removable terminal block for wiring.
The shop package includes the CA-0910 cable. The plastic housing mounts on DIN-rail or wall, and the unit is rated for operation from -25 ~ +75 °C.
Applications
- Factory Automation
- Building Automation
- Home Automation
| Product type: | Serial-to-Ethernet device server |
|---|---|
| Interface: | RS-232 / RS-485 |
| Protocol: | Modbus TCP |
| Digital inputs: | 1 |
| Digital outputs: | 2 |
| Ports: | 6 serial, 1 Ethernet |
| PoE: | IEEE 802.3af, Class 1 |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail / wall |
| Housing: | Plastic |
Specifikationer
| CPU Module | |
|---|---|
| CPU | 80186-80 MHz or compatible |
| EEPROM | 16 KB; Data retention: 40 years; 1,000,000 erase/write cycles. |
| Flash | 512 KB ; Erase unit is one sector (64 KB) ; 100,000 erase/write cycles |
| SRAM | 512 KB |
| Watchdog Timer | Yes |
| LED Indicators | |
| Status | 1 x Power/PoE |
| Digital Input | |
| Channels | 1 |
| Type | Dry Contact |
| Sink/Source (NPN/PNP) | Source, Common Ground |
| ON Voltage Level | +3.5 ~ +30 V |
| OFF Voltage Level | +1 V max. |
| Digital Output | |
| Channels | 2 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink (NPN) |
| Load Voltage | 30 VDC, max. |
| Load Current | 100 mA, max. |
| Ethernet | |
| Ports | 10/100 Base-TX, RJ-45 port (Auto-negotiating, auto MDI/MDI-X, LED indicator) |
| COM Ports | |
| Ports | 4 x 3-wire RS-232 1 x 5-wire RS-232 1 x RS-485 |
| Baud Rate | 115200 bps Max. |
| Bias Resistor | Yes, 1 KΩ |
| Parity | None, Even, Odd, Mark, Space None parity is required when using 8 data bits and 2 stop bits on COM1/COM2. |
| Data Bit | 7, 8: for COM1 and COM2 5, 6, 7, 8: for COM3 ~ COM6 |
| Stop Bit | 1, 2: for COM1 ~ COM6 |
| Node Address | 254 (max.) |
| Power | |
| Consumption | 2.2 W |
| Powered from PoE | IEEE 802.3af, Class 1 |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 72 mm x 35 mm x 123 mm (W x L x H) |
| Installation | DIN-Rail or Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 90% RH, non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
