PM-2133D-100P Modbus RTU Three-Phase Power Meter, 60 A Clip-on CT
PM-2133D-100P CR three-phase power meter with Modbus RTU over RS-485, 8-digit LED display and 60 A clip-on CTs with 10 mm aperture for energy monitoring.
- Modbus RTU over one RS-485 port, with baud rates from 9600 to 115200
- True RMS voltage and current, plus active, apparent and reactive power and energy
- Bi-directional energy measurement for 3P4W, 3P3W, 1P3W and 1P2W wiring
- Clip-on 60 A CT with 10 mm aperture and 4 m wire lead, three supplied
- Active power (W) accuracy better than 0.5% at PF=1
- Total harmonic distortion (THD) measurement
3 700,55 kr per st.
| 1–9 st. | 3 700,55 kr | |
|---|---|---|
| 10–30 st. | 3 589,76 kr | −3 % |
| 31+ st. | 3 512,20 kr | −5 % |
Produktinformation "PM-2133D-100P Modbus RTU Three-Phase Power Meter, 60 A Clip-on CT"
PM-2133D-100P CR is a three-phase power meter for engineers who need real-time electrical readings and energy data over Modbus RTU. It measures true RMS voltage and current, active, apparent and reactive power and energy, power factor and frequency, with bi-directional energy metering and total harmonic distortion (THD) readings shown on an 8-digit LED display.

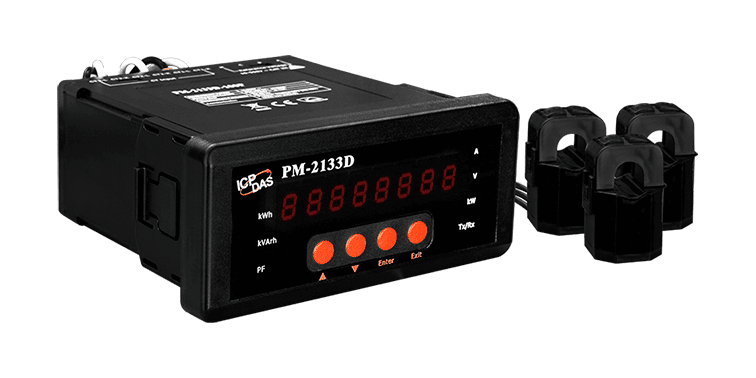

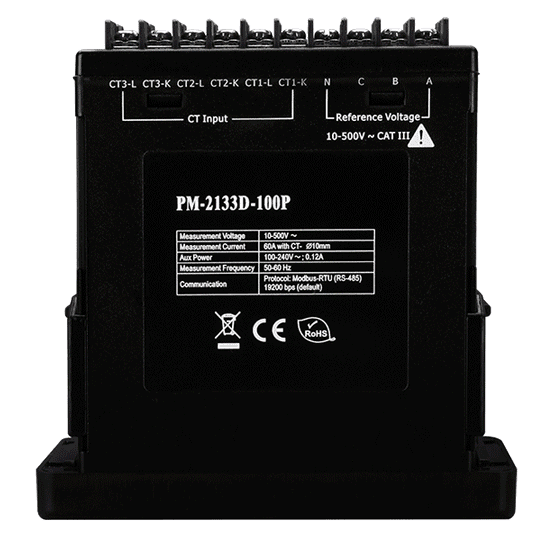

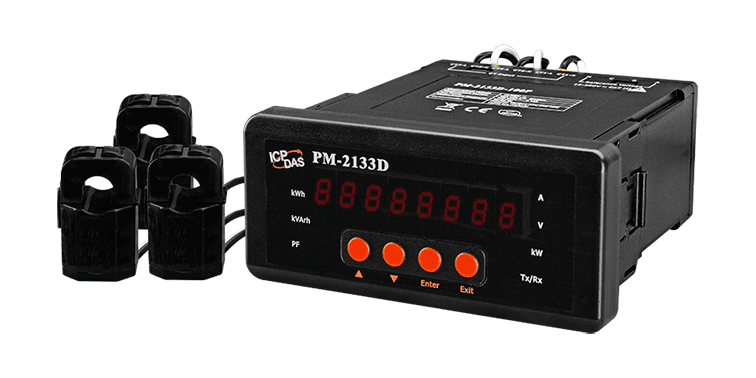

This variant ships with three 60 A clip-on current transformers, each with a 10 mm aperture and a 4 m wire lead, so the meter can be fitted to existing conductors without disconnecting them. It supports 3P4W, 3P3W, 1P3W and 1P2W wiring arrangements and accepts an input voltage range of 10 ~ 500 V.
The meter provides a single RS-485 port with a 3000 VDC isolation rating and communicates using Modbus RTU at 9600, 19200 (default), 38400 or 115200 baud. Its plastic casing is designed for panel mounting, with an operating range of -20 ~ +70 °C.
Applications
- Generator monitoring
- Switchgear distribution systems
- Energy management
| Product type: | Power meter |
|---|---|
| Interface: | RS-485 |
| Protocol: | Modbus RTU |
| Ports: | 1 |
| Isolation: | 3000 VDC |
| Power input: | 85 ~ 264 VAC |
| Operating temperature: | -20 ~ +70 °C |
| Mounting: | Panel |
| Housing: | Plastic |
Specifikationer
| AC Power Measurement | |
|---|---|
| Wiring | 3P4W-3CT, 3P3W-2CT, 3P3W-3CT, 1P2W-1CT, 1P3W-2CT |
| Loops | 3-phase: 1; 1-phase: 3 @ 1P2W-1CT, 1 @ 1P3W-2CT |
| Input Voltage | 10 ~ 500 V |
| Input Current | PM-2133D-005P: CTØ10 mm (0.05 A ~ 5 A) PM-2133D-100P: CTØ10 mm (0.05 A ~ 60 A) PM-2133D-160P: CTØ16 mm (0.1 A ~ 100 A) PM-2133D-240P: CTØ24 mm (0.15 A ~ 200 A) PM-2133D-360P: CTØ36 mm (0.3 A ~ 300 A) PM-2133D-400P: CTØ36 mm (0.3 A ~ 400 A) |
| Input Frequency | 50 Hz (Range 45 ~ 55 Hz)/60 Hz (Range 55 ~ 65 Hz) |
| W Accuracy | Better than 0.5% (PF=1) |
| Power Parameter Measurement | True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh), Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency (45 ~ 65 Hz) |
| Data Update Rate | 1 Second |
| LED Display | Yes, 8-digit |
| COM Ports | |
| Ports | 1 x RS-485 |
| Baud Rate | 9600, 19200 (default), 38400, 115200 |
| Data Format | N,8,1; N,8,2; E,8,1; E,8,2; O,8,1; O,8,2 |
| Protocol | Modbus RTU |
| Isolation | 3000 VDC |
| Power | |
| Input Range | +85 ~ +264 VAC (277 VAC available) |
| Consumption | 6 W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 110 x 115 x 50 (W x L x H) |
| Installation | Panel Mounting |
| Environment | |
| Operating Temperature | -20 ~ +70 °C |
| Storage Temperature | -25 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
