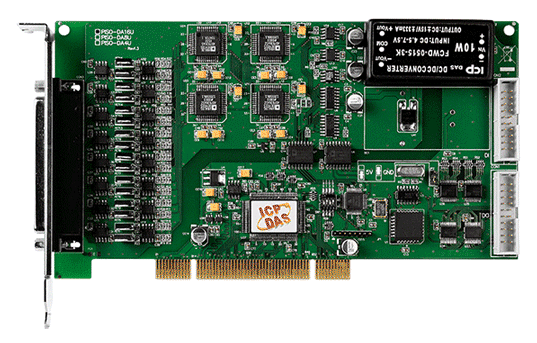

PISO-DA16U PCI 16-ch 14-bit Isolated Analogue Output Board
16-channel, 14-bit isolated analogue output board for universal PCI slots, with ±10 V voltage or 0 to 20 mA current output per channel. Includes one CA-4002 D-Sub connector.
- 16 analogue output channels, 14-bit resolution, each configurable as ±10 V voltage or 0 to 20 mA current output
- 2500 V DC bus-type isolation with a built-in DC/DC converter rated at 3000 VDC protection
- Universal PCI interface supporting 3.3 V and 5 V slots, 32-bit, 33 MHz
- 16-channel 5 V/TTL digital input with pull-high and pull-low function
- 16-channel 5 V/TTL digital output
- Software calibration with calibration data saved in EEPROM, no jumpers or trim-pots required
6 470,43 kr per st.
| 1–9 st. | 6 470,43 kr | |
|---|---|---|
| 10–30 st. | 6 282,08 kr | −3 % |
| 31+ st. | 6 149,12 kr | −5 % |
Produktinformation "PISO-DA16U PCI 16-ch 14-bit Isolated Analogue Output Board"
The PISO-DA16U CR is a universal PCI board for engineers who need sixteen isolated 14-bit analogue outputs in a PC-hosted acquisition or control system. It can be used as a direct replacement for the PIO-DA series without changing existing software or drivers, which helps when upgrading or maintaining legacy systems.
Each channel can be set individually to voltage output (±10 V) or current output (0 to 20 mA). Calibration is performed in software rather than with jumpers or trim-pots, and the calibration data is stored in EEPROM. Sixteen 5 V/TTL digital inputs and sixteen 5 V/TTL digital outputs are also provided on the same board, with 2500 V DC bus-type isolation and a built-in DC/DC converter with 3000 VDC protection to help protect the host PC.
An onboard 4-bit Card ID switch lets software identify individual boards when two or more are installed in the same computer. The board ships with one CA-4002 D-Sub connector.
Applications
- High speed data acquisition systems
- Process monitoring and control
- Vibration analysis
- Digital pattern generation from digital I/O port
| Product type: | DAQ board |
|---|---|
| Interface: | Universal PCI |
| Digital inputs: | 16 |
| Digital outputs: | 16 |
| Analog outputs: | 16 |
| Isolation: | 2500 V DC bus |
| Operating temperature: | 0 ~ +60 °C |
Specifikationer
| Hardware | |
|---|---|
| Connector | Female DB37 x 1 20-pin Box header x 2 |
| Card ID | Yes (4-bit) |
| Analog Output | |
| Channels | PISO-DA4U : 4 PISO-DA8U : 8 PISO-DA16U : 16 |
| Range | Voltage: ±10 V Current: 0 ~ 20 mA |
| Resolution | 14-bit |
| Accuracy | 0.04% of FSR ±2 LSB @ 25 °C, ± 10 V |
| Response Time | 333 kHz (Typical) |
| Voltage Output Capability | ±5 mA |
| Slew Rate | 0.71 V/μs |
| Isolation | 2500 V (Bus Type) |
| Operation Mode | Static Update |
| Digital Input | |
| Channels | 16 |
| Type | 5 V/TTL |
| ON Voltage Level | 2.0 V Min. |
| OFF Voltage Level | 0.8 V Max. |
| Response Speed | 1.0 MHz (Typical) |
| Trigger Mode | Static Update |
| Digital Output | |
| Channels | 16 |
| Type | 5 V/TTL |
| Operation Mode | Static Update |
| Load Voltage | Logic 0: 0.4 V Max. Logic 1: 2.4 V Min. |
| Load Current | Sink: 2.4 mA @ 0.8 V Source: 0.8 mA @ 2.0 V |
| Response Speed | 1.0 MHz (Typical) |
| Timer/Counter/Frequency | |
| Channels | 3 |
| Type | 5 V/TTL |
| Resolution | 16-bit |
| Reference Clock | Internal: 4 MHz |
| PC Bus | |
| Type | 3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus | 8-bit |
| Power | |
| Consumption | PISO-DA4U : 2200 mA @ +5 V PISO-DA8U : 2400 mA @ +5 V PISO-DA16U : 3000 mA @ +5 V |
| Mechanical | |
| Dimensions (mm) | 105 x 188 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
