PIO-DA8U/S PCI Analog Output Board, 8-ch 14-bit with CA-3710 Cable
8-channel 14-bit universal PCI analog output board with ±10 V and 0 ~ 20 mA outputs, 16 digital inputs and 16 digital outputs, supplied with a CA-3710 D-Sub cable.
- 8-channel, 14-bit analogue output with ±10 V voltage and 0 ~ 20 mA current ranges
- Individual channel configuration as voltage or current output
- Software calibration with calibration data saved in EEPROM
- Universal PCI interface (3.3 V/5 V), 32-bit, 33 MHz
- 16-channel 5 V/TTL digital input with pull-high and pull-low function
- 16-channel 5 V/TTL digital output
5 661,62 kr per st.
| 1–9 st. | 5 661,62 kr | |
|---|---|---|
| 10–30 st. | 5 495,43 kr | −3 % |
| 31+ st. | 5 384,64 kr | −5 % |
Produktinformation "PIO-DA8U/S PCI Analog Output Board, 8-ch 14-bit with CA-3710 Cable"

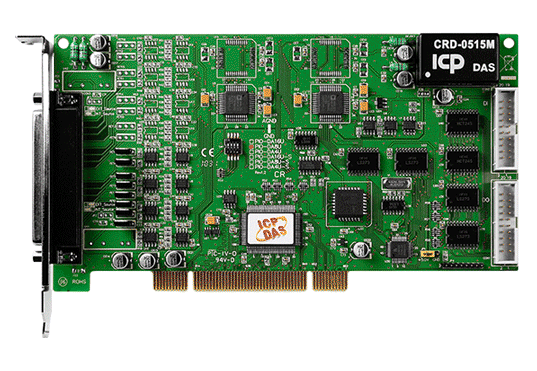

The PIO-DA8U/S CR is an 8-channel analogue output board for universal PCI slots, supporting both 3.3 V and 5 V signalling. Each channel can be set individually as a voltage output (±10 V) or a current output (0 ~ 20 mA), with 14-bit resolution and static update operation.
Calibration is performed in software rather than with jumpers or trim-pots, and the calibration data can be stored in EEPROM. An onboard 4-bit Card ID switch (version 1.1 or above) lets software identify the board when two or more cards are fitted in the same computer.
This ordering code includes a CA-3710 D-Sub cable. The board also provides 16 channels of 5 V/TTL digital input with pull-high and pull-low options, 16 channels of 5 V/TTL digital output and three 16-bit timer/counter channels. Operating temperature is 0 ~ +60°C.
Applications
- High speed data acquisition systems
- Process monitoring and control
- Vibration analysis
- Digital pattern generation from digital I/O ports
| Product type: | PCI analogue output board |
|---|---|
| Interface: | PCI |
| Digital inputs: | 16 |
| Digital outputs: | 16 |
| Power input: | 800 mA @ +5 V |
| Operating temperature: | 0 ~ +60°C |
| Mounting: | PCI slot |
Specifikationer
| Hardware | |
|---|---|
| Connector | Female DB37 x 1 20-pin Box header x 2 |
| Card ID | Yes(4-bit) for Version 1.1 or above |
| Analog Output | |
| Channels | PIO-DA4U : 4 PIO-DA8U : 8 PIO-DA16U : 16 |
| Range | Voltage: ±10 V Current: 0 ~ 20 mA |
| Resolution | 14-bit |
| Accuracy | 0.04% of FSR ±2 LSB @ 25 °C, ± 10 V |
| Response Time | 333 kHz (Typical) |
| Voltage Output Capability | ±5 mA |
| Slew Rate | 0.71 V/μs |
| Operation Mode | Static Update |
| Digital Input | |
| Channels | 16 |
| Type | 5 V/TTL |
| ON Voltage Level | 2.0 V Min. |
| OFF Voltage Level | 0.8 V Max. |
| Response Speed | 1.0 MHz (Typical) |
| Trigger Mode | Static Update |
| Digital Output | |
| Channels | 16 |
| Type | 5 V/TTL |
| Operation Mode | Static Update |
| Load Voltage | Logic 0: 0.4 V Max. Logic 1: 2.4 V Min. |
| Load Current | Sink: 2.4 mA @ 0.8 V Source: 0.8 mA @ 2.0 V |
| Response Speed | 1.0 MHz (Typical) |
| Timer/Counter/Frequency | |
| Channels | 3 |
| Type | 5 V/TTL |
| Resolution | 16-bit |
| Reference Clock | Internal: 4 MHz |
| PC Bus | |
| Type | 3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus | 8-bit |
| Power | |
| Consumption | PIO-DA4U : 600 mA@ +5 V PIO-DA8U : 800 mA@ +5 V PIO-DA16U : 1400 maA @ +5 V |
| Mechanical | |
| Dimensions (mm) | 105.1 x 188 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
