PIO-D144LU Universal PCI Digital I/O Board, 144-ch 5 V/CMOS
144-channel universal PCI digital I/O card with 18 8-bit bi-directional ports, 5 V/CMOS levels, buffered I/O lines and pull-high/low jumpers to predefine DI status.
- Universal PCI interface supporting 3.3 V/5 V bus signalling
- 144 digital I/O channels in eighteen 8-bit bi-directional ports, all buffered on the board
- Emulates 6/7 industrial-standard 8255 PPI ports (Mode 0)
- Pull-high/low jumpers predefine DI status when channels are disconnected or interrupted
- 4-bit Card ID switch to identify boards when two or more are installed
- 4-channel interrupt source and DI/O response time of approximately 1 μs (1 MHz)
2 570,44 kr per st.
| 1–9 st. | 2 570,44 kr | |
|---|---|---|
| 10–30 st. | 2 492,89 kr | −3 % |
| 31+ st. | 2 437,49 kr | −5 % |
Produktinformation "PIO-D144LU Universal PCI Digital I/O Board, 144-ch 5 V/CMOS"

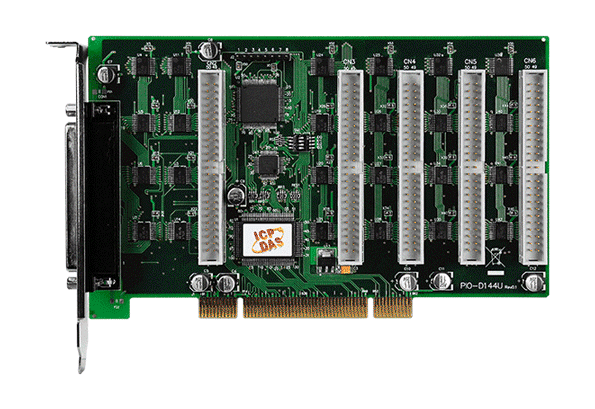

PIO-D144LU (ordering code PIO-D144LU CR) is a PC-based digital I/O card for universal PCI slots, providing 144 TTL-level digital I/O lines organised as eighteen 8-bit bi-directional ports. Ports are grouped in threes as PA, PB and PC, and all lines are buffered on the board. All ports default to inputs on power-up or after a reset.
The card suits applications that need many digital channels in one computer. A 4-bit Card ID switch lets software identify each board when two or more are installed, and pull-high/low jumpers define the DI state when a channel is disconnected or interrupted, rather than leaving it floating. The card emulates 6/7 industrial-standard 8255 PPI ports in Mode 0, which simplifies migration of existing 8255-based code.
Wiring is made through one female DB37 connector and five 50-pin box headers. Software support covers Linux, DOS and Windows, with a DLL, an ActiveX control and sample programs for several languages, including C#.NET, Visual Basic.NET and LabVIEW.
Applications
- PC-based digital input and output for 5 V/CMOS signals
- Multi-board systems where several digital I/O cards share one computer
- Interrupt-driven digital monitoring and control
| Product type: | Digital I/O board |
|---|---|
| Interface: | Universal PCI |
| Digital inputs: | 144 |
| Digital outputs: | 144 |
| Ports: | 18 |
| Operating temperature: | 0 ~ +60 °C |
Specifikationer
| Hardware | |
|---|---|
| Connector | Female DB37 x 1 50-pin box header x 5 |
| Card ID | Yes (4-bit) |
| Digital Input | |
| Channels | 144 (Bi-Direction) |
| Type | 5 V/CMOS |
| ON Voltage Level | 2.0 V Min. |
| OFF Voltage Level | 0.8 V Max. |
| Response Speed | 500 kHz (Typical) |
| Trigger Mode | Static Update |
| Digital Output | |
| Channels | 144 (Bi-Direction) |
| Type | 5 V/CMOS |
| Operation Mode | Static Update |
| Load Voltage | Logic 0: 0.1 V Max. Logic 1: 4.4 V Min. |
| Load Current | Sink: 6 mA @ 0.33 V Source: 6 mA @ 4.77 V |
| Response Speed | 500 kHz (Typical) |
| PC Bus | |
| Type | 3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus | 8-bit |
| Power | |
| Consumption | 250 mA @ +5 V |
| Mechanical | |
| Dimensions (mm) | 105 x 180 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
