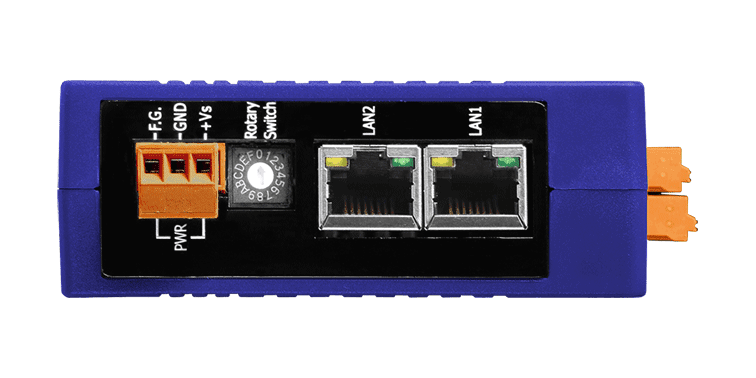

PFN-2053 PROFINET I/O Module, 16-ch Dry Contact Digital Input
PROFINET IO Device module with 16 non-isolated dry contact digital inputs, cyclic time down to 1 ms, for DIN-rail installation in factory and process automation.
- PROFINET IO Device with Conformance Class B and RT Class 1
- 16 non-isolated dry contact digital inputs, source type
- Cyclic time of 1 ms (min)
- Generic GSDML file (Version 2.25) for any PROFINET engineering tool
- 4 kV contact ESD protection on any terminal
- Ethernet services include ICMP, IGMP, ARP, DHCP, TELNET, TFTP, SNMP and VLAN priority tagging
3 567,60 kr per st.
| 1–9 st. | 3 567,60 kr | |
|---|---|---|
| 10–30 st. | 3 456,80 kr | −3 % |
| 31+ st. | 3 390,33 kr | −5 % |
Produktinformation "PFN-2053 PROFINET I/O Module, 16-ch Dry Contact Digital Input"

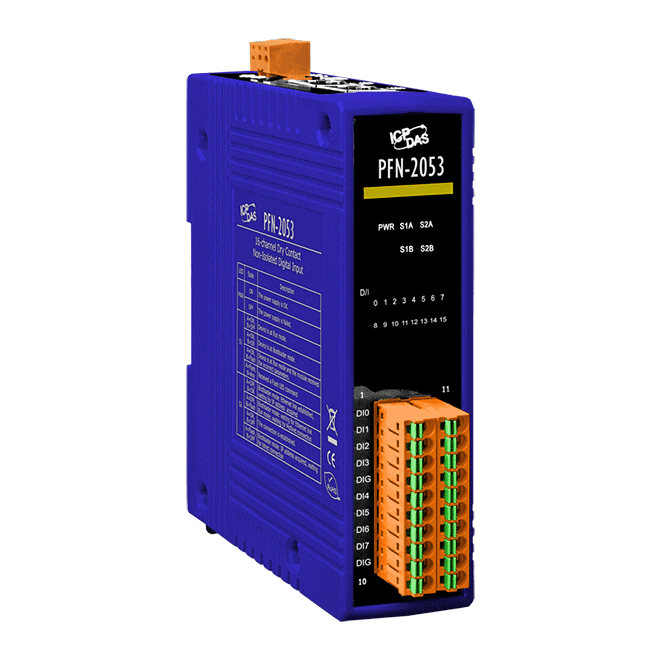

The PFN-2053 CR adds 16 dry contact digital inputs to a PROFINET network as an IO Device. The inputs are non-isolated and use a source-type arrangement, with ON detected when a contact closes to GND and OFF when it is open. Its minimum cyclic time of 1 ms suits applications that need fast, deterministic updates of switch and contact status.

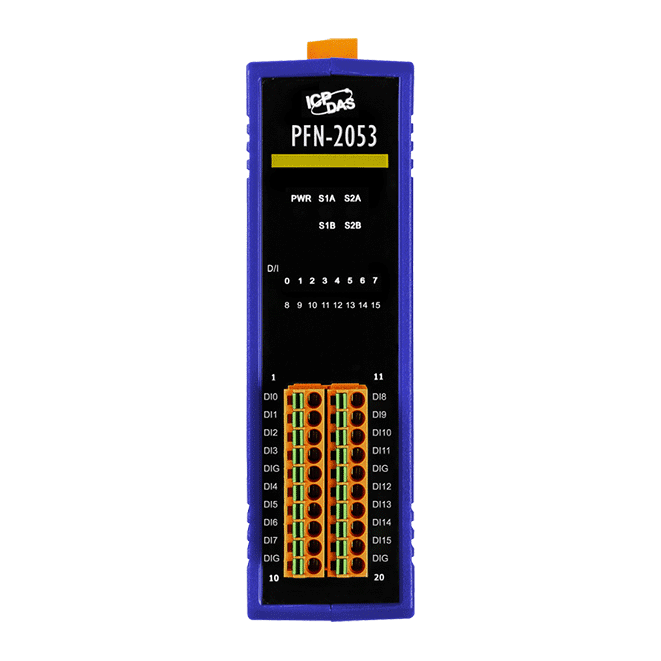

Engineers can integrate the module using the generic GSDML file (Version 2.25), which works with any PROFINET engineering tool. Each terminal carries 4 kV contact ESD protection, and the unit supports PROFINET Conformance Class B and RT Class 1. Diagnostics are available through PWR, S1A, S1B, S2A and S2B LED indicators.
- Suited to factory and process automation installations
- Mounts on DIN-rail with an operating range of -25 ~ +75 ℃
Applications
- Industrial Automation
- Factory Automation
- Process Automation
| Product type: | Fieldbus I/O module |
|---|---|
| Interface: | Ethernet |
| Protocol: | PROFINET |
| Digital inputs: | 16 |
| Isolation: | Non-isolated |
| Operating temperature: | -25 ~ +75 ℃ |
| Mounting: | DIN-rail |
Specifikationer
| CPU Module | |
|---|---|
| CPU | 32-bit CPU Core |
| EEPROM | 8 KB |
| Flash | 4 MB |
| SRAM | 32 MB |
| Watchdog Timer | CPU built-in |
| LED Indicators | |
| Status | PWR LED, S1A LED, S1B LED, S2A LED, S2B LED |
| Digital Input | |
| Channels | 16 |
| Type | Dry Contact |
| Sink/Source (NPN/PNP) | Source |
| ON Voltage Level | Close to GND |
| OFF Voltage Level | Open |
| Ethernet | |
| Services | ICMP, IGMP, ARP, DHCP, TELNET, TFTP, SNMP, VLAN Priority Tagging |
| PROFINET | |
| Conformance Classes | Class B |
| Services | RTC, RTA, CL-RPC, DCP, LLDP, I&M |
| Cycle Time | 1 ms (min) |
| Protocol | PROFINET IO Device |
| Power | |
| Consumption | 4 W |
| Mechanical | |
| Dimensions (mm) | 33 x 107 x 126 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 ℃ |
| Storage Temperature | -30 ~ +80 ℃ |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
