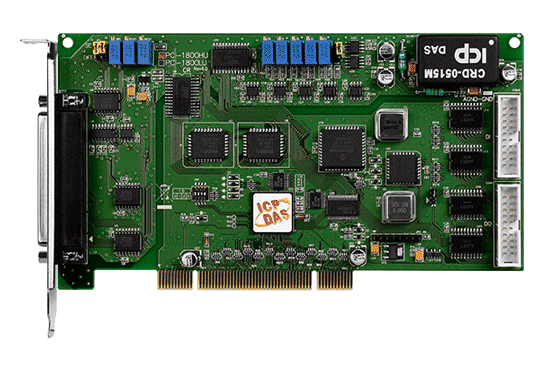

PCI-1800HU Universal PCI Multifunction Board, 44 kS/s 16-ch 12-bit AI
Universal PCI multifunction DAQ board with 16-channel 12-bit analog input at up to 44 kS/s, two analog outputs and 16 digital inputs and outputs at 5 V/TTL. Includes a CA-4002 D-Sub connector.
- Universal PCI interface compatible with 3.3 V and 5 V PCI bus
- 16 single-ended or 8 differential analog inputs, 12-bit, up to 44 kS/s
- MagicScan controller with per-channel gain codes during channel scan
- Software, pacer and external triggering, with post, pre and middle external trigger modes
- Two 12-bit analog outputs, bipolar ±5 V and ±10 V
- 16 DI and 16 DO channels at 5 V/TTL, with pull-high and pull-low jumpers for DI
7 046,56 kr per st.
| 1–9 st. | 7 046,56 kr | |
|---|---|---|
| 10–30 st. | 6 836,05 kr | −3 % |
| 31+ st. | 6 692,02 kr | −5 % |
Produktinformation "PCI-1800HU Universal PCI Multifunction Board, 44 kS/s 16-ch 12-bit AI"
PCI-1800HU CR is a universal PCI data acquisition board for engineers who need multichannel analog input alongside analog output and digital I/O in one slot. The card works with both 3.3 V and 5 V PCI buses and provides 16 single-ended or 8 differential analog input channels with a 12-bit converter running at up to 44 kS/s. This HU variant is the lower-speed member of the PCI-1800 series; the LU variant offers 330 kS/s.
The board includes two 12-bit analog outputs, 16 digital inputs and 16 digital outputs, all at 5 V/TTL levels. MagicScan, a built-in A/D scan controller, handles channel selection, gain setting, settling time, ADC triggering and data retrieval, and it can apply a different gain code to each channel during a channel scan. A Card ID switch lets software identify individual boards when two or more cards are fitted in one computer, and pull-high and pull-low jumpers set a defined DI state when inputs are unconnected or broken.
Software support covers Linux, DOS, Windows 98/NT/2000 and 32/64-bit Windows XP/2003/2008/Vista/7. The SDK includes DLLs, ActiveX controls and sample programs for several development environments, including Visual Basic, C#.NET and LabVIEW. The package includes one CA-4002 D-Sub connector.
Applications
- High speed data acquisition system
- Process monitor and control
- Vibration analysis
| Product type: | PCI multifunction DAQ board |
|---|---|
| Interface: | Universal PCI |
| Digital inputs: | 16 |
| Digital outputs: | 16 |
| Analog inputs: | 16 SE / 8 Diff |
| Analog outputs: | 2 |
| Operating temperature: | 0 ~ +60 °C |
Specifikationer
| Hardware | |
|---|---|
| Connector | Female DB37 x 1 Male 20-bit ribbon x 2 |
| Card ID | Yes (4-bit) |
| Analog Input | |
| Channels | 16 single-ended/8 differential |
| Range | Gain: 0.5, 1, 5, 10, 50, 100, 500, 1000 Bipolar Range: ±10 V, ±5 V, ±1 V, ±0.5 V, ±0.1V, ±0.05 V, ±0.01 V, ±0.005 V Unipolar Range: 0 ~ 10 V, 0 ~ 1 V, 0 ~ 0.1 V, 0 ~ 0.01 V |
| Resolution | 12-bit |
| Accuracy | 0.01% of FSR ±1 LSB @ 25 °C, ±10 V |
| Sampling Rate | PCI-1800LU：330 kS/s. Max. PCI-1800HU：44 kS/s. Max. |
| Input Impedance | 10 MΩ/6 pF |
| Overvoltage Protection | Continuous ±35 Vp-p |
| Zero Drift | ±2 ppm/°C of FSR |
| FIFO Size | 1024 samples |
| Trigger Mode | Software, Internal programmable pacer, External (5 V/TTL) |
| Data Transfer | Polling |
| Analog Output | |
| Channels | 2 |
| Range | Bipolar:±5 V, ±10 V |
| Resolution | 12-bit |
| Accuracy | 0.06% of FSR ± 1 LSB @ 25 °C, ± 10 V |
| Response Time | 1.0 MHz (Typical) |
| Voltage Output Capability | ±5 mA |
| Slew Rate | 8.33 V/μs |
| Operation Mode | Static Update |
| Digital Input | |
| Channels | 16 |
| Type | 5 V/TTL |
| ON Voltage Level | 2.0 V Min. |
| OFF Voltage Level | 0.8 V Max. |
| Response Speed | 1.0 MHz (Typical) |
| Trigger Mode | Static Update |
| Digital Output | |
| Channels | 16 |
| Type | 5 V/TTL |
| Operation Mode | Static Update |
| Load Voltage | Logic 0: 0.4 V Max. Logic 1: 2.4 V Min. |
| Load Current | Sink: 2.4 mA @ 0.8 V Source: 0.8 mA @ 2.0 V |
| Response Speed | 1.0 MHz (Typical) |
| Timer/Counter/Frequency | |
| Channels | 3 (Independent x 1/Internal pacer x 1/External pacer x 1) |
| Type | 5 V/TTL |
| Resolution | 16-bit |
| Input Frequency | 10 MHz Max. |
| Reference Clock | Internal: 8 MHz |
| PC Bus | |
| Type | 3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus | 16-bit |
| Power | |
| Consumption | 300 mA @ +5 V |
| Mechanical | |
| Dimensions (mm) | 105 x 200 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
