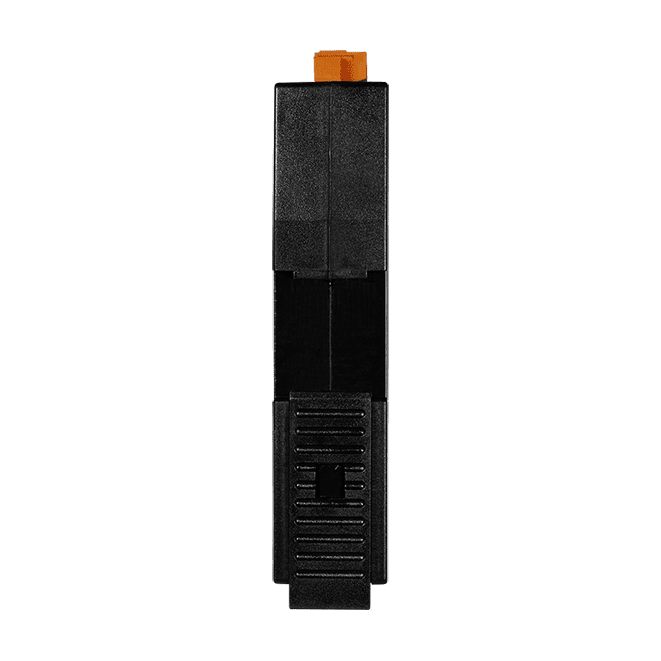

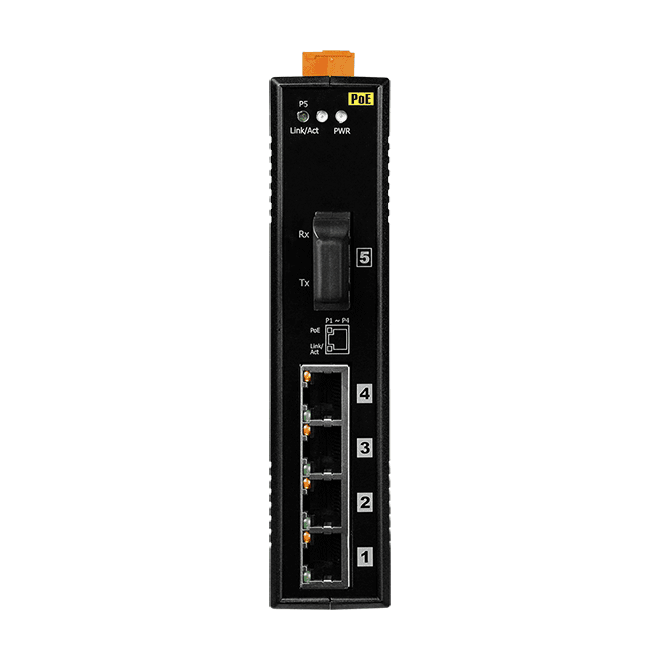

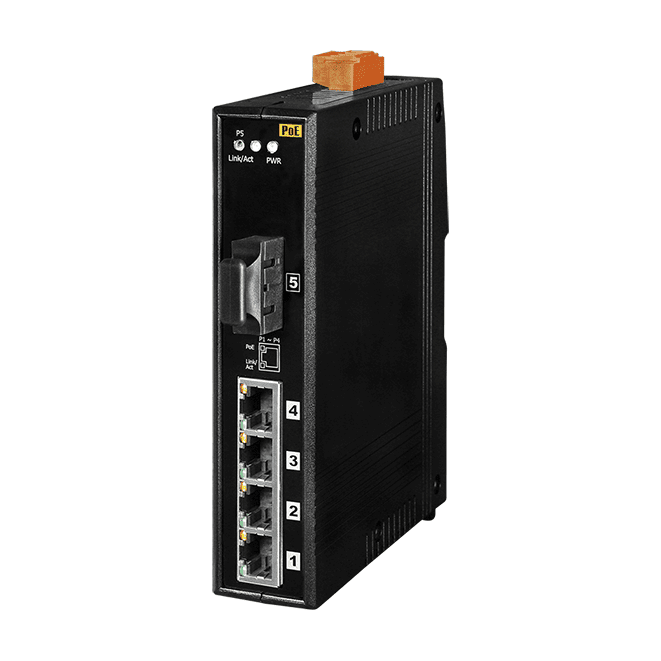

NS-205PFC PoE Ethernet Switch, 4-port PSE + 1 Multi-mode SC Fibre Port
Unmanaged 4-port 10/100 Mbps PoE (PSE) switch with one 100Base-FX multi-mode SC fibre port, delivering up to 15.4 W per port from a +46 to +55 VDC input.
- 4 x RJ-45 10/100Base-TX ports operating as PSE, 100% IEEE 802.3af compliant
- Up to 15.4 W per channel with automatic PD detection and power management
- 1 x 100Base-FX multi-mode SC fibre port, up to 2 km for full duplex
- Power input +46 ~ +55 VDC with reverse polarity protection
- 1500 Vrms isolation and store-and-forward wire-speed switching
- 1024-entry MAC table with IEEE 802.3x and back pressure flow control
2 548,29 kr per st.
| 1–9 st. | 2 548,29 kr | |
|---|---|---|
| 10–30 st. | 2 470,73 kr | −3 % |
| 31+ st. | 2 426,41 kr | −5 % |
Produktinformation "NS-205PFC PoE Ethernet Switch, 4-port PSE + 1 Multi-mode SC Fibre Port"
NS-205PFC CR is an unmanaged Ethernet switch that combines four RJ-45 10/100Base-TX ports, each operating as Power Sourcing Equipment (PSE), with a single 100Base-FX multi-mode fibre port. Power can be distributed centrally to connected powered devices, with automatic detection of PDs and automatic power management.
The SC fibre uplink supports high-speed 100 Mbps transmission over distances of up to 2 km for full duplex operation, with 62.5/125 μm fibre recommended. Because the link is optical, electrical noise is kept out of the connection, and the 1500 Vrms isolation rating adds further protection.
The CR variant is fitted with a +46 to +55 VDC power input, reverse polarity protection and DIN-rail mounting, and is rated for operation from -30 °C to +75 °C. It suits cabinet installations where a single supply must feed several PoE devices.
Applications
- Centralised PoE power distribution to powered devices in industrial cabinets
- Ethernet segments extended over multi-mode fibre links of up to 2 km
| Product type: | Ethernet switch |
|---|---|
| Interface: | RJ-45, SC fibre |
| Ports: | 4 x RJ-45 + 1 x SC |
| PoE: | PSE, 802.3af, 15.4 W per port |
| Isolation: | 1500 Vrms |
| Power input: | +46 ~ +55 VDC |
| Operating temperature: | -30 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifikationer
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ± 4 kV Contact |
| LED Indicators | |
| Status | Power, Link/Act, Power Device is detected |
| Ethernet | |
| Ports | 4 x RJ-45, 10/100Base-TX |
| Standards | IEEE 802.3, 802.3u, 802.3x ,802.3af (Power over Ethernet) |
| Processing Type | Store & forward; wire speed switching |
| MAC Table | 1024 |
| Memory Bandwidth | 3.2 Gbps |
| Frame Buffer Memory | 512 Kbit |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Isolation | 1500 Vrms 1 minute |
| PoE Technology | |
| PoE Compliance | 100% IEEE 802.3af compliant |
| PoE Power | Up to 15.4 watts per channel |
| PoE Operation | Automatic detection and power management |
| PoE Pin Assignments | V+ (Pin 1,2), V- (Pin 3,6) |
| PoE Disconnect Mode | DC disconnect |
| PoE Voltage | +48 VDC depending on power input |
| Fiber | |
| Ports | 1 x 100 Base-FX, SC connector |
| Mode | Multi-Mode |
| Fiber Cable | 50/125, 62.5/125 or 100/140 μm |
| Distance | 2 km, (62.5/125 μm recommended) for full duplex |
| Wavelength | 1300 or 1310nm |
| TX Output | -20 dBm Min. -14 dBm Max. |
| RX Sensitivity | -32 dBm |
| RX Overload | -8 dBm |
| Budget | 12 dBm |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +46 ~ +55 VDC for PoE output |
| Consumption | 0.08 A @ 48 VDC without PD loading; 1.5 A @ 48 VDC with PD full loading |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 31 x 157 x 113 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -30 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Humidity | 10% ~ 90% RH, non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
