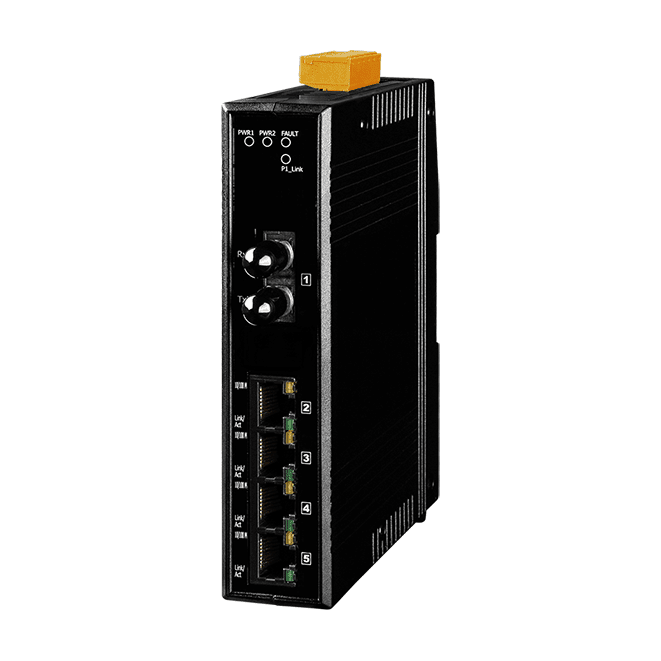

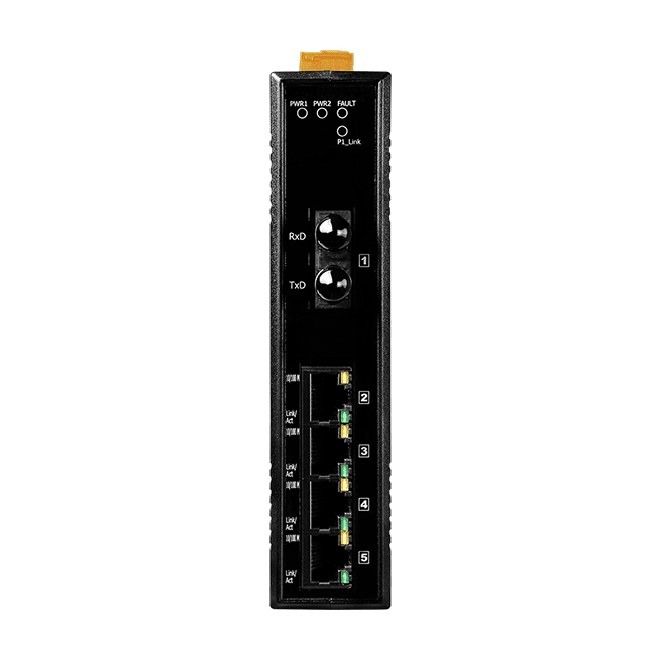

NS-205AFT-T Unmanaged Ethernet Switch, 4-port + 1 Multi-Mode ST Fibre
Unmanaged switch with four 10/100 Mbps RJ-45 ports and one 100Base-FX multi-mode ST fibre port for links up to 2 km, powered from +12 to +48 VDC with redundant inputs.
- Unmanaged switch with 4 x 10/100Base-TX RJ-45 ports and 1 x 100Base-FX multi-mode ST fibre port
- Fibre link up to 2 km, with 62.5/125 µm cable recommended for full duplex

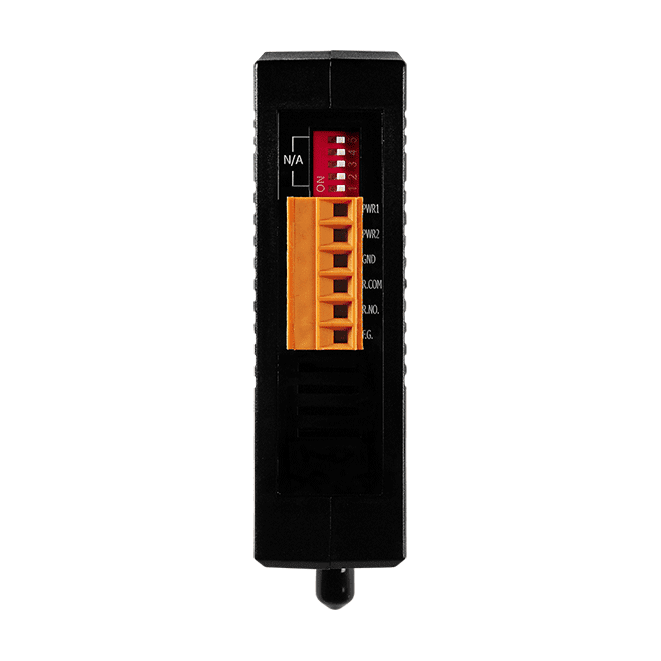

- Redundant +12 to +48 VDC power inputs with reverse polarity protection
- Relay alarm output rated 2 A @ 30 VDC, plus PWR, PWR_Fault, Link/Act and 10/100M LED indicators
- Broadcast storm protection
- 1500 Vrms isolation for 1 minute and IEEE 802.3x flow control
2 382,09 kr per st.
| 1–9 st. | 2 382,09 kr | |
|---|---|---|
| 10–30 st. | 2 304,54 kr | −3 % |
| 31+ st. | 2 260,22 kr | −5 % |
Produktinformation "NS-205AFT-T Unmanaged Ethernet Switch, 4-port + 1 Multi-Mode ST Fibre"
NS-205AFT-T is an unmanaged Ethernet switch that combines four 10/100Base-TX RJ-45 ports with a single 100Base-FX multi-mode fibre port fitted with an ST connector. The fibre uplink carries 100 Mbps over distances of up to 2 km, and because the link is optical, electrical noise on the plant floor does not couple into the signal path.
The unit accepts a wide +12 to +48 VDC supply through redundant power inputs, so it can run from the common DC voltages used in industrial automation without an external converter. Reverse polarity protection and a relay alarm output with a 2 A @ 30 VDC rating support straightforward power and fault monitoring. Broadcast storm protection is included.
Mounting is on a DIN rail. The housing is plastic and the specified operating range is -30 °C to +75 °C, with storage between -40 °C and +85 °C. For the fibre link, the datasheet recommends 62.5/125 µm cable for full-duplex operation.
Applications
- Industrial automation Ethernet networks
- Fibre-based links between industrial network segments
| Product type: | Unmanaged Ethernet switch |
|---|---|
| Interface: | RJ-45, ST fibre |
| Ports: | 4 x RJ-45 + 1 x ST |
| Isolation: | 1500 Vrms 1 min |
| Power input: | +12 ~ +48 VDC (redundant) |
| Operating temperature: | -30 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifikationer
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ± 4 kV Contact |
| LED Indicators | |
| Status | PWR1, PWR2, PWR_Fault, Link/Act, 10/100M |
| Ethernet | |
| Ports | 4 x RJ-45, 10/100Base-TX |
| Standards | IEEE 802.3, 802.3u, 802.3x |
| Processing Type | Store & forward |
| MAC Table | 2048 |
| Frame Buffer Memory | 1 Mbit |
| Flow Control | IEEE 802.3x flow control |
| Isolation | 1500 Vrms 1 minute |
| Fiber | |
| Ports | 1 x 100 Base-FX, ST connector |
| Mode | Multi-Mode |
| Fiber Cable | 50/125, 62.5/125 or 100/140 μm |
| Distance | 2 km, (62.5/125 μm recommended) for full duplex |
| Wavelength | 1300 or 1310nm |
| TX Output | -20 dBm Min. -14 dBm Max. |
| RX Sensitivity | -32 dBm |
| RX Overload | -8 dBm |
| Budget | 12 dBm |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +12 ~ +48 VDC (Redundant input) |
| Redundant Power Inputs | Yes |
| Consumption | 0.2 A @ 24 VDC |
| Alarm Output | Yes,Relay 2 A @ 30 VDC |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 31 x 157 x 123 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -30 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Humidity | 10% ~ 90% RH, non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
