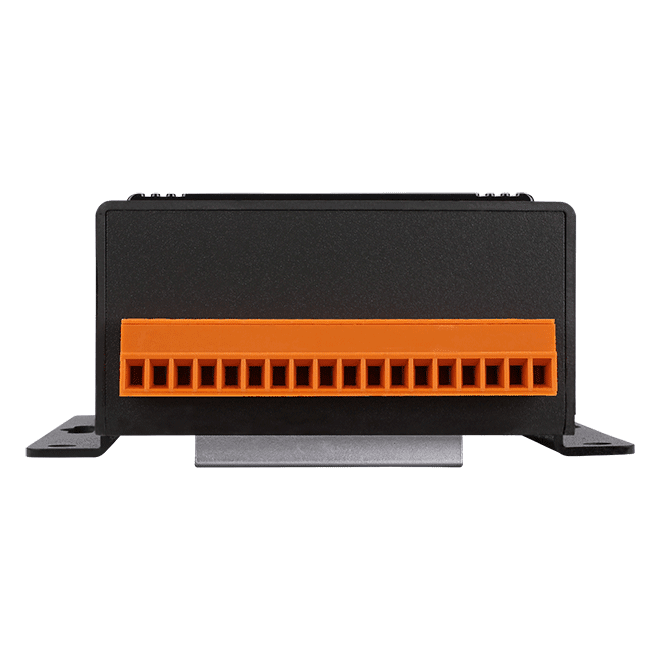

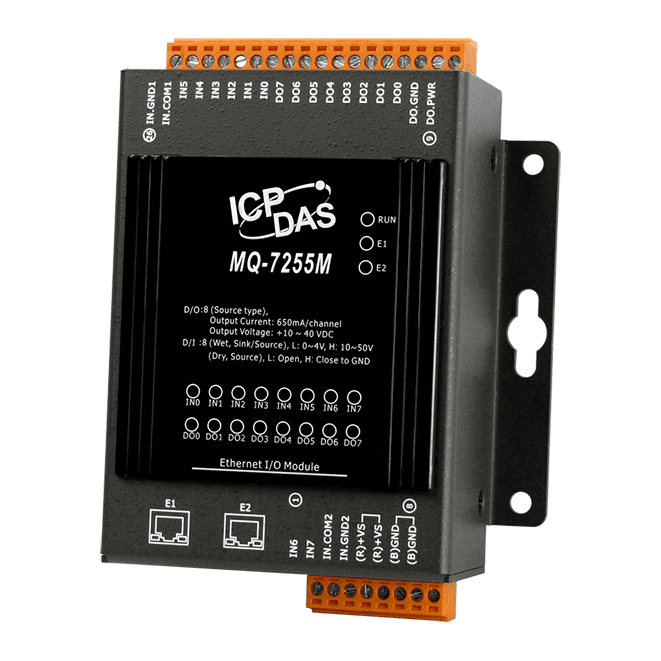

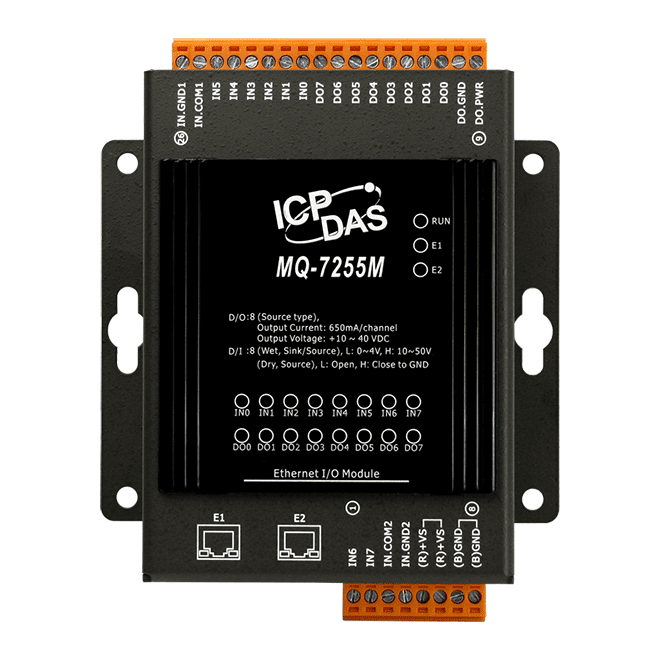

MQ-7255M MQTT I/O Module, 8-ch DI / 8-ch DO with 2-port Ethernet Switch
MQTT and Modbus TCP Ethernet I/O module with 8 digital inputs, 8 digital outputs and a 2-port switch for daisy-chain wiring. Suited to IIoT sensor connection.
- Publishes and receives I/O data over MQTT 3.1 and Modbus TCP
- 8 digital inputs supporting dry and wet contact signals
- 8 source-type digital outputs, up to 650 mA per channel at 25°C
- Built-in web server and web HMI for configuration, monitoring and output control
- 2-port 10/100 Base-TX switch with LAN bypass for daisy-chain wiring
- Programmable power-on and safe values for outputs, with short-circuit protection
2 902,83 kr per st.
| 1–9 st. | 2 902,83 kr | |
|---|---|---|
| 10–30 st. | 2 825,27 kr | −3 % |
| 31+ st. | 2 758,80 kr | −5 % |
Produktinformation "MQ-7255M MQTT I/O Module, 8-ch DI / 8-ch DO with 2-port Ethernet Switch"
The MQ-7255M is an Ethernet I/O module for IIoT installations that need to connect digital sensors and switches to a network using MQTT or Modbus TCP. It provides 8 digital inputs that accept both dry and wet contacts, and 8 digital outputs of the source type.
An integrated web interface lets you configure the module, check network and I/O status, and switch digital outputs from a standard browser on a computer or mobile device. The built-in 2-port switch with LAN bypass allows the module to be daisy-chained along a network run, which simplifies cabling in distributed installations.
Each output channel handles up to 650 mA at 25°C, with programmable power-on and safe values. The module offers optical isolation and dual watchdog protection, and is housed in a metal casing for DIN-rail or wall mounting. The MQ-7255M CR ordering code covers this RoHS-compliant configuration.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
| Product type: | Ethernet I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | Modbus TCP, MQTT 3.1 |
| Digital inputs: | 8 |
| Digital outputs: | 8 |
| Ports: | 2 |
| Isolation: | 1500 VDC |
| Power input: | +12 ~ +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Metal |
Specifikationer
| Software | |
|---|---|
| Built-in Web Server | Yes |
| CPU Module | |
| Watchdog Timer | Module, Communication (Programmable) |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±2 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal and ±8 kV Air for Random Point |
| Surge (IEC 61000-4-5) | ±2 kV for Power Line |
| LED Indicators | |
| Status | Run, Ethernet, I/O |
| Digital Input | |
| Channels | 8 |
| Type | Dry Contact Wet Contact |
| Sink/Source (NPN/PNP) | Dry: Source Wet: Sink/Source |
| ON Voltage Level | Dry: Close to GND Wet: +10 ~ +50 VDC |
| OFF Voltage Level | Dry: Open Wet: +4 VDC max. |
| Input Impedance | 10 kΩ |
| Overvoltage Protection | +70 VDC |
| Effective Distance | 500m max. |
| Digital Output | |
| Channels | 8 |
| Type | Isolated Open Collector |
| Sink/Source (NPN/PNP) | Source |
| Load Voltage | +10 ~ +40 VDC |
| Load Current | 650 mA/channel at 25°C |
| Overvoltage Protection | +47 VDC |
| Short-circuit Protection | Yes |
| Power on Value | Programmable |
| Safe Value | Programmable |
| Ethernet | |

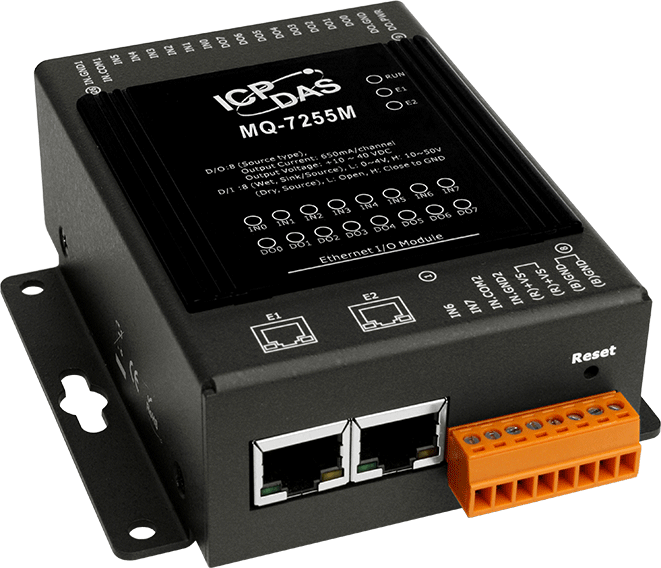

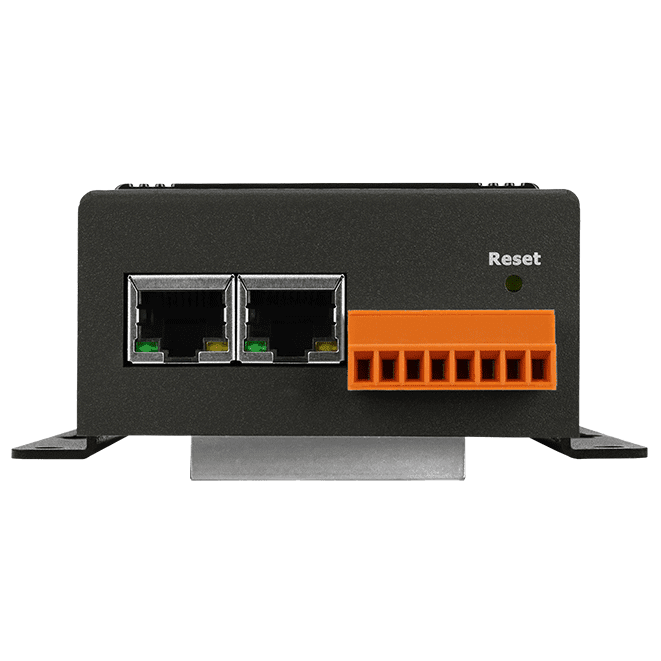

| Ports | 2 x RJ-45, 10/100 Base-TX, Switch Ports |
| LAN bypass | Yes |
| Protocol | MQTT 3.1 Modbus TCP |
| Isolation | 1500 VDC |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 3.9 W max. |
| Powered from Terminal Block | +12 ~ +48 VDC |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 97 x 120 x 42 (W x L x H) |

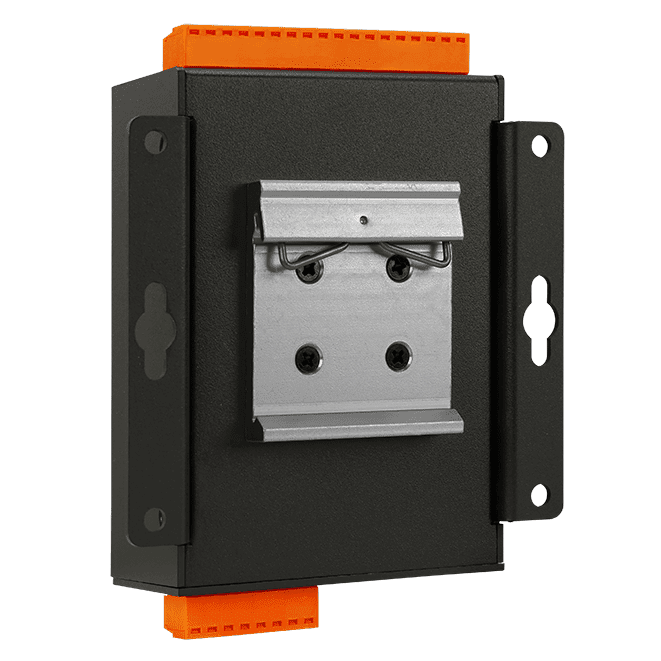

| Installation | DIN-Rail or Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
