MDC-714i Modbus Data Concentrator, Ethernet to 4 x RS-485 (3 Isolated)
Modbus data concentrator that brings RS-232 and RS-485 Modbus RTU devices onto Ethernet as Modbus TCP. Includes four RS-485 ports, three with 2500 VDC signal isolation.
- Modbus RTU master or slave on each COM port, with Modbus TCP slave on Ethernet
- One RS-232 port and four RS-485 ports, three with 2500 VDC signal isolation
- Up to 8 simultaneous Modbus TCP connections
- Data pool of up to 9600 registers and 250 polling definitions
- Each COM port has its own baud rate, data format and timeout settings
- Configuration by CSV file with HTML5 web-based import and export
4 908,22 kr per st.
| 1–9 st. | 4 908,22 kr | |
|---|---|---|
| 10–30 st. | 4 764,19 kr | −3 % |
| 31+ st. | 4 664,47 kr | −5 % |
Produktinformation "MDC-714i Modbus Data Concentrator, Ethernet to 4 x RS-485 (3 Isolated)"

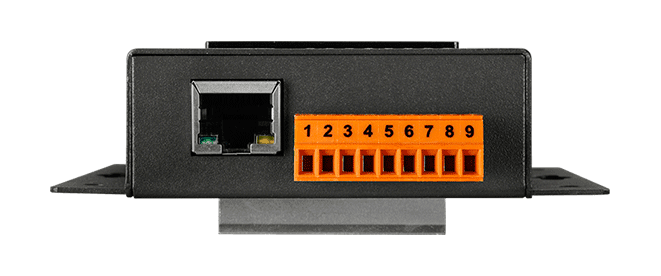

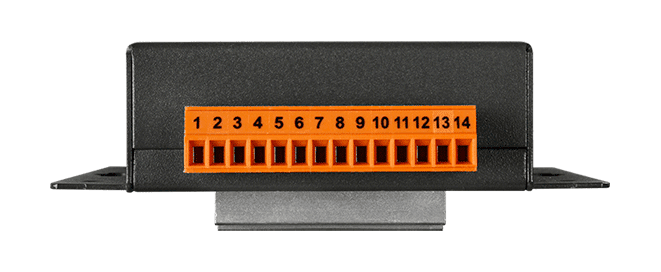

The MDC-714i CR gathers data from Modbus RTU devices on its serial ports and presents it to host systems over a single Ethernet connection. It provides one RS-232 port and four RS-485 ports, three of which are signal-isolated, so legacy serial devices can join an Ethernet network.
A user-defined command table lets the unit poll each COM port in turn and merge the results into a continuous address range, so a host can read or write data in bulk. Each port can be configured independently for baud rate, data format and timeout, and each can operate as a Modbus RTU master or slave. Write commands are queued with first priority to keep data updates fast.

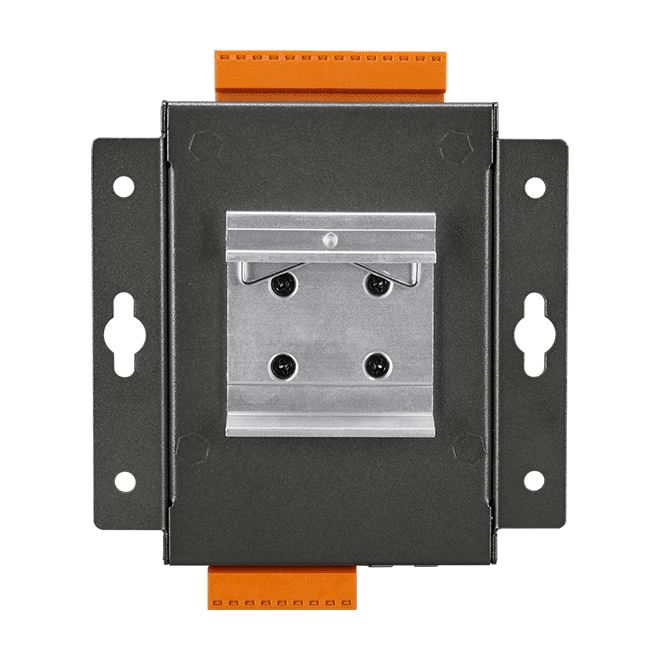

Configuration is handled through a simple CSV file and an HTML5 web interface, which supports import, export and start-up. Up to eight simultaneous Modbus TCP connections are supported. The metal casing is wall-mounted and rated for operation from -25 to +75 °C.
Applications
- Upgrading Modbus RTU devices to Ethernet-based systems
- Centralised data monitoring in SCADA applications
| Product type: | Modbus data concentrator |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | Modbus TCP |
| Ports: | 1 x Ethernet, 1 x RS-232, 4 x RS-485 |
| Isolation: | 3 x RS-485 (2500 VDC) |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | Wall |
| Housing: | Metal |
Specifikationer
| Display | |
|---|---|
| Type | 5 x Digit 7 Segment LED Display |
| LED Indicators | |
| Status | 1 x System, to display heart beat |
| Ethernet | |
| Ports | x1, 10/100 Base-TX |
| Protocol | Modbus/TCP Slave |
| COM Ports | |
| Ports | MDC-711: 1 x 5-wire RS-232, 1 x 2-wire RS-485 MDC-714: 1 x 5-wire RS-232, 4 x 2-wire RS-485 MDC-714i: 1 x 5-wire RS-232, 1 x 2-wire RS-485, 3 x 2-wire RS-485 (2500 VDC Signal Isolation) MDC-741: 4 x 5-wire RS-232, 1 x 2-wire RS-485 MDC-771: 1 x 5-wire RS-232, 6 x 3-wire RS-232, 1 x 2-wire RS-485 |
| Baud Rate | 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 |
| Data Format | N81, E81, O81 |
| Protocol | Modbus RTU Master/Modbus RTU Slave |
| Polling Definition | 250 definitions for all RS-232/485 ports |
| Shared Memory | 9600 registers for each of AI, AO, DI and DO data |
| Power | |
| Input Range | +10 VDC ~ +30 VDC (non-regulated) |
| Consumption | 2.5 W |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 102 mm x 125 mm x 28 mm (W x H x D) |
| Installation | Wall Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
