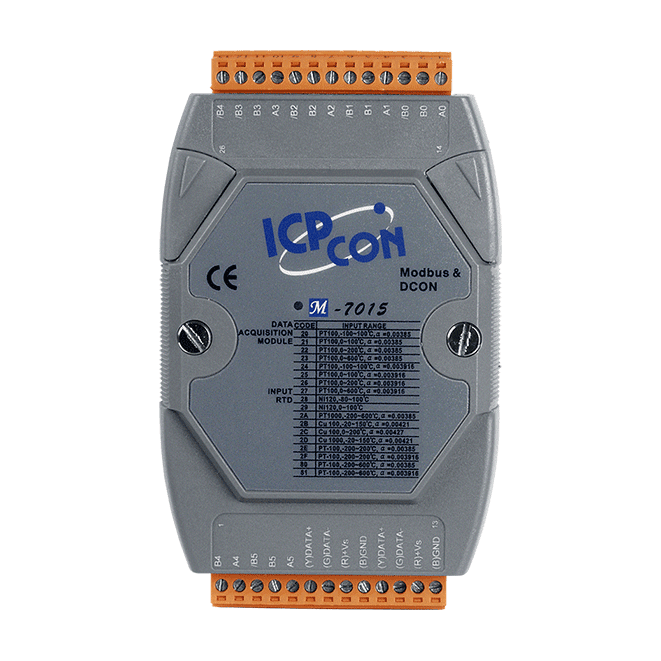

M-7015-G RTD Input Module, 6-ch 16-bit with Modbus RTU and DCON
6-channel RTD input module for Pt100, Pt1000, Ni120 and copper sensors, with 16-bit resolution, open wire detection and RS-485 communication over Modbus RTU or DCON. Gray cover.
- 6 RTD inputs with individual channel configuration for different sensor types
- 16-bit resolution and ±0.05% of FSR accuracy
- Open wire detection on each channel
- Built-in dual watchdog for module and communication
- 1 x RS-485 port supporting Modbus RTU and DCON
- 3000 VDC intra-module isolation and ±4 kV ESD contact protection
3 346,01 kr per st.
| 1–9 st. | 3 346,01 kr | |
|---|---|---|
| 10–30 st. | 3 246,29 kr | −3 % |
| 31+ st. | 3 179,82 kr | −5 % |
Produktinformation "M-7015-G RTD Input Module, 6-ch 16-bit with Modbus RTU and DCON"
M-7015-G CR is a 6-channel RTD input module for temperature measurement with RTD sensors. Each channel can be connected to a different sensor type and configured individually, which suits mixed-sensor panels and multi-point temperature monitoring on a single RS-485 bus.
The module offers 16-bit resolution with an accuracy of ±0.05% of FSR and a total sampling rate of 12 Hz. Open wire detection helps identify broken sensor leads, and the built-in dual watchdog covers both the module and communication. Protection features include 3000 VDC intra-module isolation, ±4 kV ESD contact protection on each terminal and reverse polarity protection on the power input.
- Supports Pt100, Pt1000, Ni120, Cu50, Cu100 and Cu1000 sensors
- Reads Modbus RTU and DCON protocols, configurable via software
- Baud rates from 1200 to 115200 bps with selectable data formats
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
| Product type: | RTD Input Module |
|---|---|
| Interface: | RS-485 |
| Protocol: | DCON, Modbus RTU |
| Analog inputs: | 6 |
| Ports: | 1 |
| Isolation: | 3000 VDC |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Gray cover |
Specifikationer
| CPU Module | |
|---|---|
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
| Intra-module Isolation | 3000 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal |
| LED Indicators | |
| Status | 1 x Power and Communication |
| Analog Input | |
| Channels | 6 |
| Type | RTD |
| Sensor Type | Pt100, Pt1000, Ni120, Cu50, Cu100, Cu1000 |
| Resistance Measurement | 3.2 kΩ max. |
| Resolution | 16-bit |
| Accuracy | ±0.05% of FSR |
| Sampling Rate | 12 Hz (Total) |
| Overvoltage Protection | 120 VDC |
| Individual Channel Configuration | Yes |
| Open Wire Detection | Yes |
| COM Ports | |
| Ports | 1 x RS-485 |
| Baud Rate | 1200 ~ 115200 bps |
| Data Format | (N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1) |
| Protocol | Modbus RTU, DCON |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ +30 VDC |
| Consumption | 1.1 W |
| Mechanical | |
| Dimensions (mm) | 72 x 123 x 35 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
