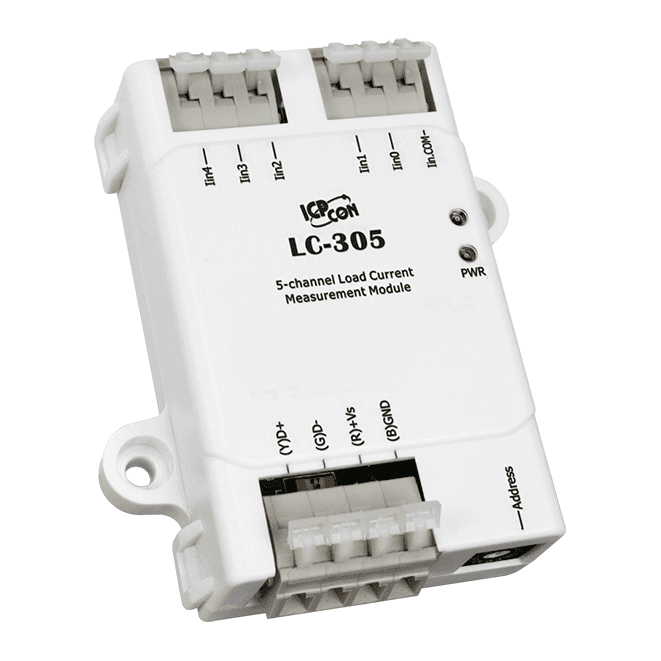

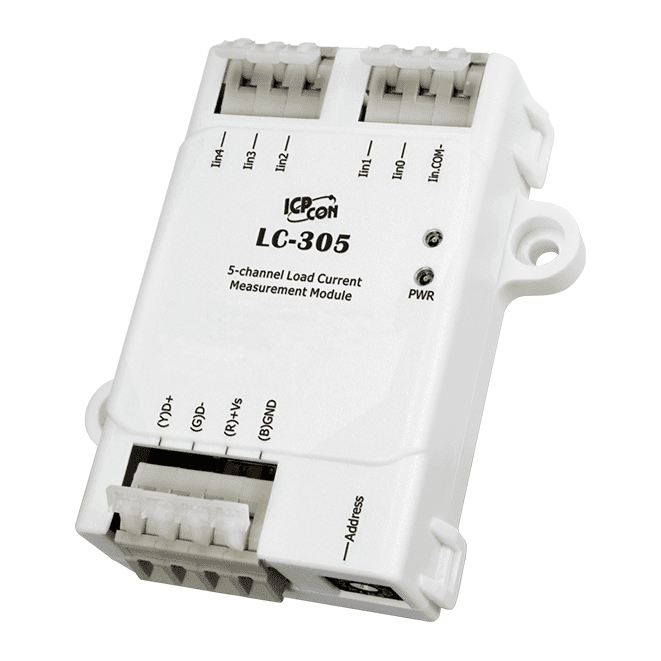

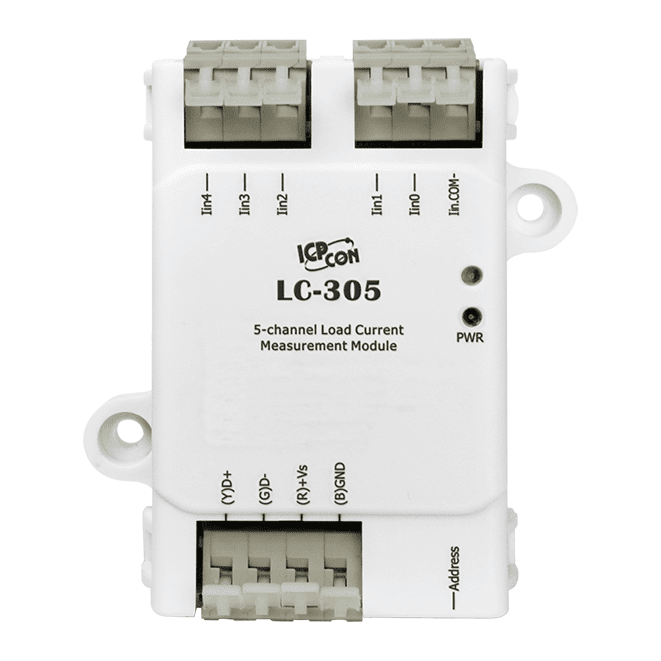

LC-305/DIN 5-Channel AC Load Current Measurement Module, DIN-Rail
DIN-rail 5-channel AC load current measurement module with RS-485 Modbus RTU or DCON, 0 ~ 5 A inputs and 3% of FSR accuracy, for monitoring lighting loads.
- 5-channel AC load current measurement with 0 ~ 5 A input range
- Load current measurement accuracy of 3% of FSR
- RS-485 with Modbus RTU or DCON protocol support
- Different addresses can be set via hardware configuration
- Dual watchdog for operational reliability
- Compact 70 x 83 x 29 mm housing with DIN-rail mounting
1 096,87 kr per st.
| 1–9 st. | 1 096,87 kr | |
|---|---|---|
| 10–30 st. | 1 063,63 kr | −3 % |
| 31+ st. | 1 041,47 kr | −5 % |
Produktinformation "LC-305/DIN 5-Channel AC Load Current Measurement Module, DIN-Rail"
The LC-305/DIN CR measures the load current of five AC lighting circuits and reports the readings over RS-485. It suits lighting control installations where engineers need to see whether each lamp is operating normally, rather than discovering a failure on site.
Current readings can be used to spot a lamp that is starting to fade and needs replacing, or a relay whose contacts may be becoming sticky from carbon build-up. Communication uses Modbus RTU or DCON, and different addresses can be set through hardware configuration. This DIN-rail variant is supplied for rail mounting, with a dual watchdog and 2000 VDC intra-module isolation.
- 5 AC current inputs, 0 ~ 5 A, single ended, 50/60 Hz
- Load current measurement accuracy of 3% of FSR
- RS-485 port supporting Modbus RTU or DCON, 1200 ~ 115200 bps
- Hardware-set addresses for multi-module networks
- 10 ~ 30 VDC input with reverse polarity protection
- Operating range -25 ~ +75 °C
Applications
- Lighting control: lamp failure and fading detection
- Relay contact health monitoring in lighting circuits
- Load current monitoring over RS-485 networks
| Product type: | AC load current measurement module |
|---|---|
| Interface: | RS-485 |
| Protocol: | DCON, Modbus RTU |
| Analog inputs: | 5 |
| Ports: | 1 |
| Isolation: | 2000 VDC |
| Power input: | 10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifikationer
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | ±4 kV for power and communication |
| ESD (IEC 61000-4-2) | ±4 kV contact for each terminal |
| LED Indicators | |
| Status | 1 LED as Power Indicator |
| AC Current Input | |
| Channels | 5 |
| Wiring | Single ended |
| Accuracy | 3% of FSR |
| Frequency | 50/60 Hz |
| Current | 0 ~ 5 A |
| Max. Load Current | 10 A/Module COM point Max. Single Load Current 5 A at 25°C |
| Data Update Rate | 1 Second |
| COM Ports | |
| Ports | 1 x RS-485 |
| Baud Rate | 1200 ~ 115200 bps |
| Data Format | (N, 8, 1), (N, 8, 2), (E, 8, 1), (O, 8, 1) |
| Protocol | Modbus RTU or DCON |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | 10 ~ 30 VDC |
| Consumption | 0.7 W Max. |
| Mechanical | |
| Dimensions (mm) | 70 x 83 x 29 (W x L x H) |
| Installation | Screw Mounting/DIN Rail mount |
| Environment | |
| Operating Temperature | -25 ~ +75°C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
