ISO-813/S ISA Bus 32-ch 12-bit Bus Isolated Analogue Input Board
ISA bus data acquisition board with 32 single-ended analogue inputs, 12-bit resolution, 10 kS/s maximum sampling rate and 3000 Vrms bus isolation for PC/AT systems.
- 32 single-ended analogue input channels with 12-bit A/D conversion
- Maximum sampling rate of 10 kS/s, using software trigger and polling transfer
- 3000 Vrms bus isolation with built-in DC/DC converter
- Programmable gain of 0.5, 1, 2, 4, 8 and 16
- Selectable bipolar ranges from ±10 V to ±0.625 V and unipolar ranges from 0 ~ 10 V to 0 ~ 0.3125 V
- ISA bus with 8-bit data bus, female DB37 connector
3 379,25 kr per st.
| 1–9 st. | 3 379,25 kr | |
|---|---|---|
| 10–30 st. | 3 279,53 kr | −3 % |
| 31+ st. | 3 213,06 kr | −5 % |
Produktinformation "ISO-813/S ISA Bus 32-ch 12-bit Bus Isolated Analogue Input Board"

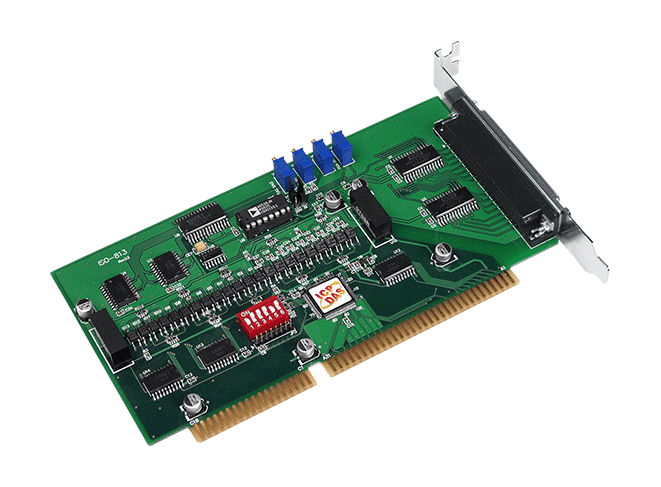

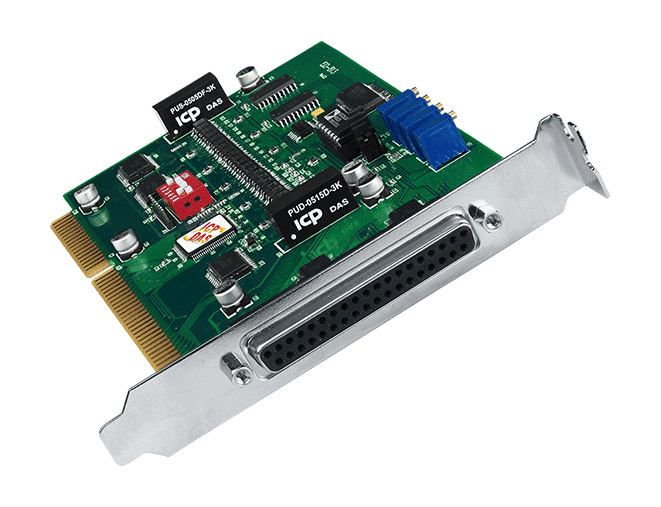

The ISO-813/S CR is a bus-type, isolated 12-bit analogue input board for PC/AT compatible computers. It provides 32 single-ended channels, programmable gain and software-triggered polled acquisition, making it suited to engineers adding isolated analogue measurement to an ISA-based system.
Isolation is rated at 3000 Vrms through a built-in DC/DC converter, which protects the host computer from the signal side in electrically noisy or demanding environments. Input ranges run from ±10 V down to ±0.625 V bipolar and 0 ~ 10 V down to 0 ~ 0.3125 V unipolar, with gains from 0.5 to 16. The board is backward compatible with the 813 family.
This /S variant is supplied with a DB-8325 terminal board and a CA-3710 D-Sub cable, according to the price list. Operating temperature is 0 ~ +60 °C, with storage between -20 and +70 °C and humidity of 5 to 85% RH, non-condensing.
Applications
- Programmable voltage source
- Programmable current sink
- Harsh environment operation
- Process control
| Product type: | DAQ board |
|---|---|
| Interface: | ISA bus |
| Analog inputs: | 32 |
| Isolation: | 3000 Vrms |
| Power input: | +5 V |
| Operating temperature: | 0 ~ +60 °C |
Specifikationer
| Hardware | |
|---|---|
| Connector | Female DB37 x 1 |
| Analog Input | |
| Channels | 32 single-ended |
| Range | Gain: 0.5,1, 2, 4, 8, 16 Bipolar Range: ±10 V, ±5 V, ±2.5 V, ±1.25 V, ±0.625V Unipolar Range: 0 ~ 10 V, 0 ~ 5 V, 0 ~ 2.5 V, 0 ~ 1.25 V, 0 ~ 0.625 V, 0 ~ 0.3125 V |
| Resolution | 12-bit |
| Accuracy | 0.01% of FSR ±1 LSB @ 25 °C, ± 10 V |
| Sampling Rate | 10 kS/s. Max. |
| Input Impedance | 10 MΩ/6 Pf |
| Overvoltage Protection | Continuous ±35 Vp-p |
| Zero Drift | ±25 ppm/°C of FSR |
| Trigger Mode | Software |
| Isolation | 3000 Vrms (Bus Type) |
| Data Transfer | Polling |
| PC Bus | |
| Type | ISA |
| Data Bus | 8-bit |
| Power | |
| Consumption | 850 mA @ +5 V |
| Mechanical | |
| Dimensions (mm) | 96 x 174 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
