IR-712A-5 Universal IR Learning Module, 2x IR Output, RS-232/RS-485
Universal IR learning and remote module with 2 IR outputs, 224-command capacity and Modbus RTU control over RS-232 or RS-485. Supplied with 2x CA-IR-SH2251-5 emitter cables.
- Two IR output channels plus one IR learning input, for individual or simultaneous control of multiple devices
- Command capacity of 224 IR commands, stored in the module or saved to a file
- Learns IR carrier frequencies of 33, 36, 37, 38, 40 and 56 kHz
- RS-232 and RS-485 serial interfaces with Modbus RTU slave protocol and DCON ASCII string commands
- Serial baud rates from 9600 to 115200 bps

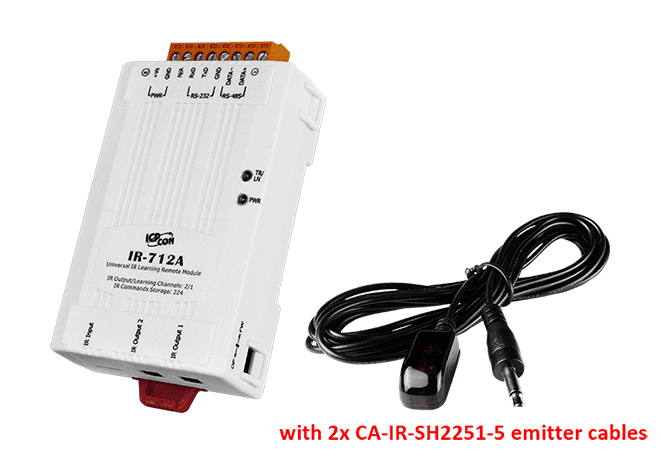

- Includes 2x CA-IR-SH2251-5 emitter cables with 125% of the remote control range of CA-IR-SH2251
1 373,86 kr per st.
| 1–9 st. | 1 373,86 kr | |
|---|---|---|
| 10–30 st. | 1 340,62 kr | −2 % |
| 31+ st. | 1 307,38 kr | −5 % |
Produktinformation "IR-712A-5 Universal IR Learning Module, 2x IR Output, RS-232/RS-485"

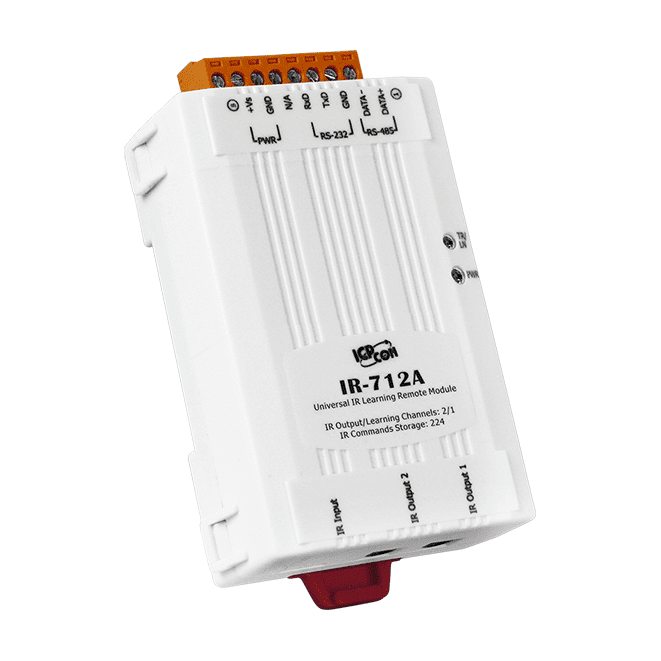

IR-712A-5 is a universal IR learning module that captures the remote control commands of a wide range of electronic devices and replays them through two IR output channels. Each channel can drive a device on its own, or both can be triggered together, which suits multi-device control in rooms and building installations.
Learned commands can be stored in the module or saved to a file. The module connects to a Modbus master such as a PAC, PLC or PC over RS-232 or RS-485, and also accepts DCON ASCII string commands. The bundled software utility and PC API library cover configuration, learning, testing and storage of IR commands.
The module mounts on DIN-rail and operates from -25 ~ +75 °C. The two CA-IR-SH2251-5 emitter cables supplied give a remote control range of 125% of the standard CA-IR-SH2251 cable.
Applications
- Home Entertainment Devices
- Video Conferencing System
- Surveillance System
- e-Classroom service
- Lighting Scenario Control
- Home and Building Automation
- ICP DAS PAC with the IR Remote Application
| Product type: | IR learning module |
|---|---|
| Interface: | RS-232, RS-485 |
| Protocol: | Modbus RTU |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifikationer

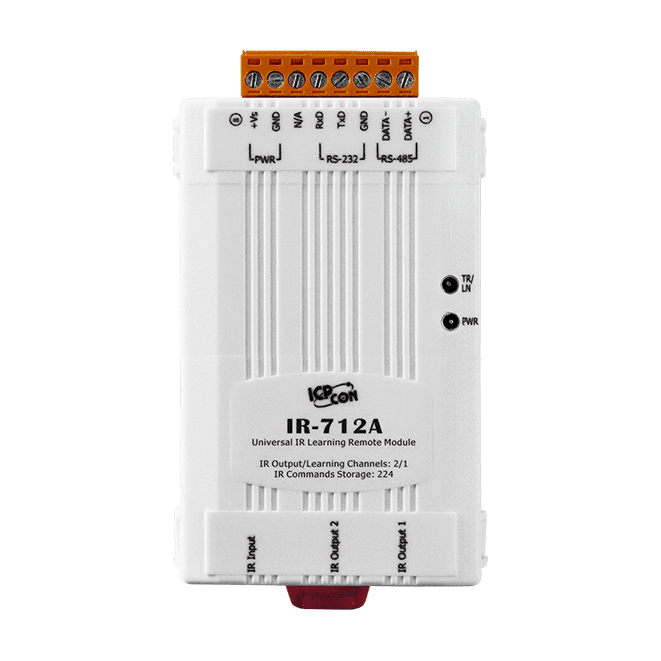

| LED Indicators | |
|---|---|
| Status | 1 x TR/LN (IR Transmitting/Learning) 1 x PWR (Power) |
| Infrared | |
| IR Learning Input | 1 channel. Supports 6 IR carrier frequencies: 33, 36, 37, 38, 40, 56 kHz. |
| IR Output Channels | 2 channels with 3.5 mm audio jack |
| IR Remote Commands | Capacity: 224 |
| COM Ports | |
| Ports | RS-232 (TxD, RxD, GND) RS-485 (DATA+, DATA-) |
| Baud Rate | 9600, 19200, 38400, 57600, 115200 bps |
| Protocol | Modbus RTU Slave |
| Power | |
| Consumption | Stand By: 0.6W Using 1 IR output: 2.3W Using 2 IR Outputs: 4 W (Max.) |
| Mechanical | |
| Dimensions (mm) | 52 x 27 x 93 (W x L x H) |
| Installation | DIN-Rail mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
