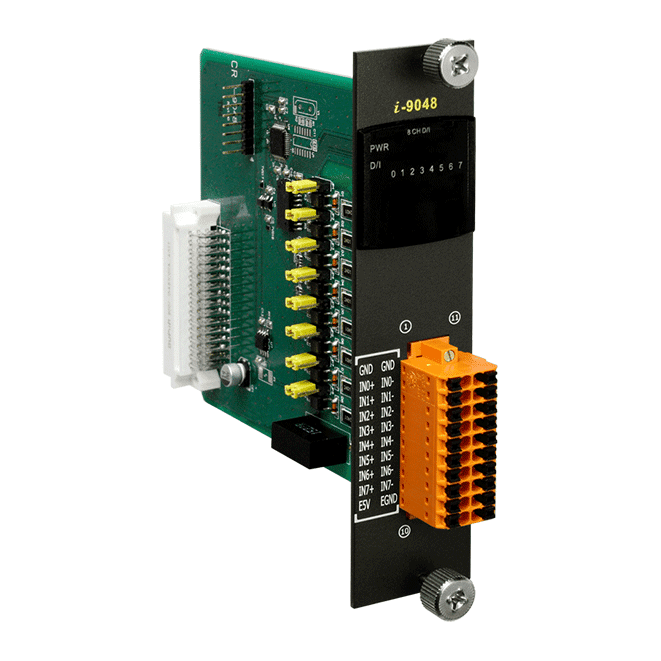

I-9048 8-ch Digital Input Module with Interrupt, Dry and Wet Contact
8-channel digital input module with hardware interrupts for real-time applications. Accepts dry and wet contact inputs and can trigger on rising, falling or both edges.
- 8 digital input channels with programmable interrupt capability
- Interrupts on falling edge, rising edge or both edges
- Dry and wet contact input types with sink/source operation
- Isolated or non-isolated TTL input, selectable by jumper
- 1500 VDC intra-module isolation
- Channel status LEDs plus power and communication indicator
1 684,08 kr per st.
| 1–9 st. | 1 684,08 kr | |
|---|---|---|
| 10–30 st. | 1 628,69 kr | −3 % |
| 31+ st. | 1 595,45 kr | −5 % |
Produktinformation "I-9048 8-ch Digital Input Module with Interrupt, Dry and Wet Contact"

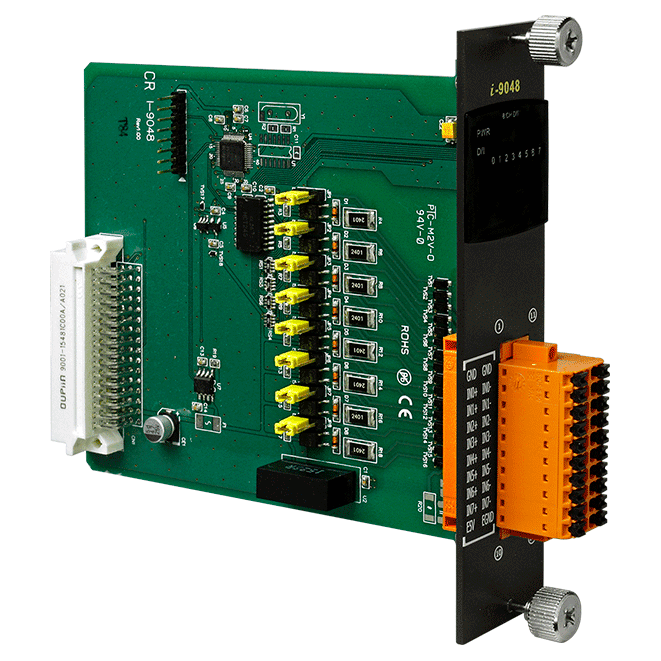

The I-9048 is an 8-channel digital input module from the I-9K/I-97K PAC I/O range. Each channel can be set up as an interrupt input, so the controller can respond to a change of state in real time rather than polling the inputs.
Interrupts can be programmed on falling edges, rising edges or both. Each input can be jumpered for isolated or non-isolated TTL operation, and the module accepts both dry and wet contact signals. Channel status and power/communication LEDs assist with commissioning and fault finding. The module is restricted to slots 0 to 3 of the backplane.
Key electrical and environmental data include 1500 VDC intra-module isolation, ESD protection of ±4 kV contact and ±8 kV air, power consumption of 1.75 W max., and an operating range of -25 ~ +75 °C. The module is CE, UKCA, FCC, RoHS and WEEE listed according to the source data.
Applications
- Real-time system applications requiring hardware interrupt input
- Event and state-change detection on digital input channels in PAC I/O systems
| Product type: | Digital input module |
|---|---|
| Digital inputs: | 8 |
| Isolation: | 1500 VDC |
| Operating temperature: | -25 ~ +75 °C |
Specifikationer
| Isolation | |
|---|---|
| Intra-module Isolation | 1500 VDC |
| EMS Protection | |
| ESD (IEC 61000-4-2) | ±4 kV Contact for each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
| Status | 1 x Power and Communication 8 x DI |
| Digital Input | |
| Channels | 8 |
| Type | Dry Contact Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| Input Impedance | 2.4 KΩ, 0.5 W |
| Power | |
| Consumption | 1.75 W Max. |
| Mechanical | |
| Dimensions (mm) | 31 x 134 x 144 (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
